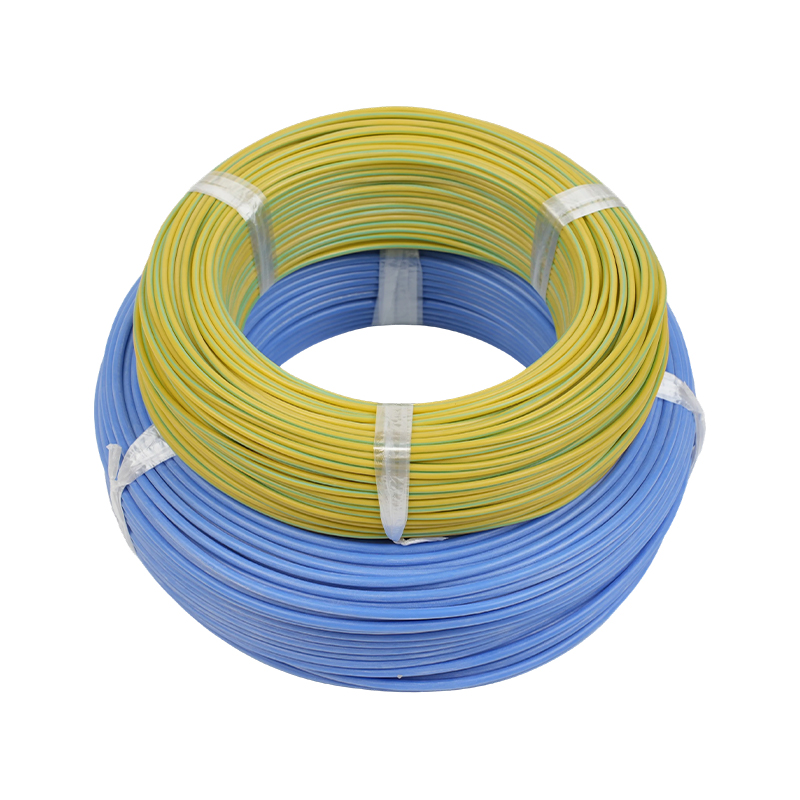

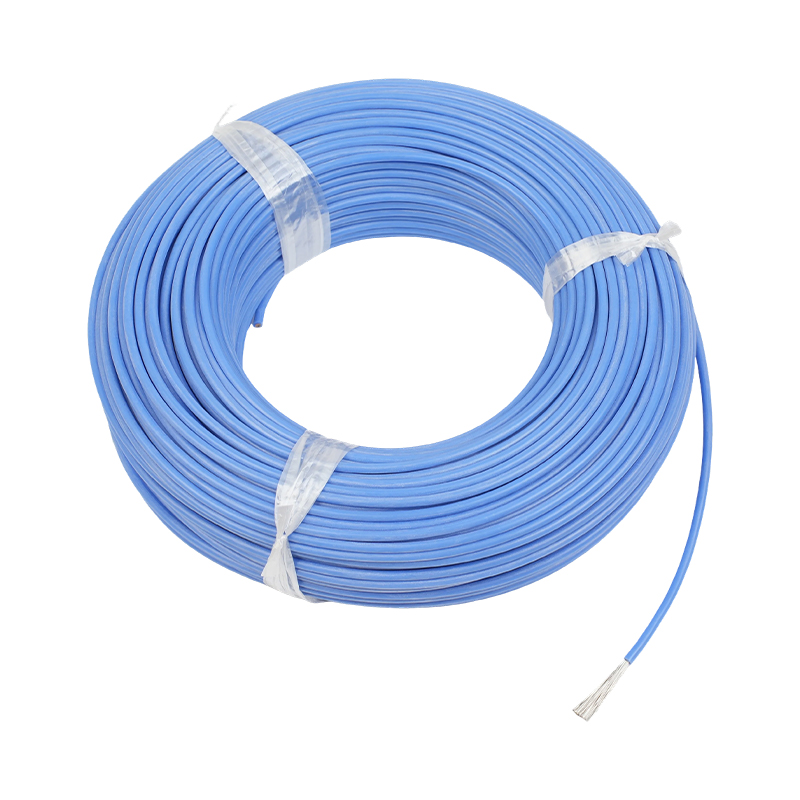

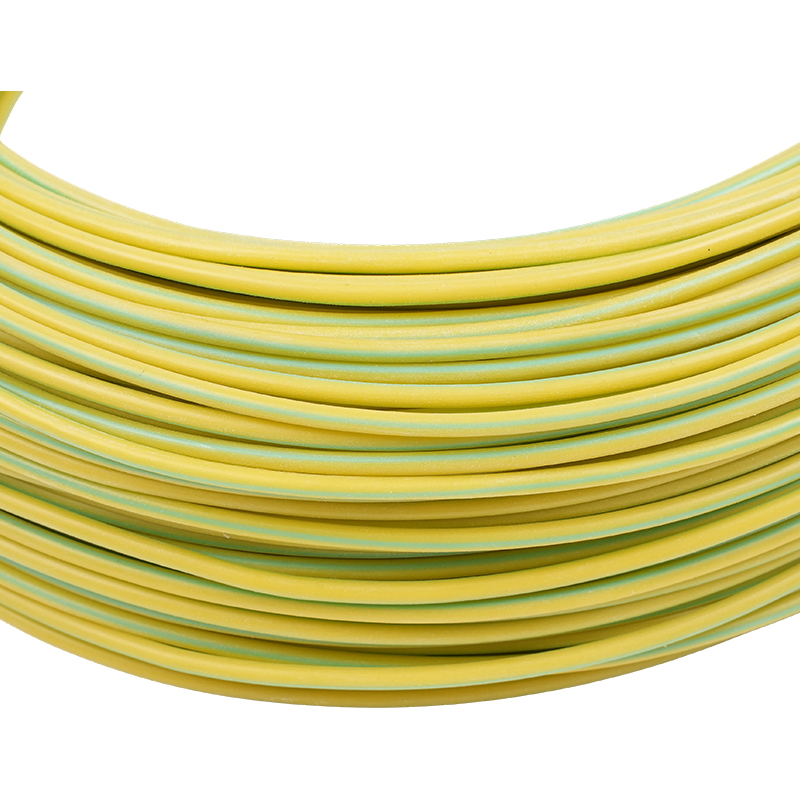

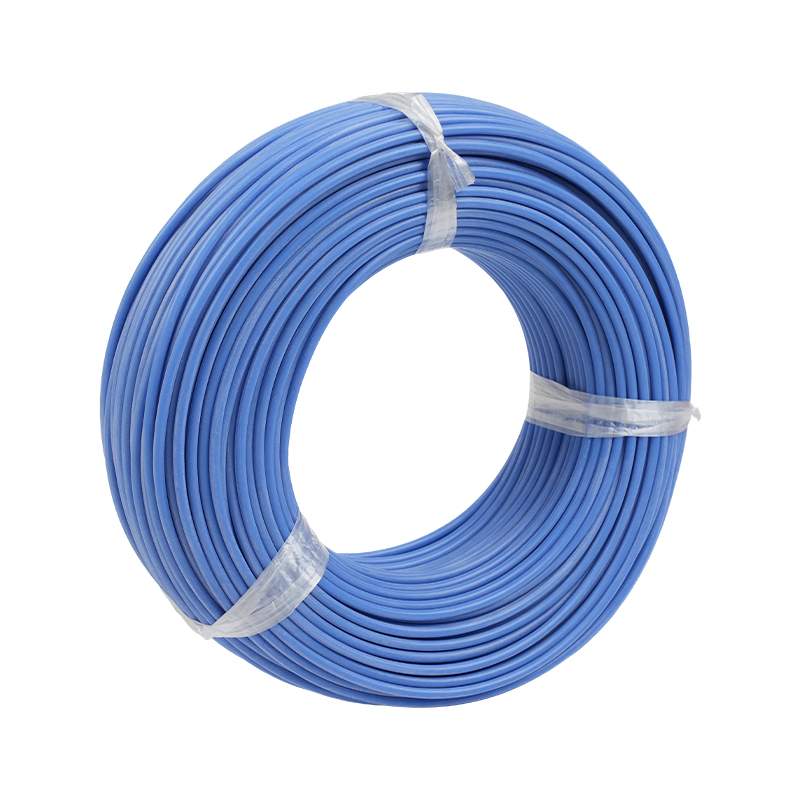

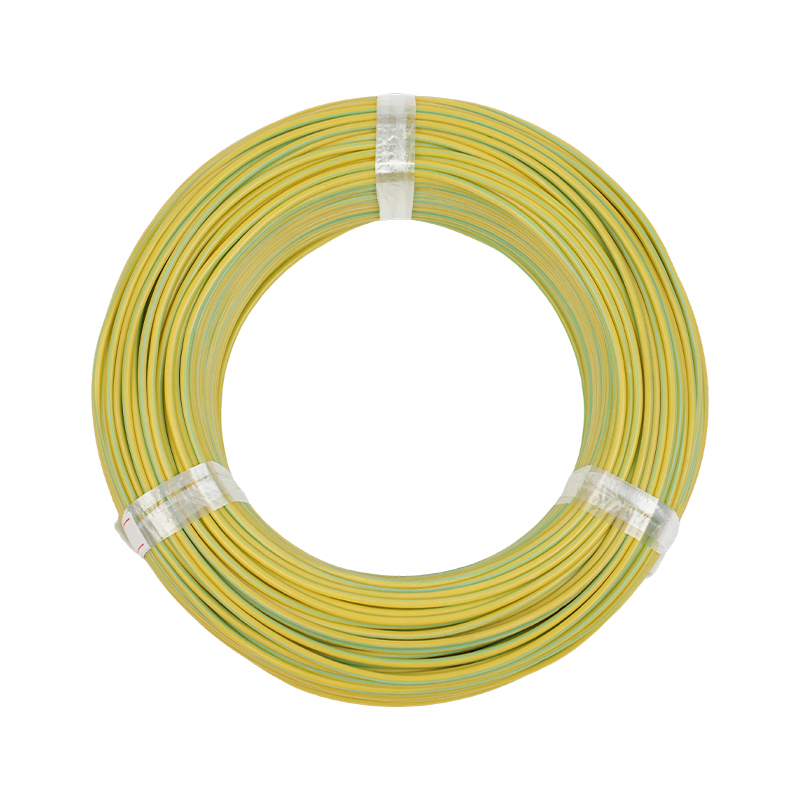

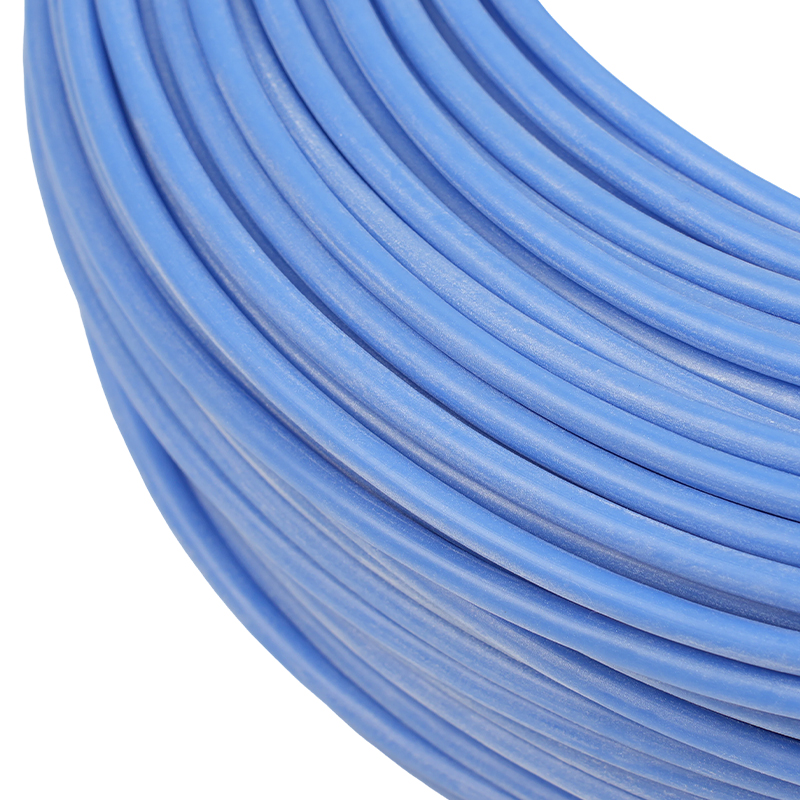

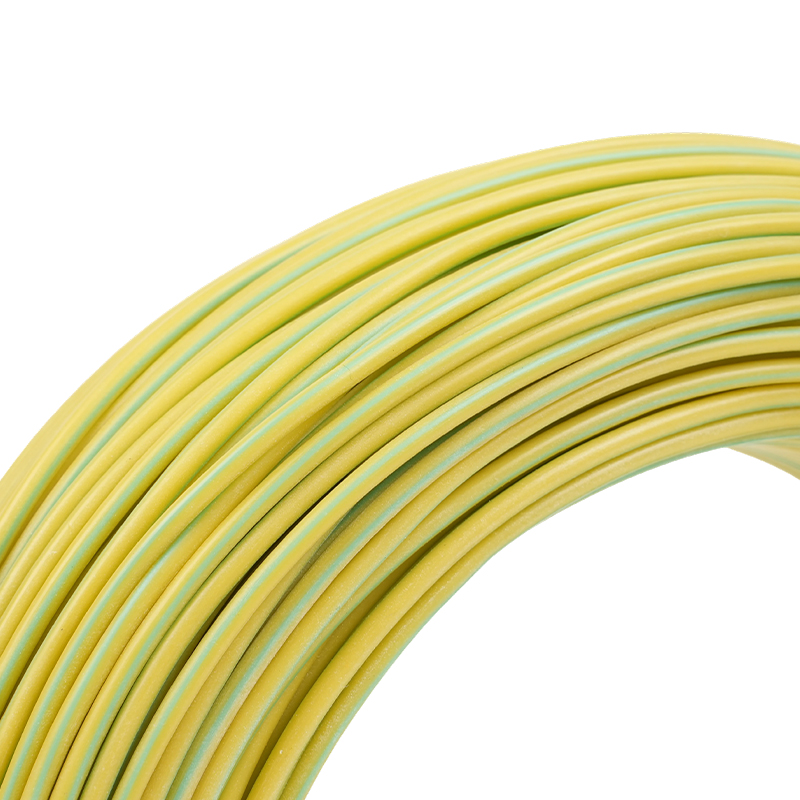

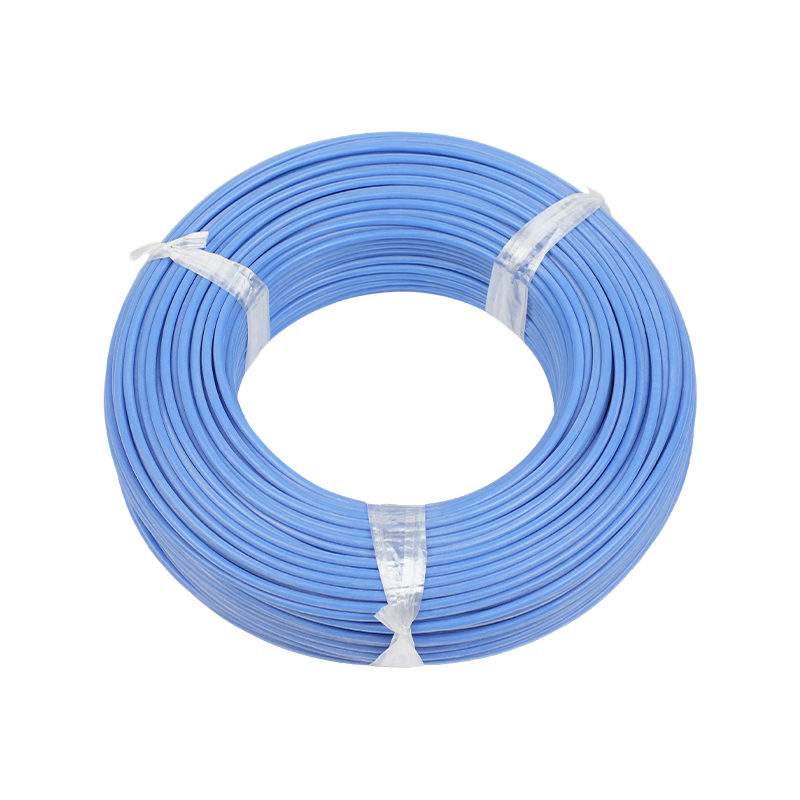

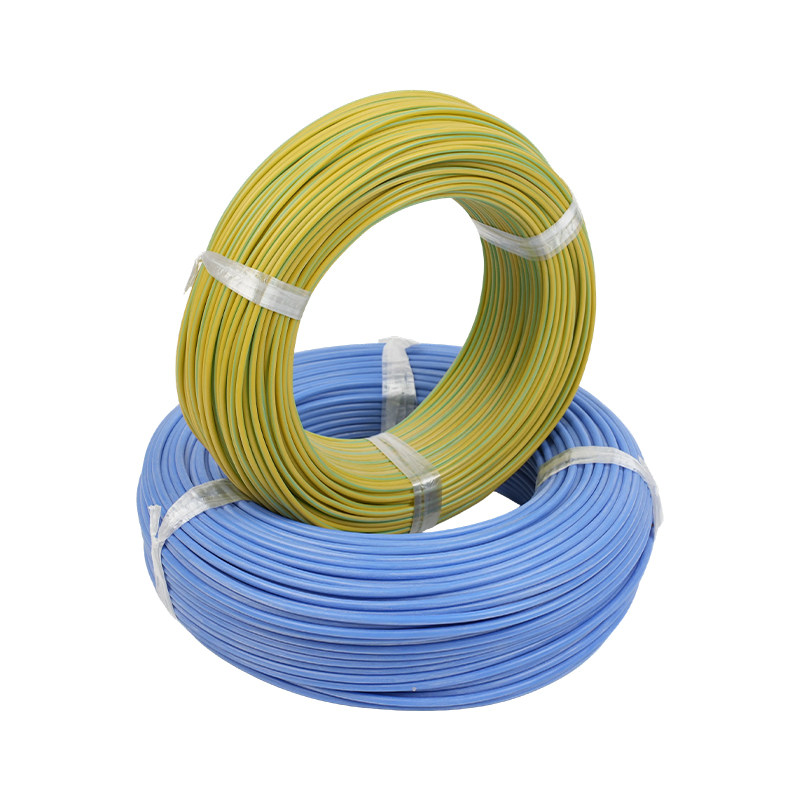

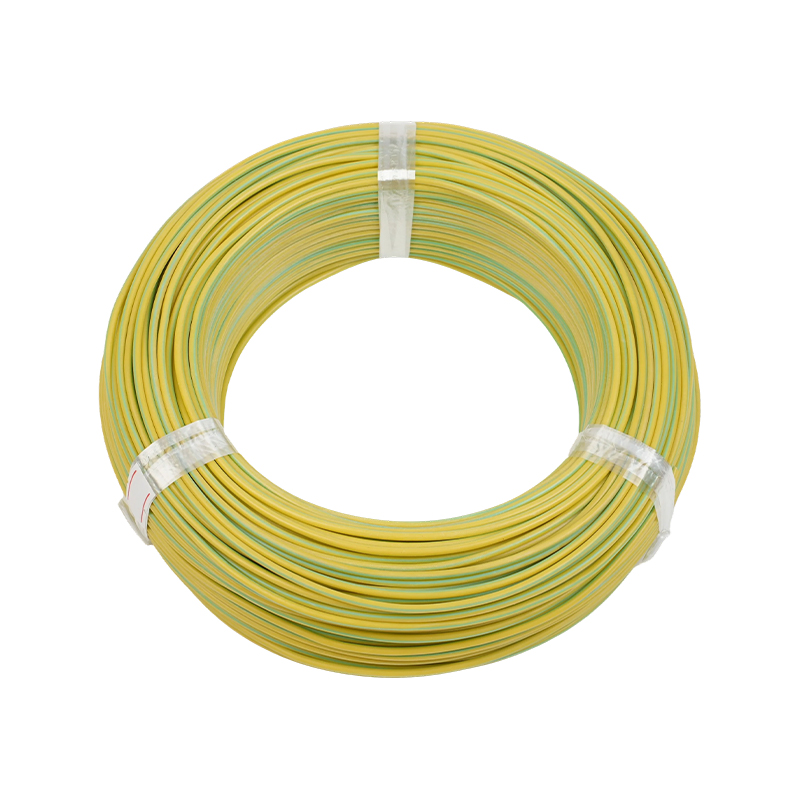

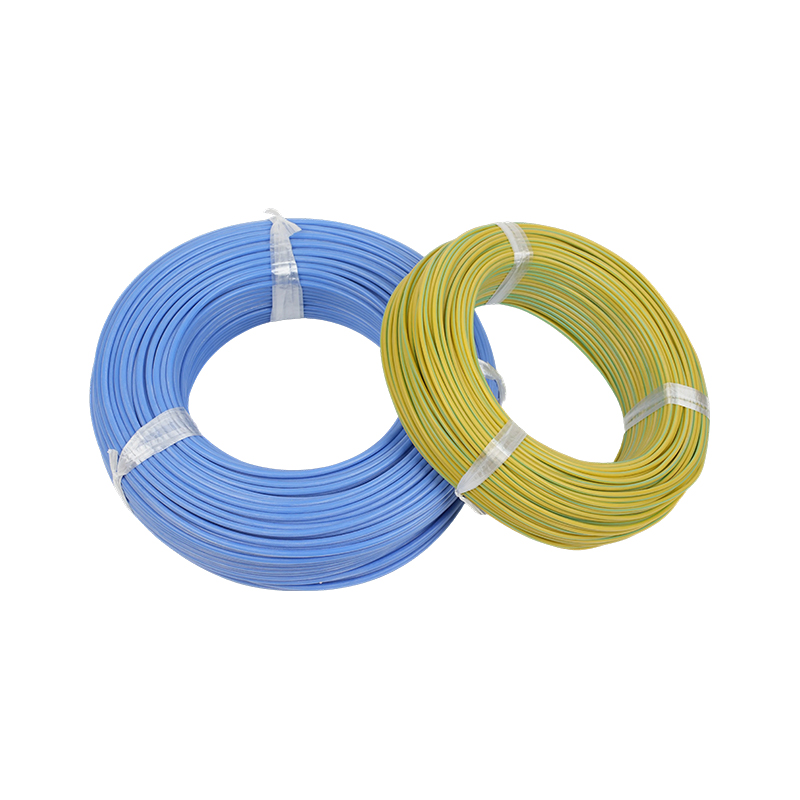

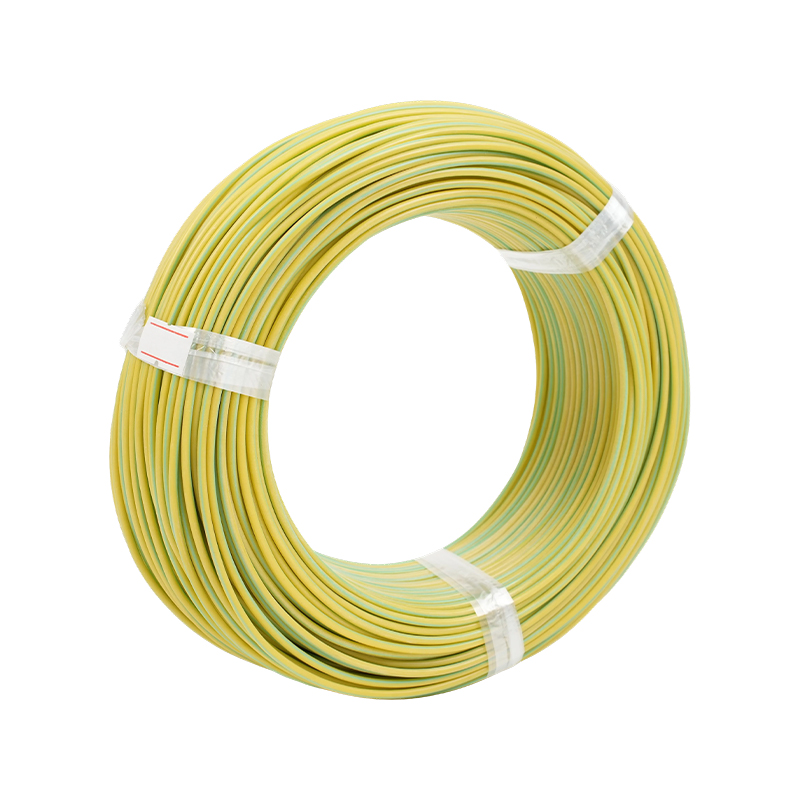

AGR Silicone Rubber Wire

Manufacturing Process:
Insulator: Silicone rubber

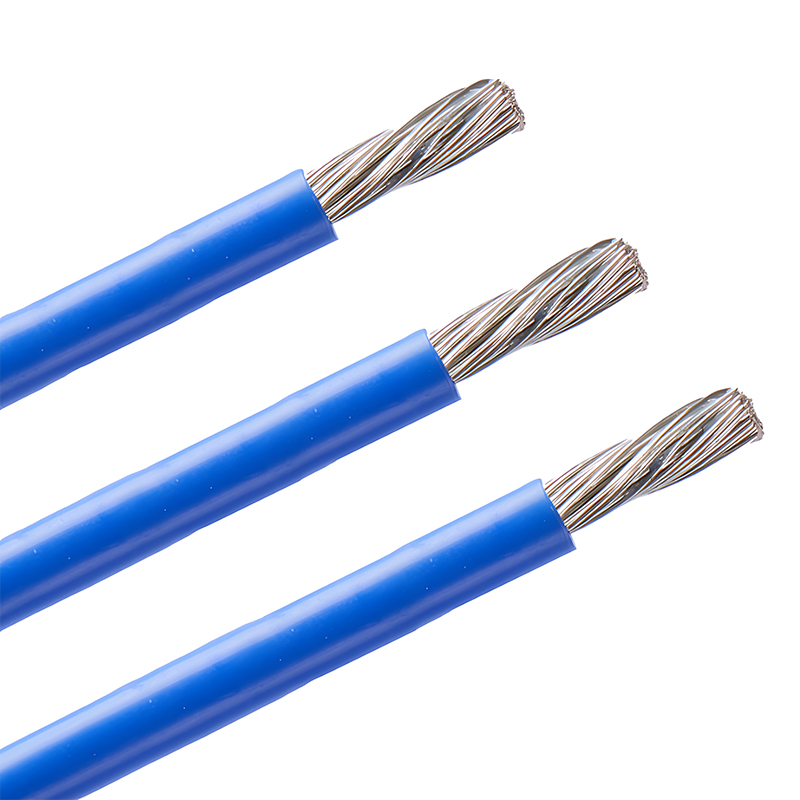

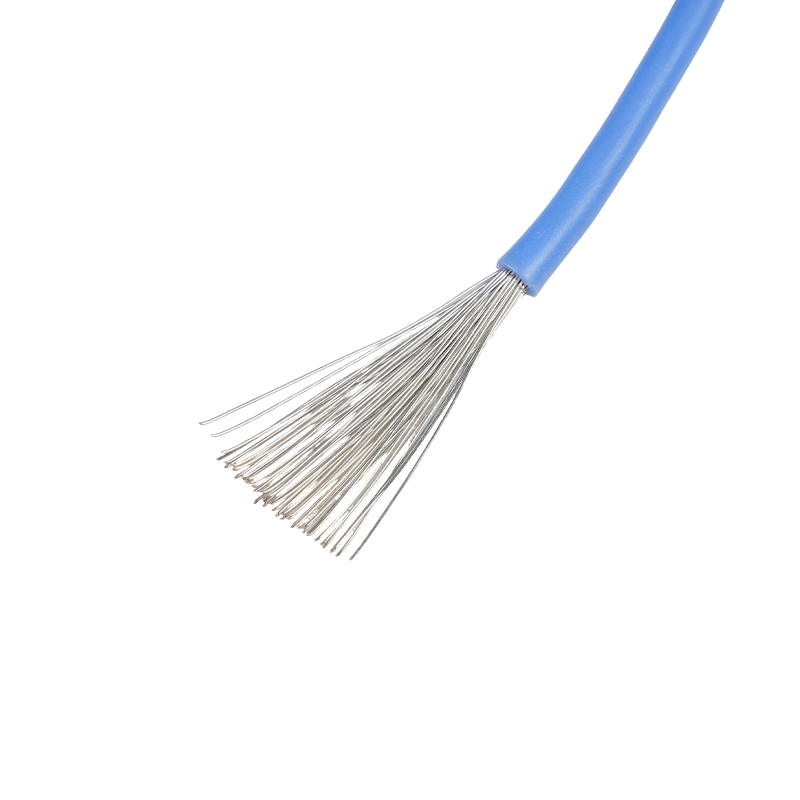

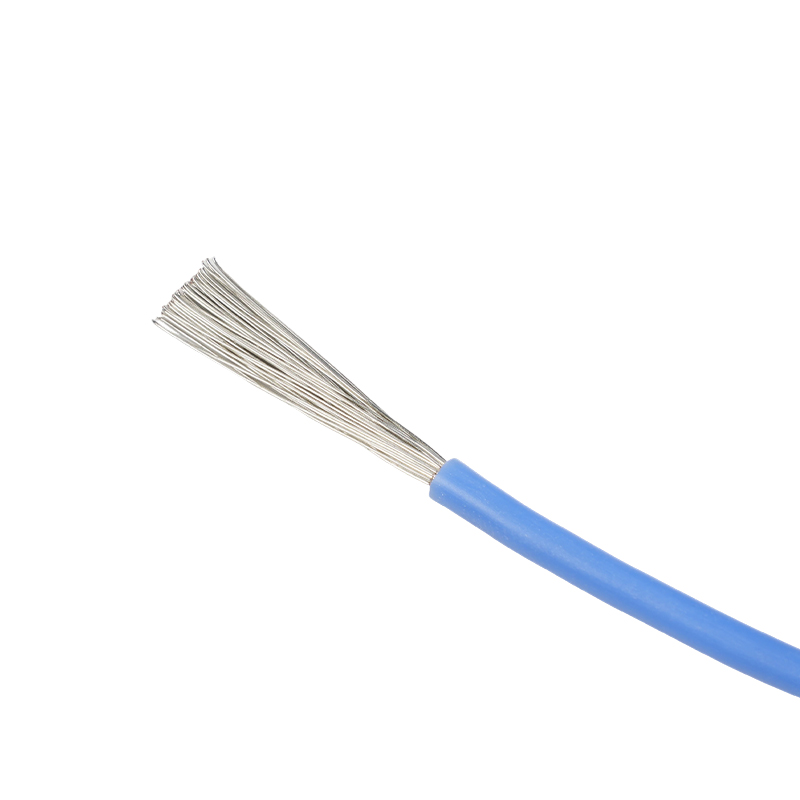

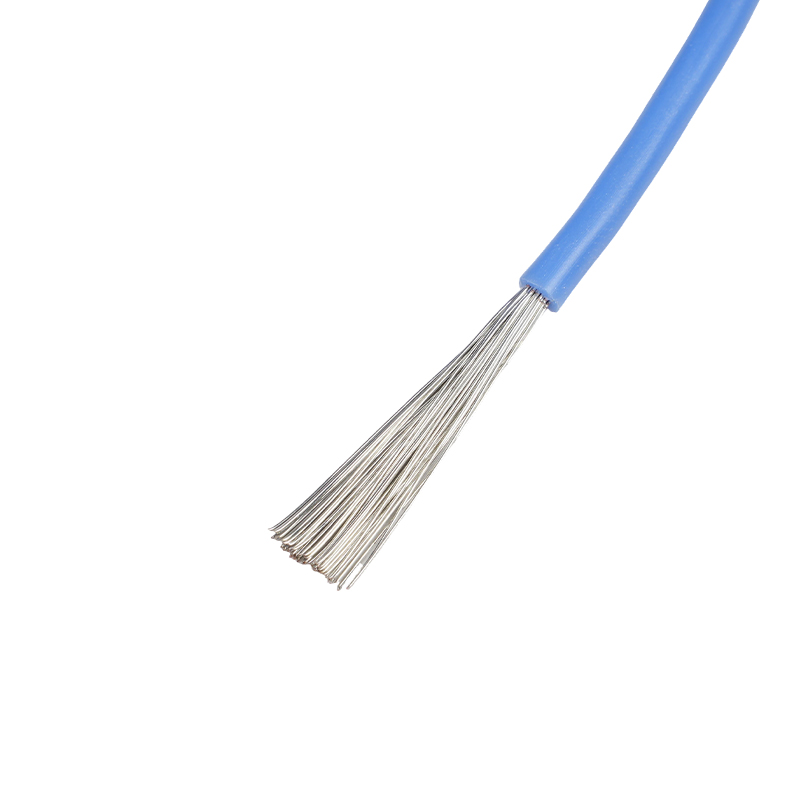

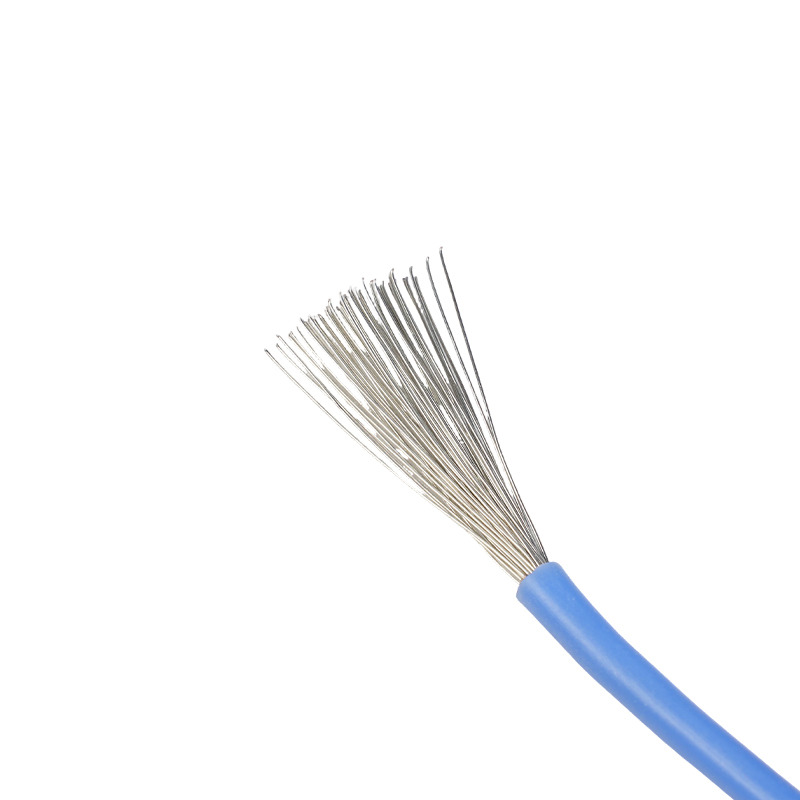

Conductor: Solid or stranded tinned, silver-plated, or nickel-plated copper wire
Temperature range: -60°C to +200°C
Rated voltage: 300V/500V
Outer diameter tolerance: ±0.1mm
Color: Red/yellow/blue/white/black/yellow-green/brown
Compliant standard: Q/IRMV2-2008

Product Features and Advantages:
High-Temperature and Cold-Resistant: Withstands a wide temperature range (-60°C to 200°C) and maintains stable performance in both high and low-temperature environments.
Strong Insulation: High insulation and high-voltage resistance provide superior safety, effectively preventing the risk of electrical leakage.
Flexible and Durable: Soft, stretch-resistant, bend-resistant, wear-resistant, and age-resistant, ensuring a long service life.
Environmentally Adaptable: Waterproof, moisture-proof, corrosion-resistant, and weather-resistant, making it suitable for outdoor and harsh environments.
Flexible Specifications: A variety of specifications are available, allowing customization to meet the power needs of different scenarios.

Applications:
Various motors, electronic ceramics, heating components, automotive lights, lighting fixtures, ballasts, etc.

Delivery requirements:
According to the contract agreement between the two parties, short sections of not less than 10 meters are allowed to be delivered, and the number of short sections should not exceed 10% of the total length of the delivery.

Inquiry Now

PREV: AGRP (Braided Wire) Silicone Rubber Wire

NEXT: No next article

Description
Tell Us Your Message

Specification structure and technical parameters: (ordinary type)

Conductor nominal cross-section （mm2）	Conductor structure	Insulation thickness （mm）	Average outer diameter （mm）	Conductor resistance at 20°C（Ω/km）	Packaging length （m）
Conductor nominal cross-section （mm2）	Number of wires/single wire diameter	Insulation thickness （mm）	Average outer diameter （mm）	Conductor resistance at 20°C（Ω/km）	Packaging length （m）
0.2	1 × 0.50	0.65	1.80	95	500
0.2	12 × 0.15	0.60	1.80	95	500
0.3	16 × 0.15	0.60	1.85	71.2	500
0.4	23 × 0.15	0.50	1.85	49.6	200
0.5	28 × 0.15	0.60	2.20	40.1	200
0.75	42 × 0.15	0.70	2.60	26.7	200
1.0	32 × 0.20	0.70	2.80	20.0	200
1.5	48 × 0.20	0.70	3.10	13.7	100
2.5	49 × 0.25	0.80	3.70	8.21	100
4.0	56 × 0.30	0.80	4.30	5.09	100
6.0	84 × 0.30	0.80	5.20	3.39	100
10	84 × 0.40	1.00	6.80	1.95	100
16	126 × 0.40	1.20	8.40	1.24	100
25	196 × 0.40	1.40	10.40	0.795	100
Note: Products of other specifications can be produced according to the technical agreement between the two parties.
