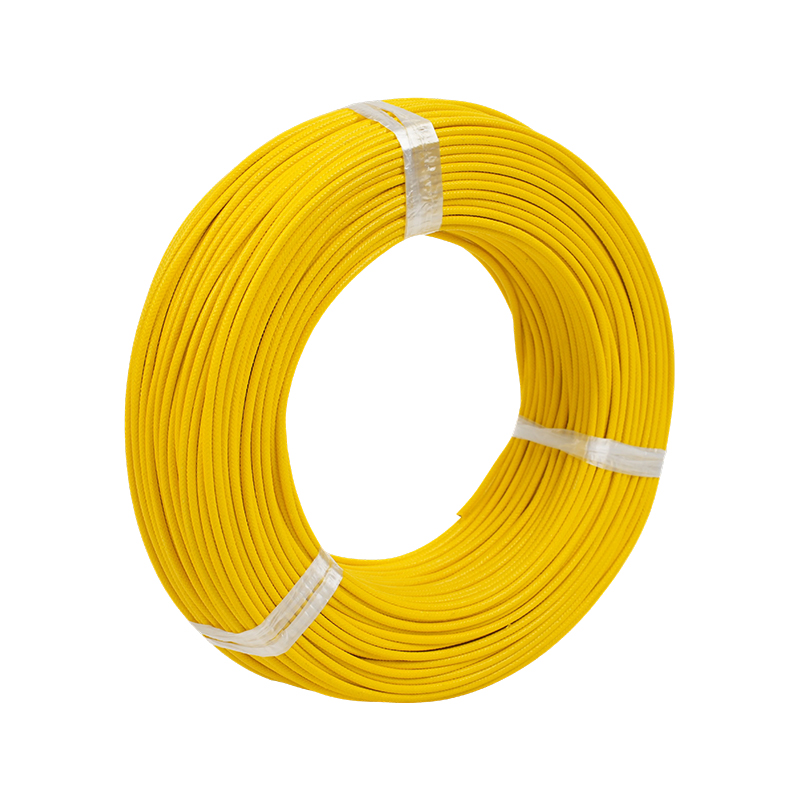

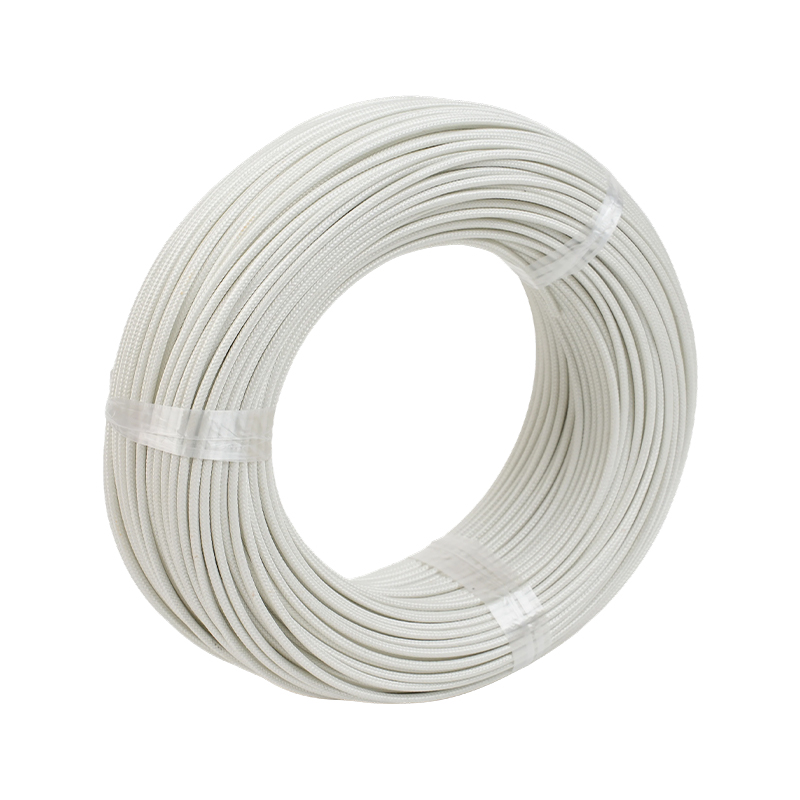

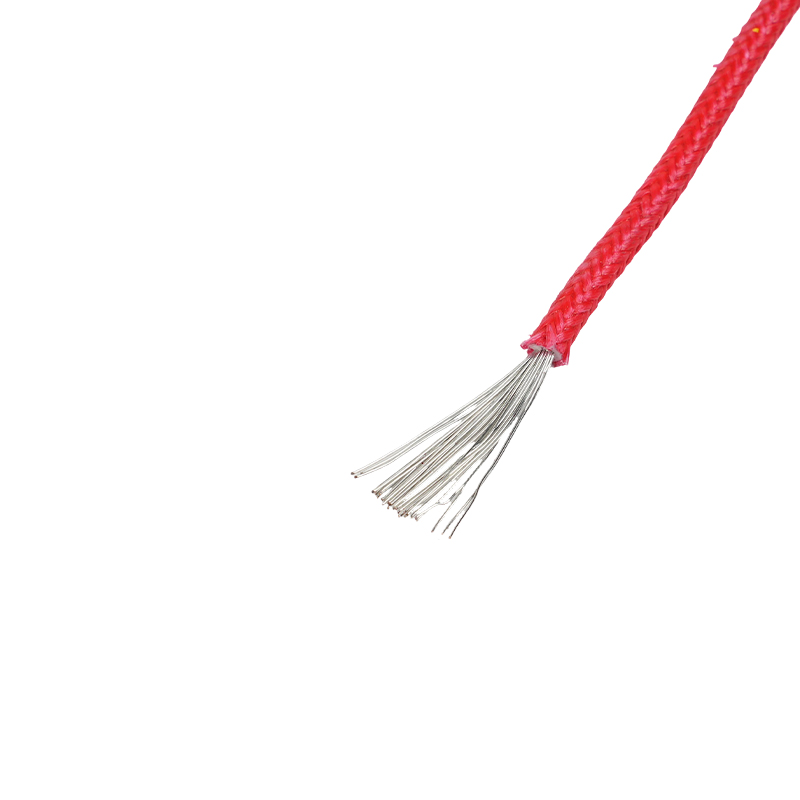

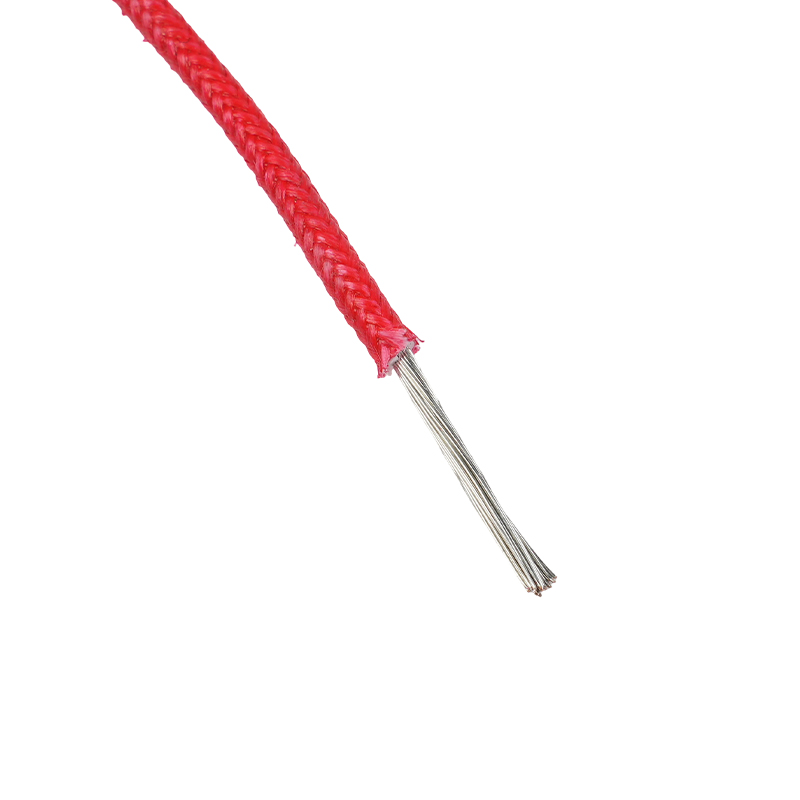

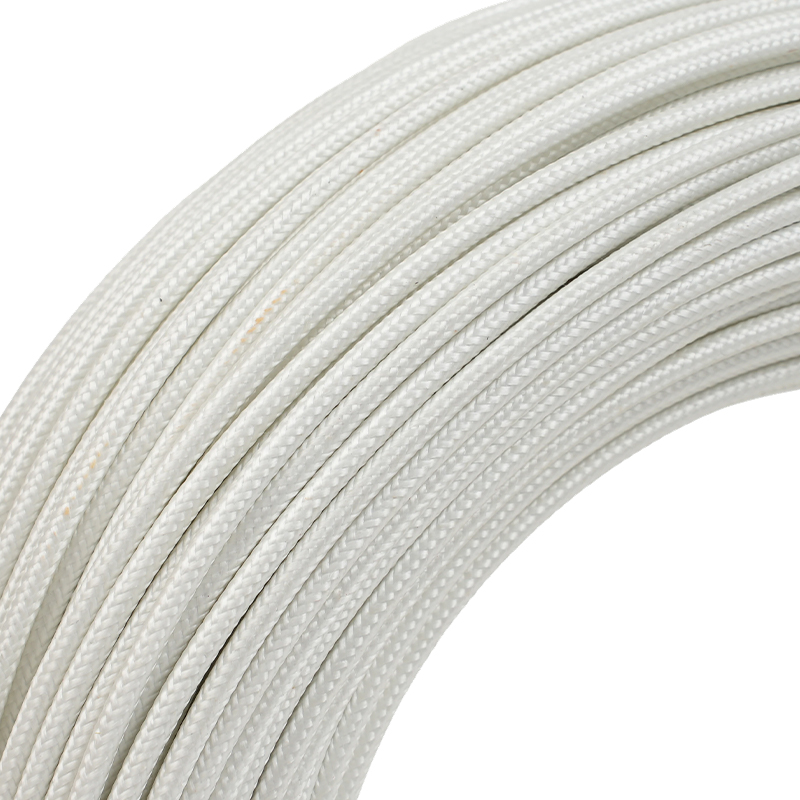

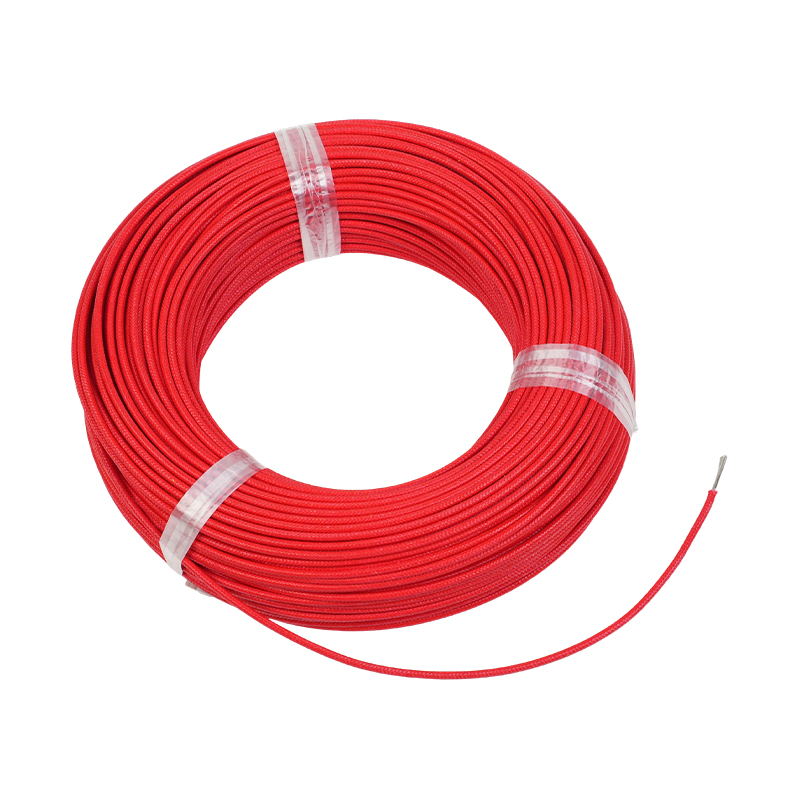

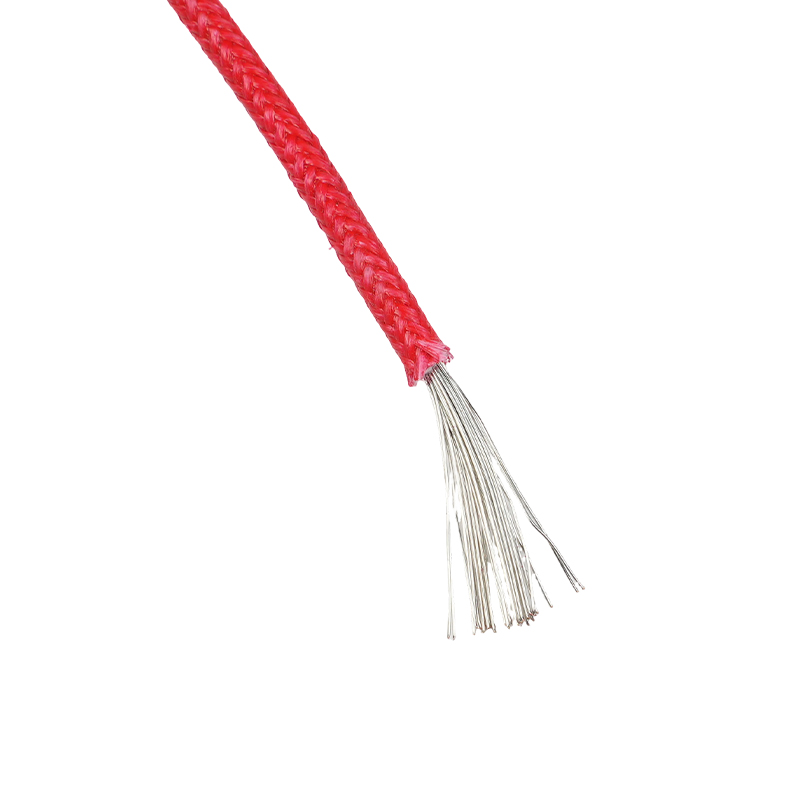

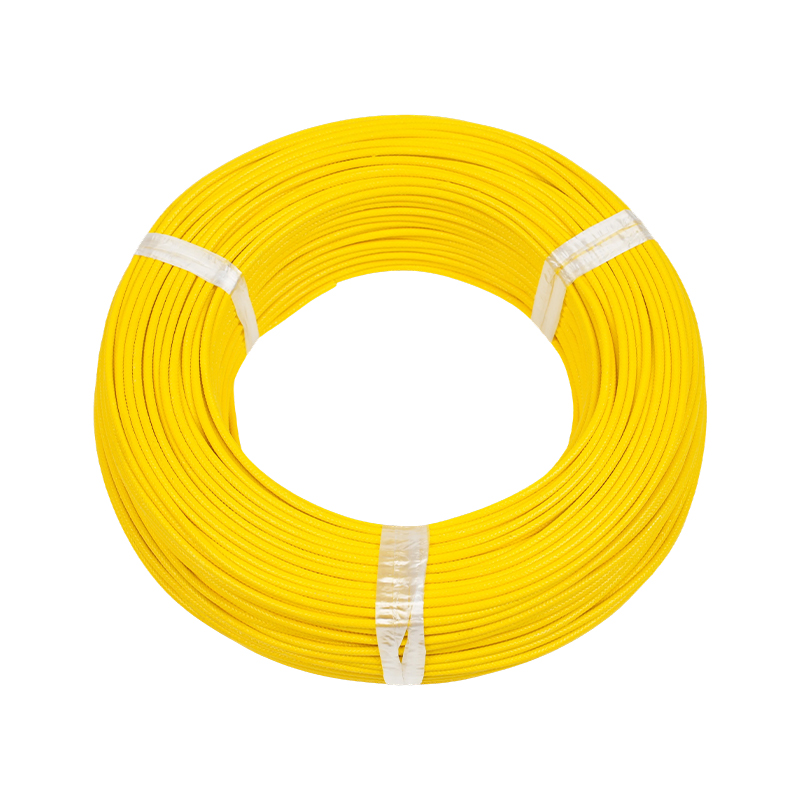

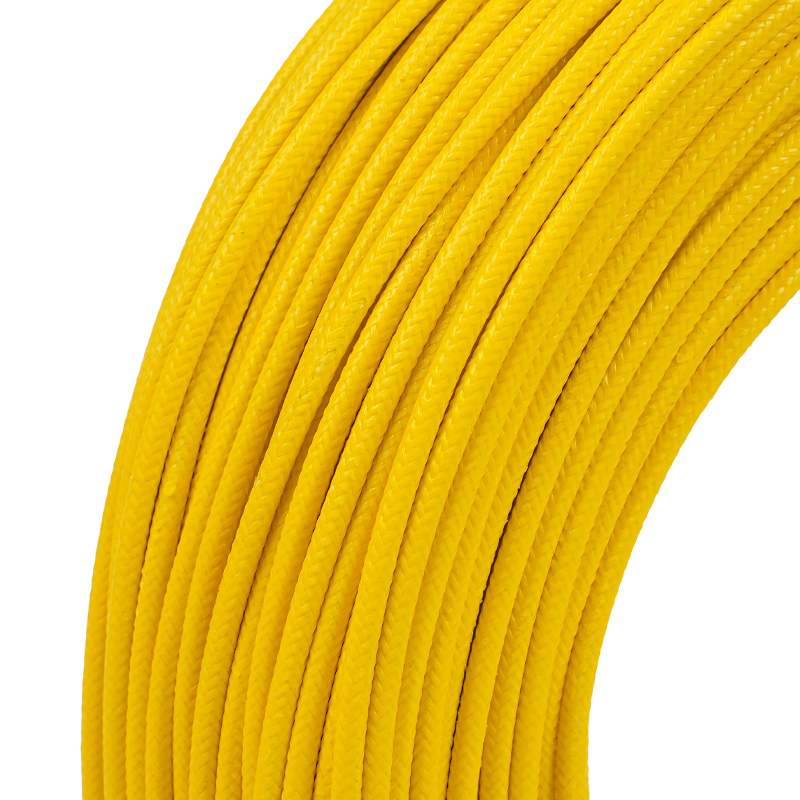

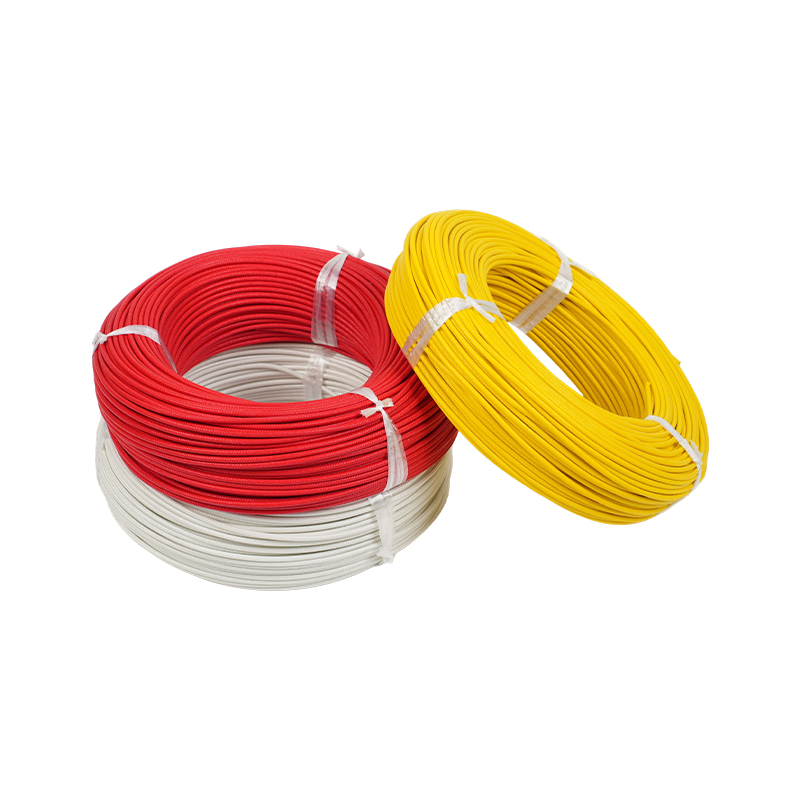

AGRP (Braided Wire) Silicone Rubber Wire

Manufacturing Process:

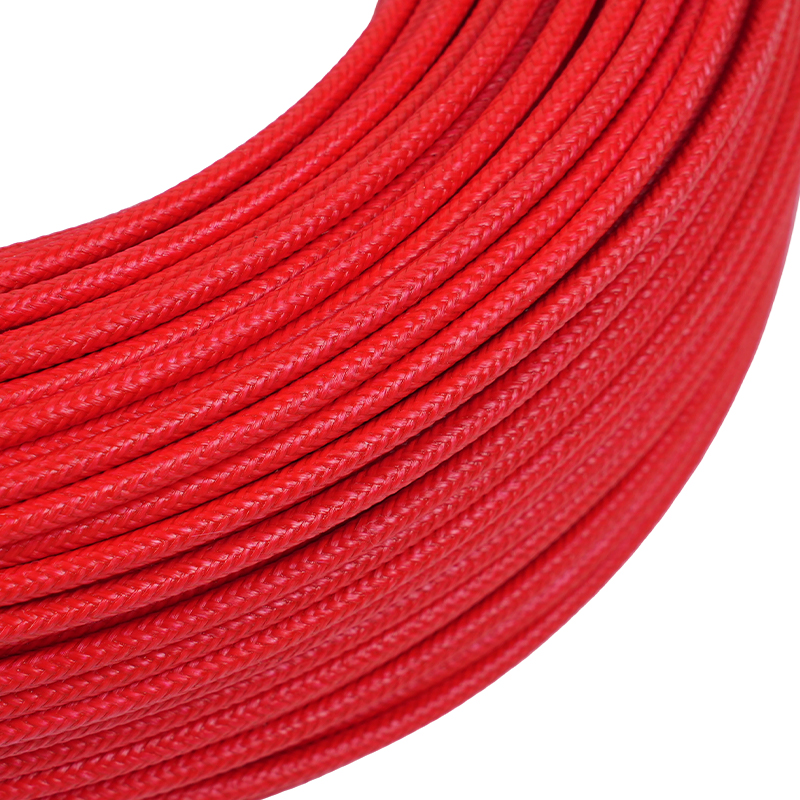

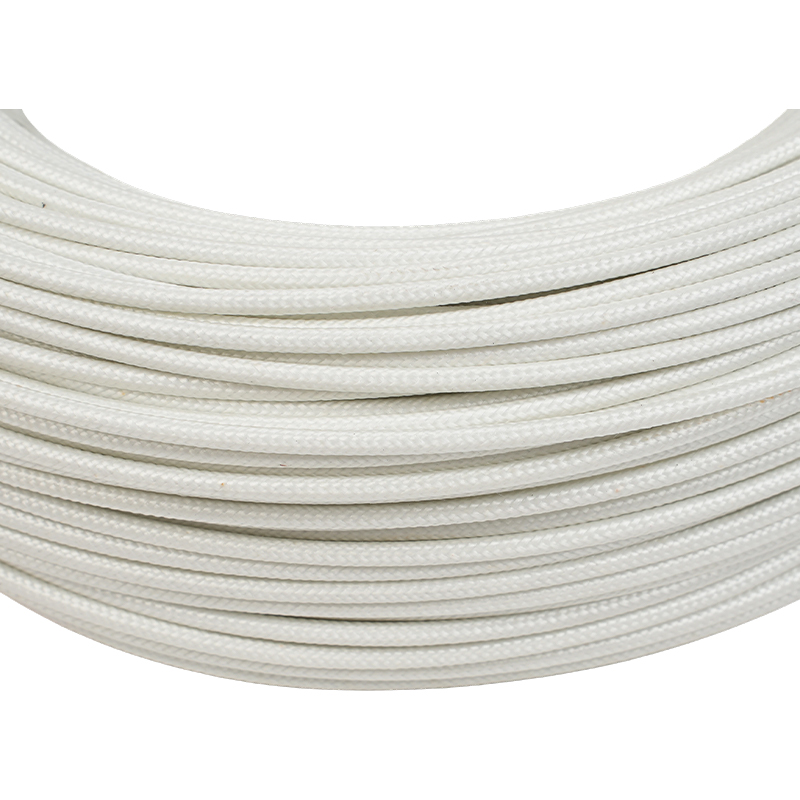

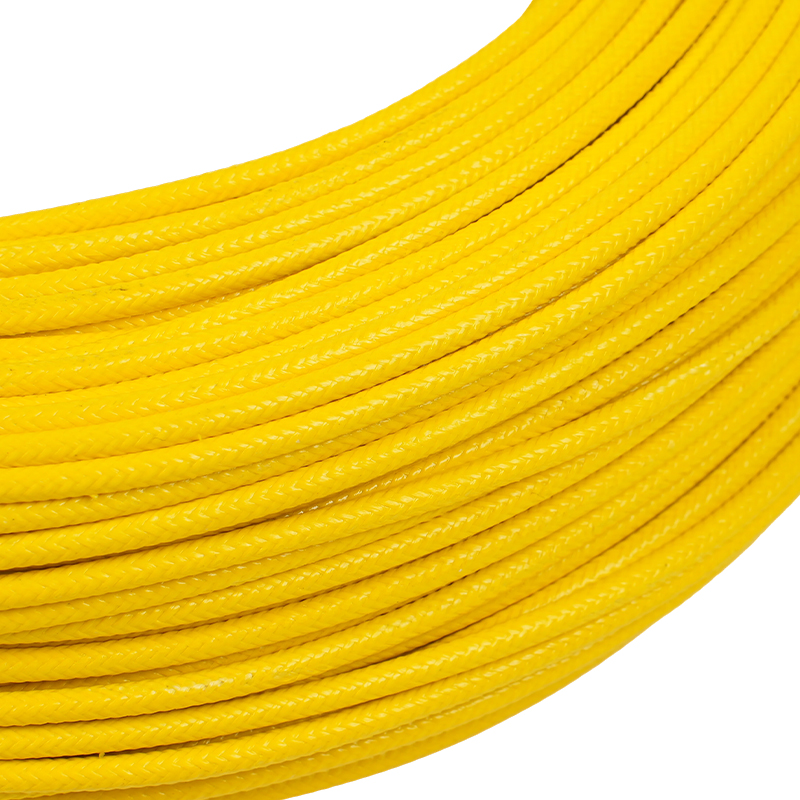

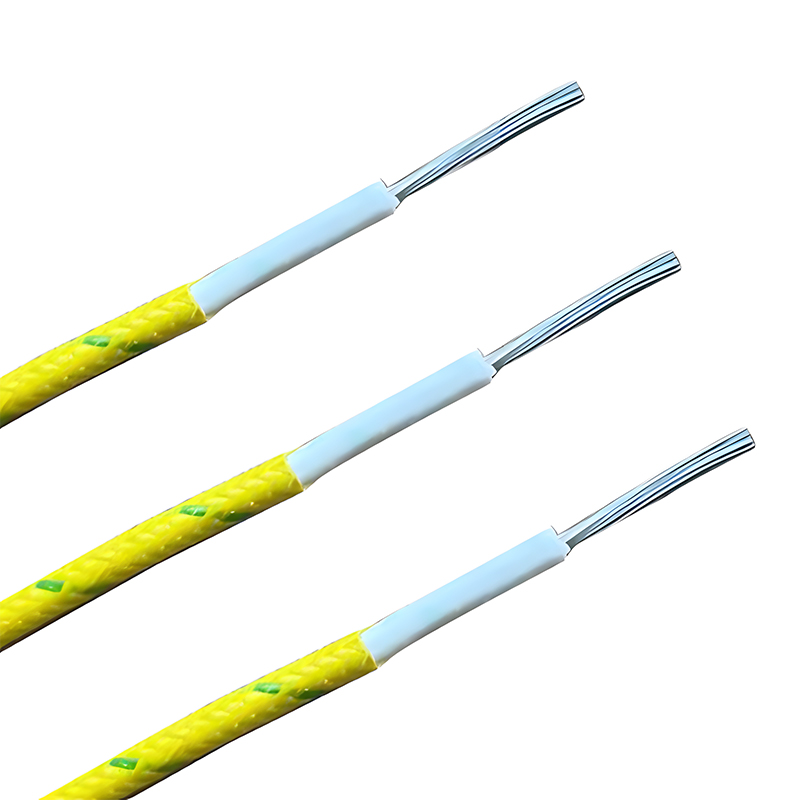

Insulation: Silicone rubber + fiberglass braid + silicone resin coating
Conductor: Solid or stranded tinned copper wire
Temperature range: -60°C to +200°C
Rated voltage: 500V

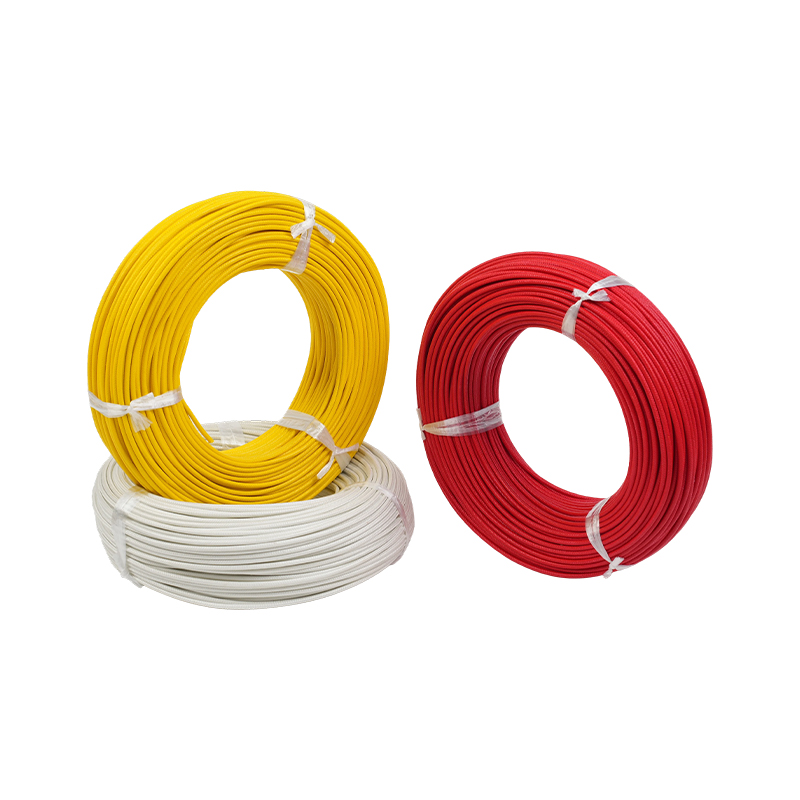

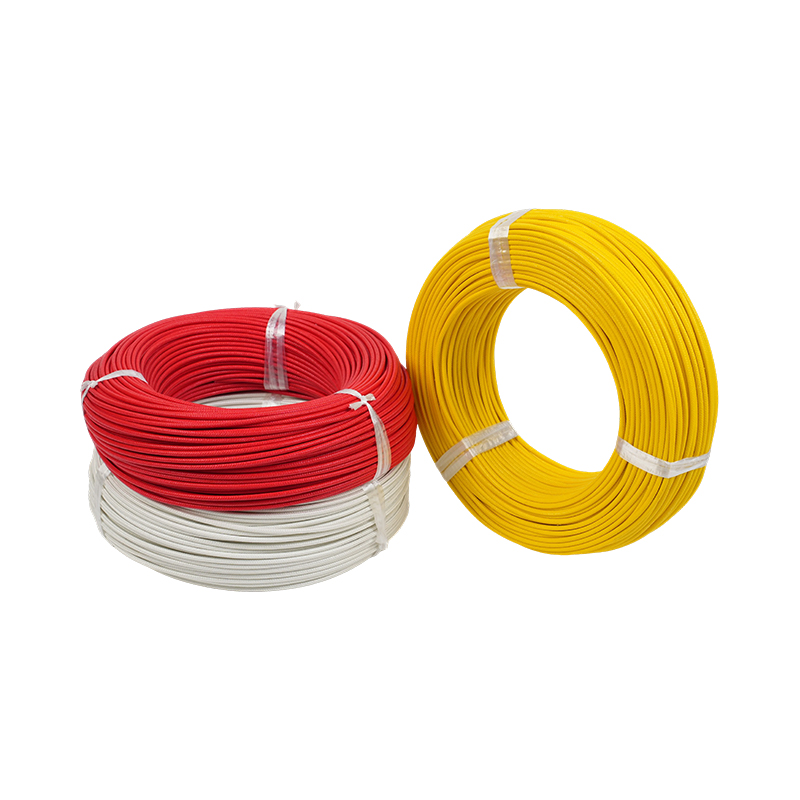

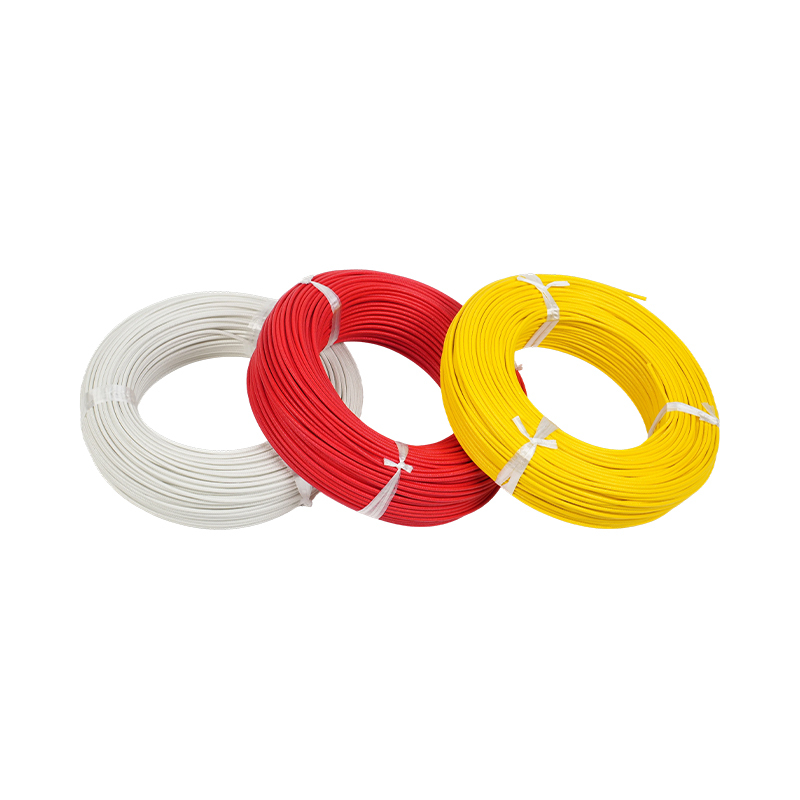

Colors: Red, yellow, blue, white, black, green, brown, gray, purple, yellow-green, etc.
Outer diameter tolerance: ±0.1mm

Product Features and Advantages:
High and Low Temperature Resistance: Operates stably in environments ranging from -60°C to 200°C, maintaining performance despite extreme temperature swings.
Strong Protection: The braid is abrasion-resistant, tear-resistant, waterproof, dust-resistant, and oil-resistant, effectively protecting the internal conductors. It is UV-resistant and age-resistant, ensuring a long outdoor life.
Excellent Insulation: Silicone rubber offers excellent insulation, resists high voltages and breakdowns, ensuring electrical safety.
Excellent Flexibility: The soft, flexible material facilitates wiring in confined spaces and complex installations.
Environmentally Friendly and Safe: Halogen-free, flame-retardant, compliant with environmental standards and ROHS certification, produces low smoke and is non-toxic. It also offers excellent biocompatibility and can be used in medical applications.
Stable Conductivity: The conductor has high conductivity, ensuring stable transmission and low signal and power loss.

Applications:
Suitable for heating light sources, motors, air conditioners, ovens, drying tunnels, automobile ignition systems, and household appliances.

Delivery Requirements:
As agreed upon in the contract, short sections of no less than 10 meters may be delivered. The number of such sections should not exceed 10% of the total length of the delivery.

Inquiry Now

PREV: YGZ Silicone Rubber Insulated High-Temperature Cable

NEXT: AGR Silicone Rubber Wire

Description
Tell Us Your Message

Specification structure and technical parameters: (ordinary type)

Cross-sectional area (mm²)	Conductor structure （No./mm）	Average insulation thickness (mm)	Minimum insulation thickness (mm)	Weaving thickness (mm)	Average outer diameter (mm)	Conductor DC resistance at 20℃ (≤Ω/km)
0.3	16/0.15	0.50	0.35	0.15	2.0	72
0.4	23/0.15	0.50	0.35	0.15	2.1	50
0.5	28/0.15	0.50	0.35	0.15	2.25	40
0.75	42/0.15	0.50	0.35	0.20	2.55	27
1.0	32/0.20	0.50	0.35	0.20	2.75	20
1.5	48/0.20	0.60	0.44	0.20	3.2	14
2.0	40/0.25	0.60	0.44	0.20	3.5	10
2.5	49/0.25	0.60	0.44	0.20	3.6	8.2
4	56/0.30	0.65	0.49	0.25	4.5	4.88
6	84/0.30	0.70	0.53	0.25	5.2	4.0
10	84/0.40	0.80	0.62	0.25	6.9	1.95
16	126/0.40	0.90	0.71	0.25	8.1	1.24
25	196/0.40	1.0	0.80	0.30	9.9	0.8
35	276/0.40	1.1	0.80	0.30	11.4	0.565
50	396/0.40	1.2	0.98	0.30	13.7	0.393
Note: We can produce products of various specifications according to customer needs.
