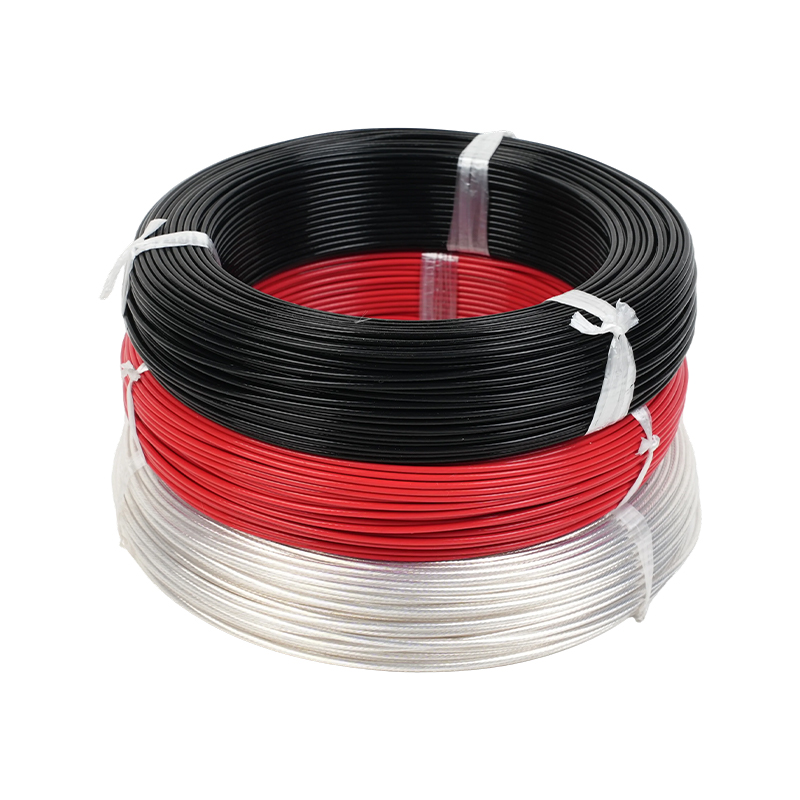

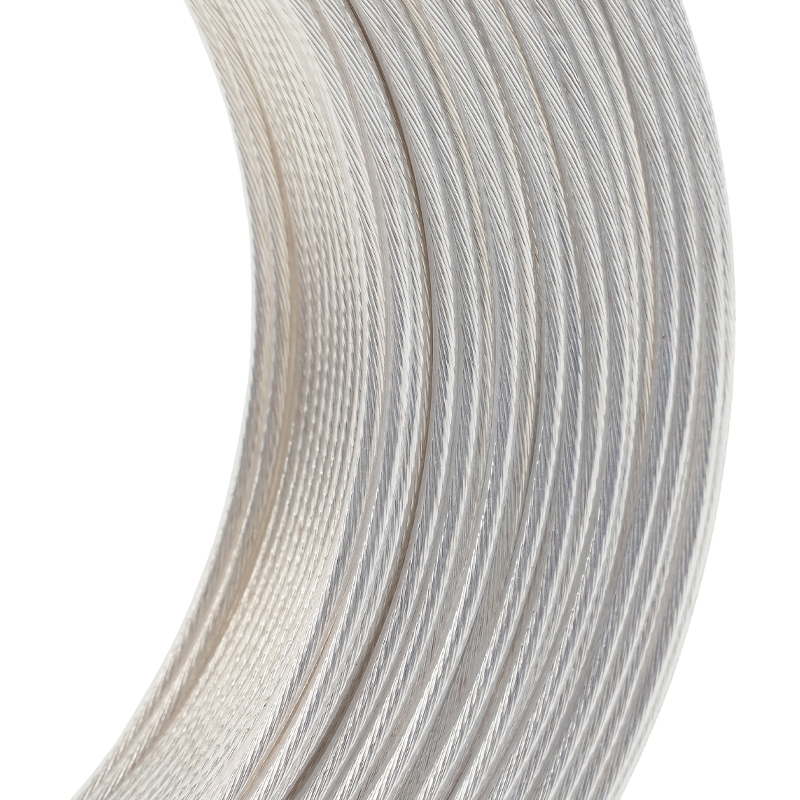

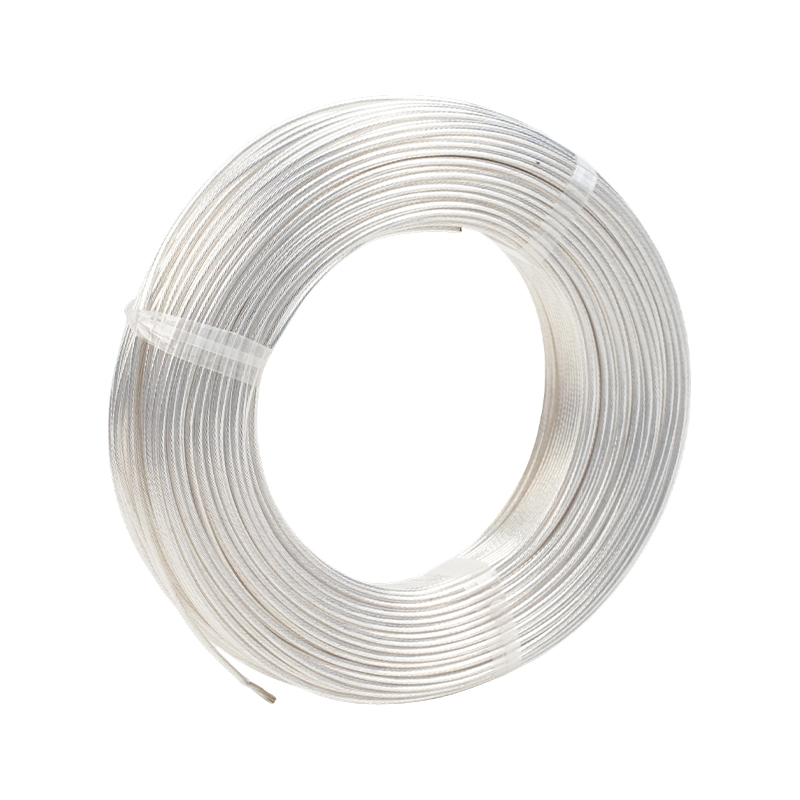

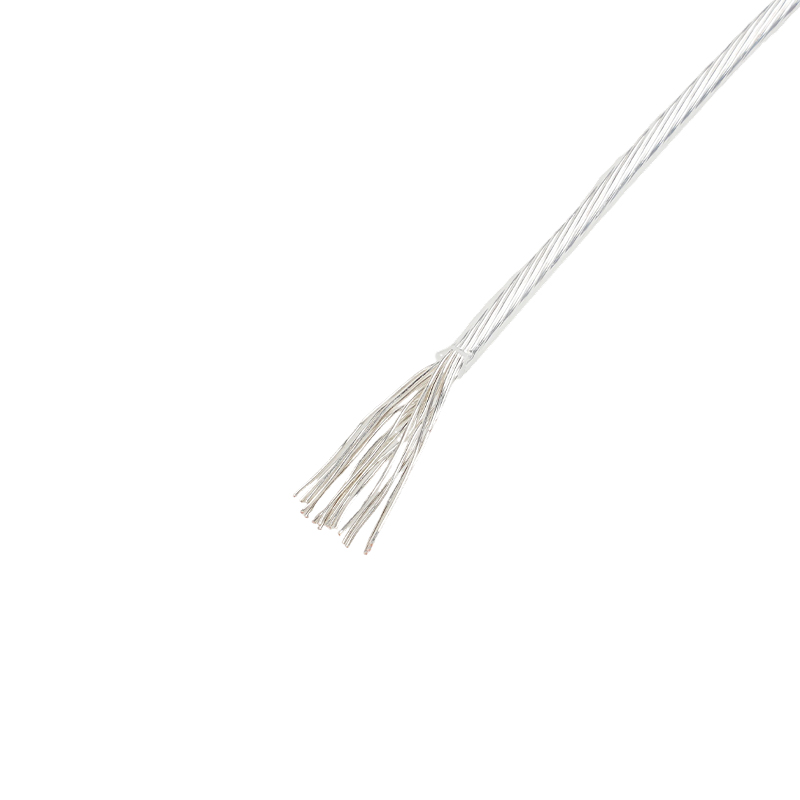

AFT250 PTFE Teflon Wire


Manufacturing Process:
Insulator: PTFE

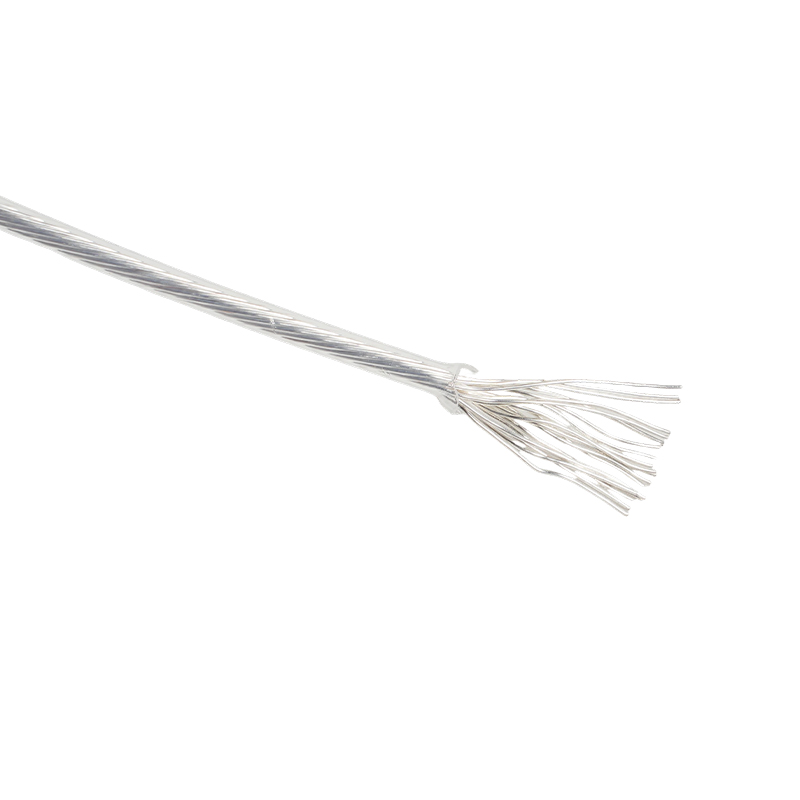

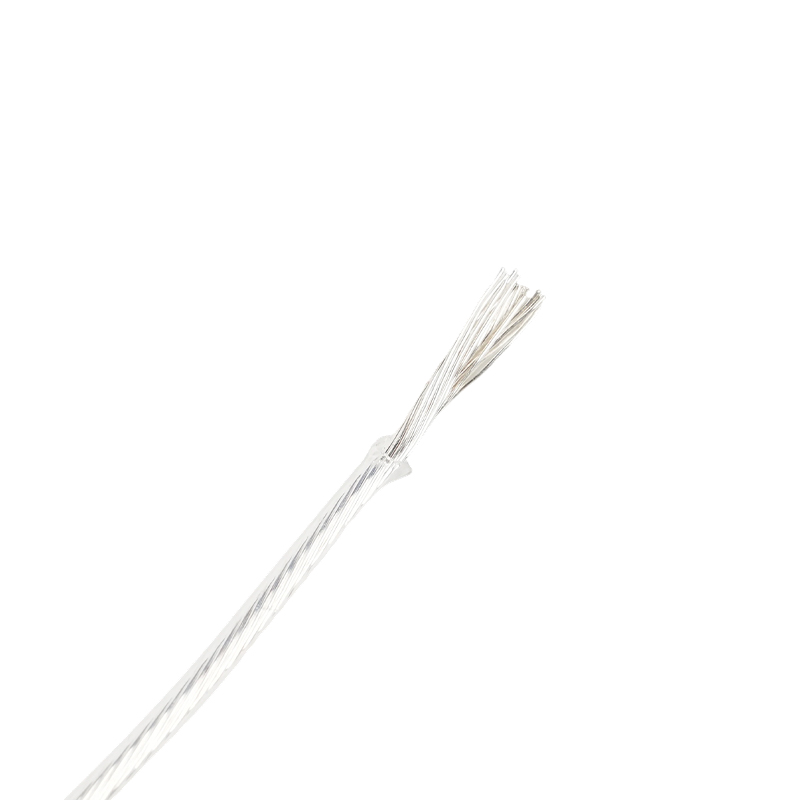

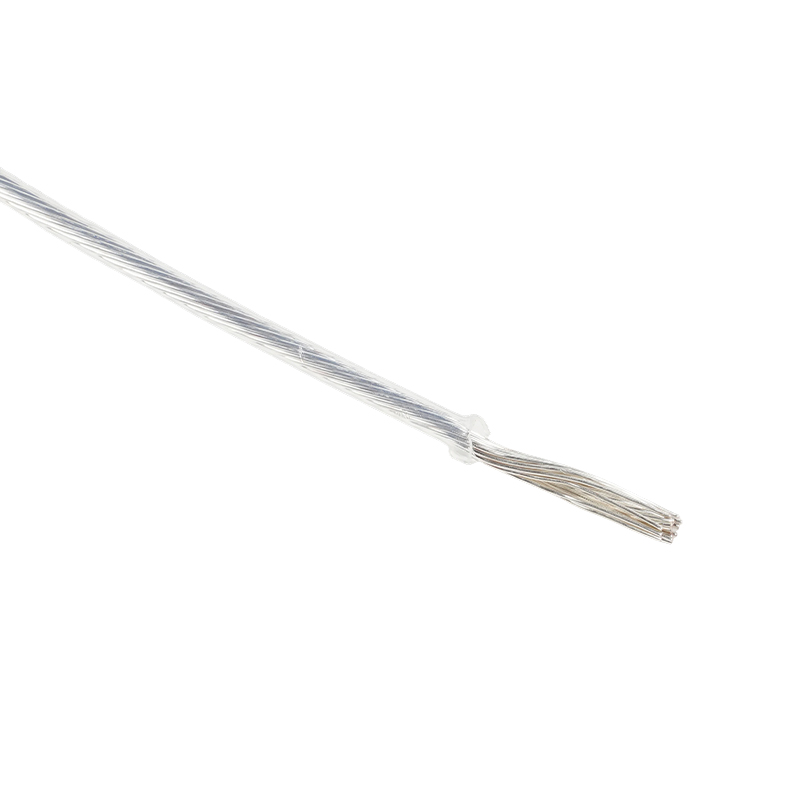

Conductor: Solid or stranded silver-plated or nickel-plated copper wire
Temperature Range: -65°C to +250°C (short-term resistance to 350°C)
Rated Voltage: 600V
Outer Diameter Tolerance: ±0.1mm

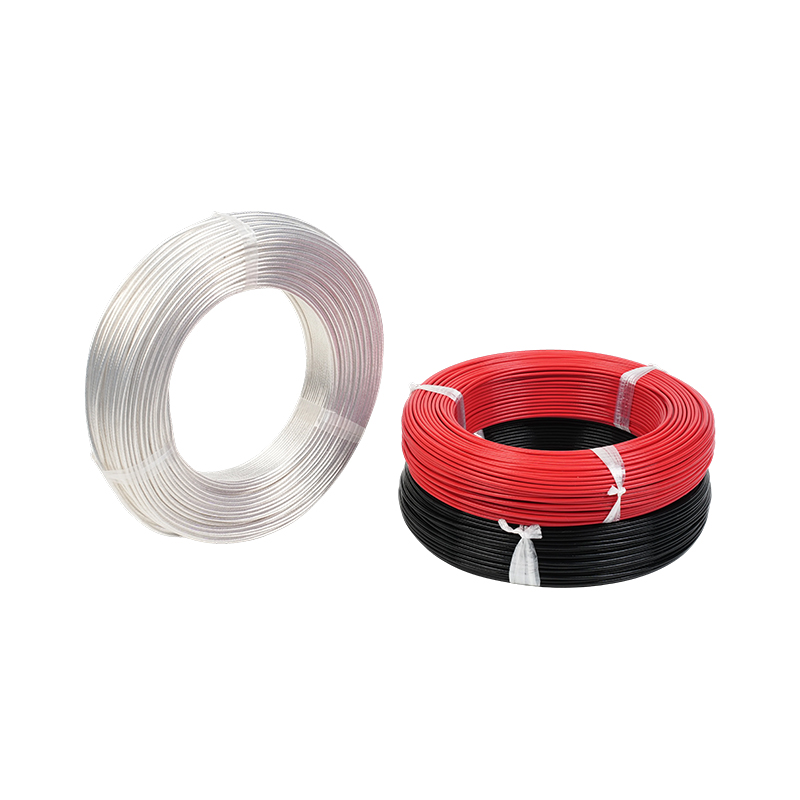

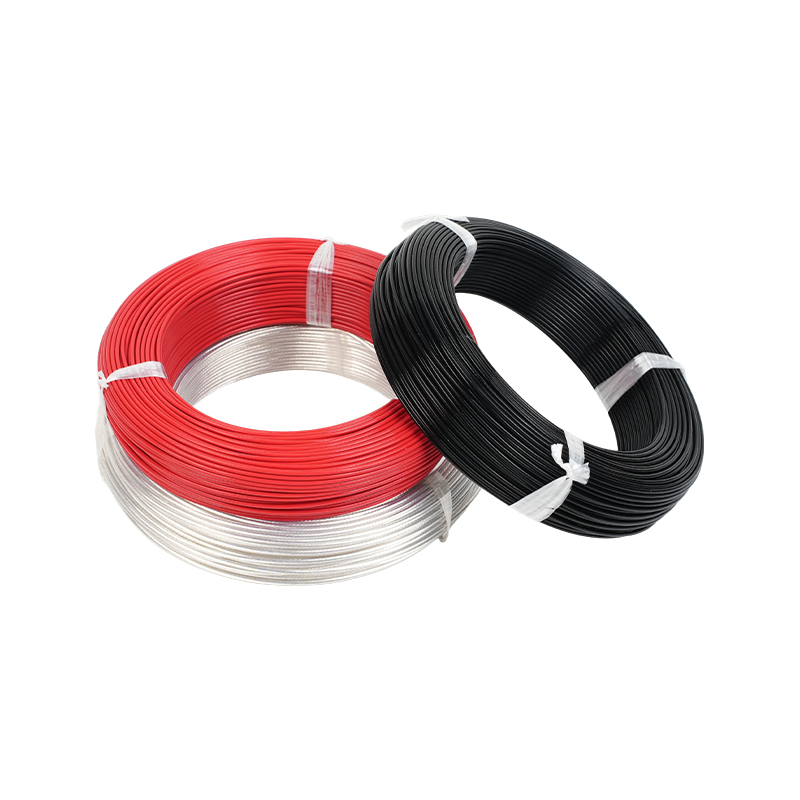

Color: Red/Yellow/Blue/White/Black/Yellow-Green/Brown
Implementation Standard: Q/IRMV1-2008

Product Features and Advantages:
Excellent electrical performance: Strong insulation, stable high voltage and high frequency operation, and protection against leakage and short circuits.
Wide temperature range: Maintains performance from -65°C to +250°C, and can withstand temperatures up to 350°C for short periods, making it suitable for extreme temperatures.
Excellent corrosion and fire resistance: Resistant to strong acids and alkalis, flame retardant, smokeless, long life, and slow aging.
Strong mechanical properties: The wire exhibits excellent mechanical strength and is resistant to cracking.

Applications:
Used in petroleum instruments, motors, automotive cables, outdoor lighting, PTC thermistors, and heating components.

Delivery Requirements:
As agreed upon in the contract, short sections of no less than 10 meters may be delivered. The number of such sections should not exceed 10% of the total length of the delivery.

Inquiry Now
  • Specifications, structure and technical parameters:



    Nominal cross-section
    (mm2)

    Conductor structure
    Number of wires/wire diameter(mm)

    Insulation thickness(mm)

    Average outer diameter
    (mm)

    DC resistance of conductor at 20°C
    (Ω/km)

    Packaging length
    (m)

    0.05

    1 × 0.25

    0.20

    0.65

    376.29

    500

    0.07

    1 × 0.30

    0.20

    0.70

    245.0

    500

    0.12

    1 × 0.40

    0.225

    0.85

    144.1

    500

    0.16

    1 × 0.45

    0.25

    0.95

    126.0

    500

    0.20

    1 × 0.50

    0.30

    1.10

    83.5

    500

    0.08

    7 × 0.12

    0.25

    0.86

    227

    500

    0.15

    7 × 0.16

    0.25

    0.98

    126

    500

    0.20

    7 × 0.20

    0.25

    1.10

    83.5

    500

    0.35

    19 × 0.16

    0.30

    1.40

    49.5

    200

    0.50

    19 × 0.18

    0.35

    1.60

    36.7

    200

    0.75

    19 × 0.23

    0.35

    1.85

    22.7

    200

    1

    19 × 0.26

    0.35

    2.00

    19.0

    200

    1.2

    19 × 0.28

    0.40

    2.20

    15.3

    200

    1.5

    19 × 0.32

    0.40

    2.40

    11.7

    200

    2

    19 × 0.37

    0.45

    2.75

    9.45

    100

    2.5

    19 × 0.41

    0.55

    3.15

    6.86

    100

    4

    37 × 0.37

    0.50

    3.58

    4.51

    100

    6

    37 × 0.45

    0.50

    4.15

    3.05

    100

    Note: Products of other specifications can be produced based on the agreement between the supplier and the buyer.
