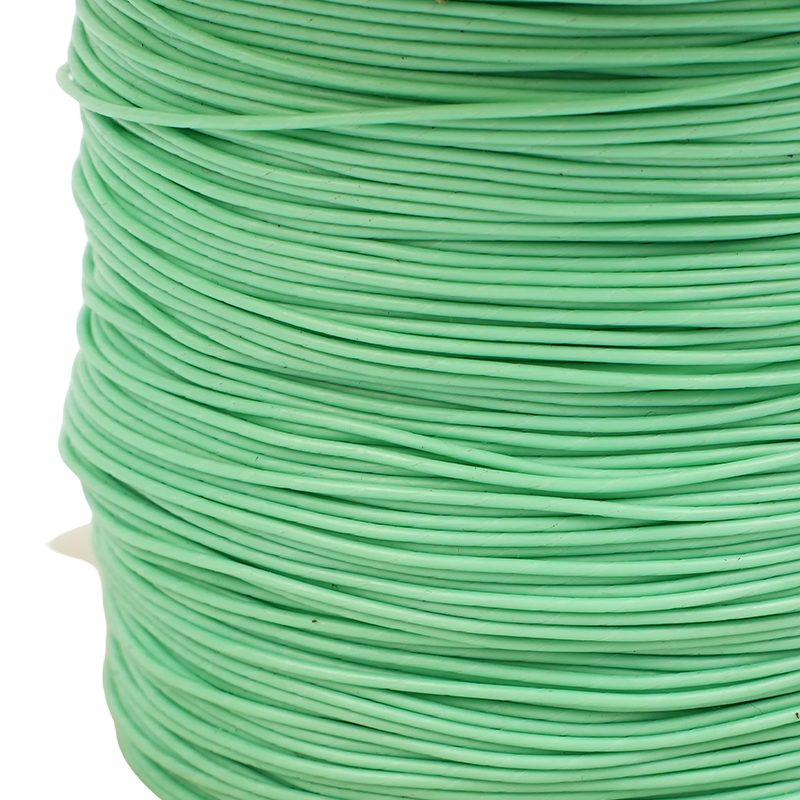

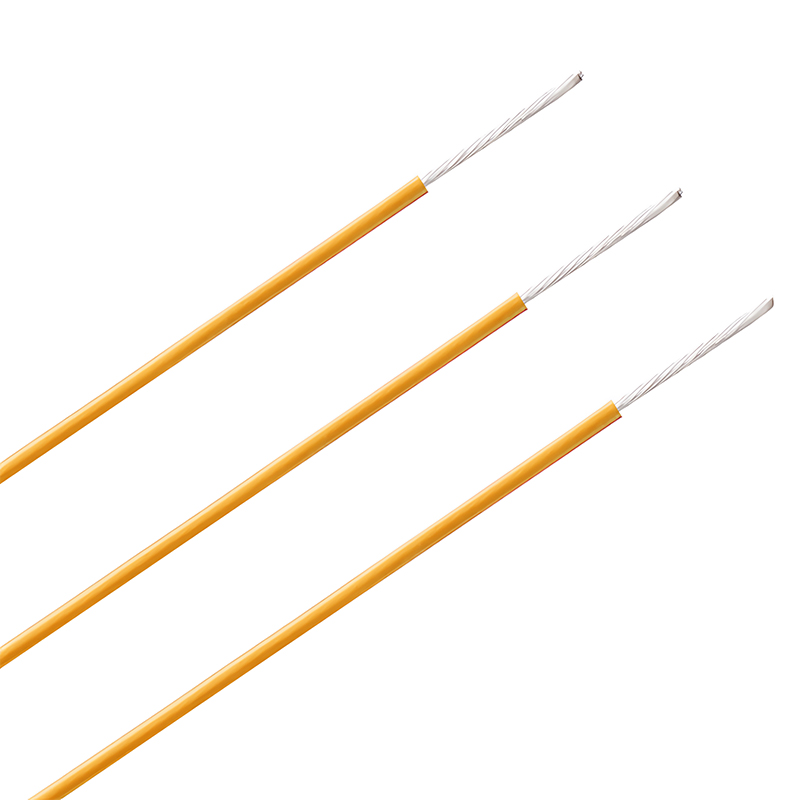

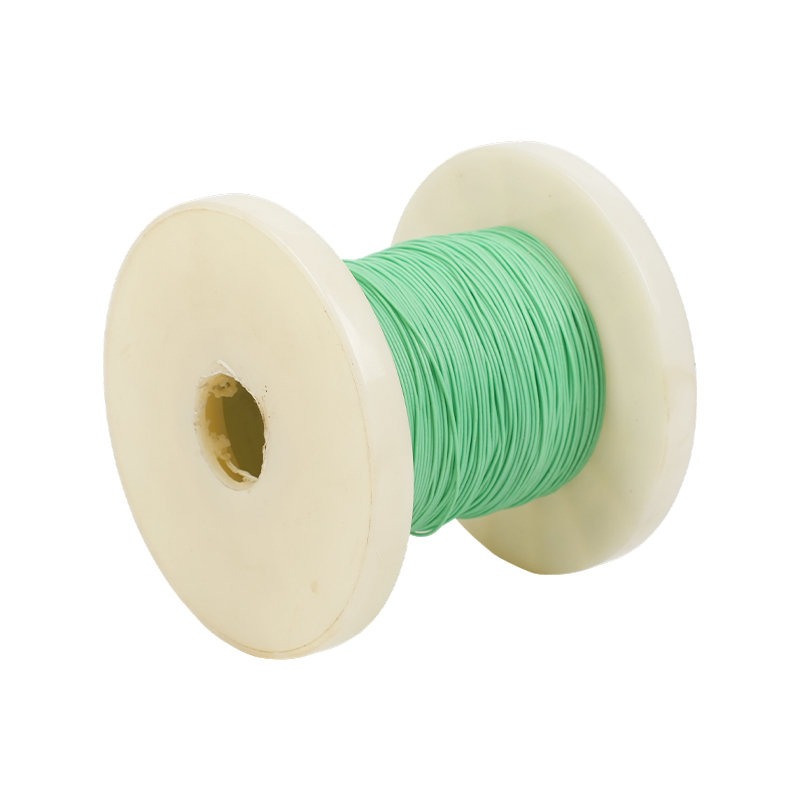

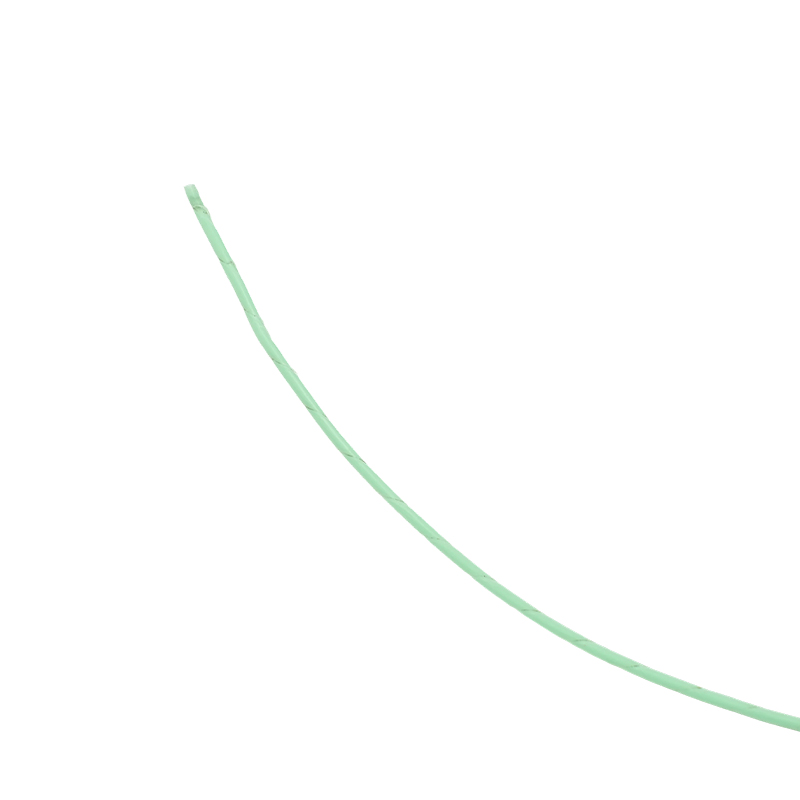

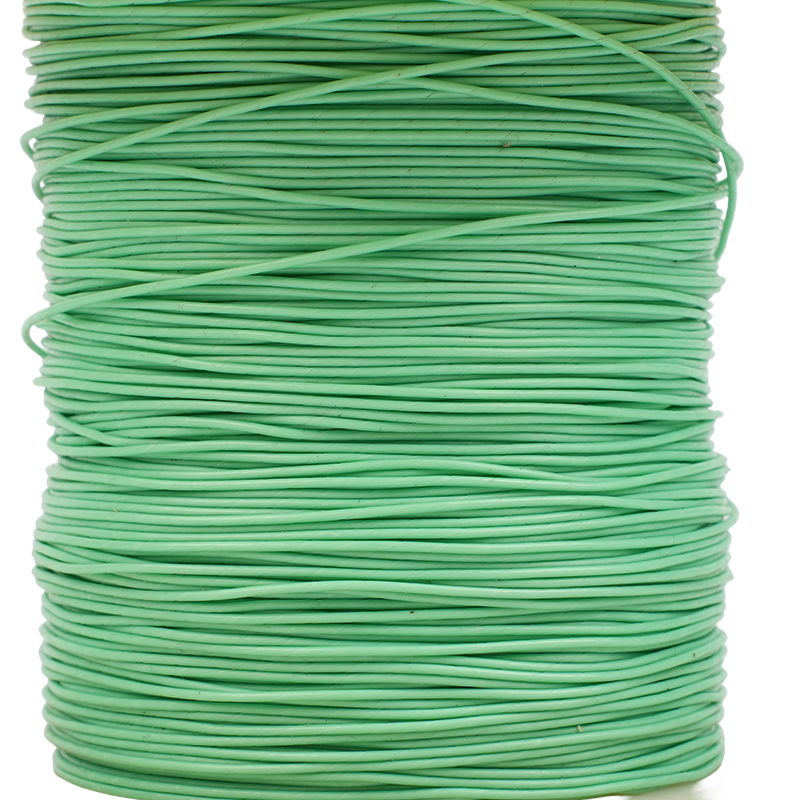

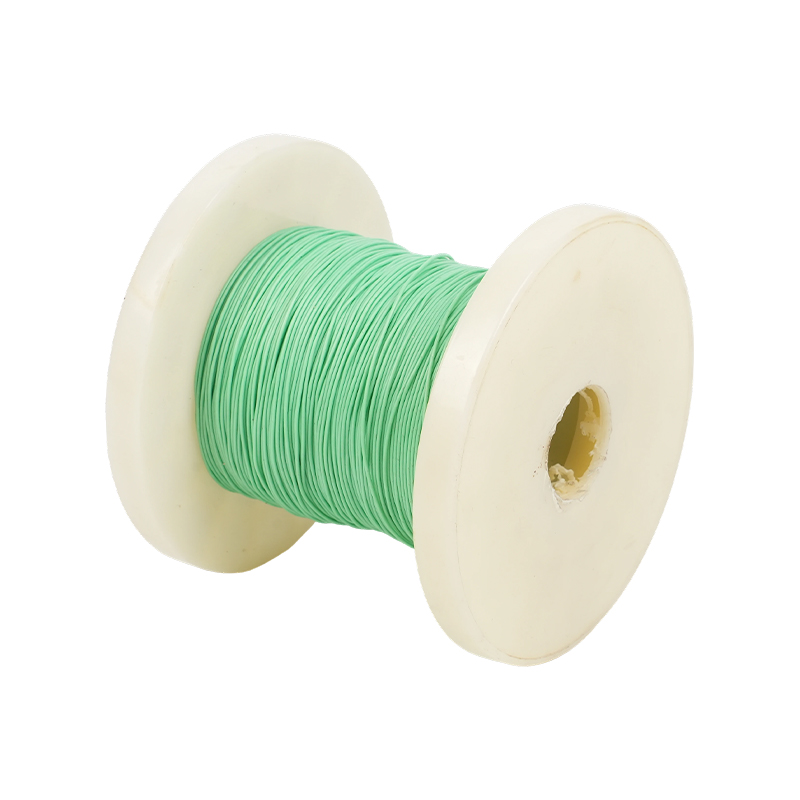

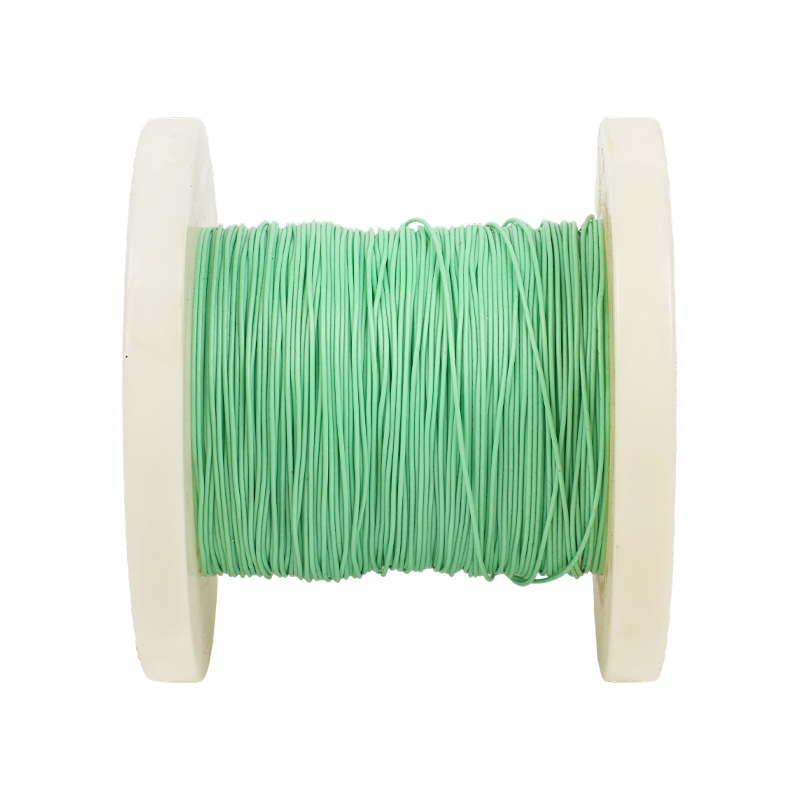

AFR250 PTFE Teflon Wire


Manufacturing Process:
Insulator: PTFE (polytetrafluoroethylene)
Conductor: Solid or stranded bare copper wire, silver-plated or nickel-plated copper wire
Rated Voltage: 125V/300V/600V
Temperature Range: -65°C to +250°C
Outer Diameter Tolerance: ±0.1mm
Colors: Red, yellow, blue, white, black, green, brown, gray, purple, natural
Implementation Standard: GJB773-2000

Product Features and Advantages:
High-Temperature Resistance: Can be used stably at 250°C for extended periods of time
Excellent Electrical Properties: Excellent insulation and strong resistance to electromagnetic interference
Good Protection: Acid and alkali corrosion resistance, flame retardant and halogen-free
High Durability: Abrasion and tensile resistance, flexible cable for a long service life

Applications:
Widely used in high-temperature environments such as aviation electrical equipment, precision instruments, and mid-circuit boards, as jumpers, bridge cables, or for ultra-fine and flexible wiring.

Delivery requirements: According to the contract agreement between the two parties, short sections of not less than 10 meters are allowed to be delivered. The number of short sections should not exceed 10% of the total length of the delivery.

Inquiry Now
  • Specifications, structure and technical parameters:

    Cross-sectional area(mm²)

    Number of wire diameters

    (No./mm)

    Nominal diameter(mm)

    Maximum outer diameter of wire(mm)

    110V

    250V

    600V

    0.013

    7/0.05

    0.15

    0.38

    0.49

    0.71

    0.035

    7/0.08

    0.24

    0.47

    0.58

    0.81

    0.06

    7/0.10

    0.30

    0.55

    0.65

    0.87

    0.08

    7/0.12

    0.36

    0.60

    0.70

    0.93

    0.10

    7/0.14

    0.42

    0.70

    0.83

    1.00

    0.14

    7/0.16

    0.50

    0.73

    0.85

    1.05

    0.20

    7/0.20

    0.60

    0.85

    0.97

    1.30

    0.35

    7/0.25

    0.80



    1.20

    1.50

    0.5

    7/0.30

    0.90



    1.30

    1.60

    0.8

    7/0.37

    1.10



    1.65

    1.85

    1

    19/0.26

    1.30



    1.88

    2.00

    1.2

    19/0.28

    1.40



    1.95

    2.15

    1.5

    19/0.32

    1.60



    2.15

    2.35

       Note: We can produce products of various specifications according to customer needs.
