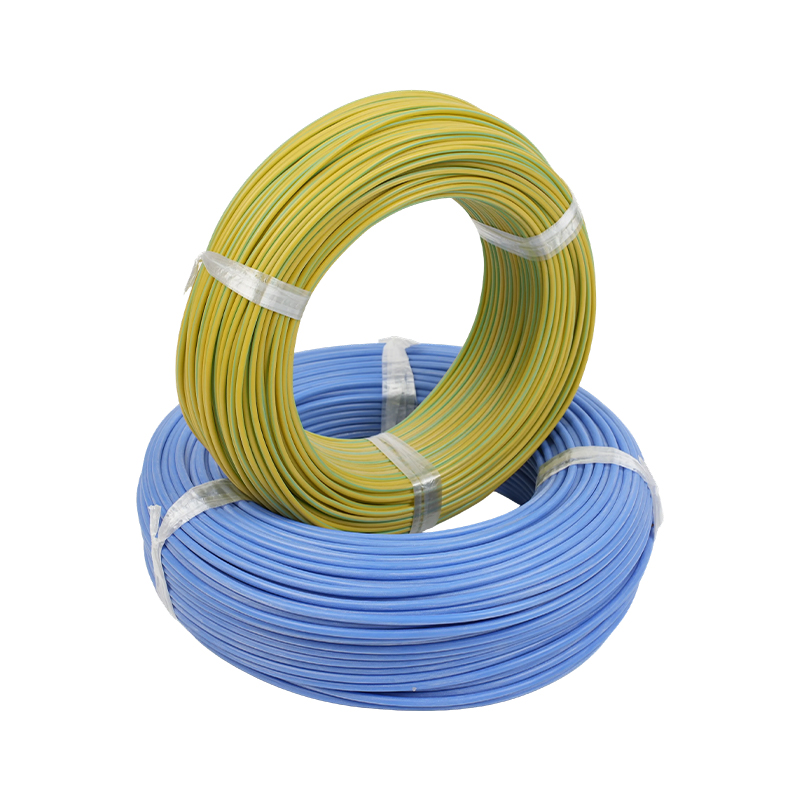

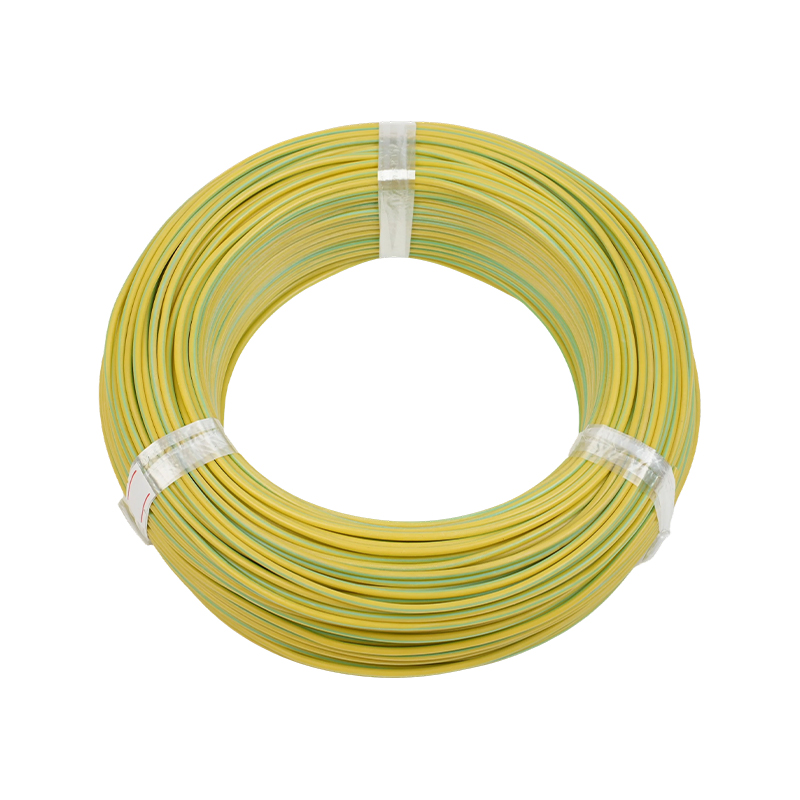

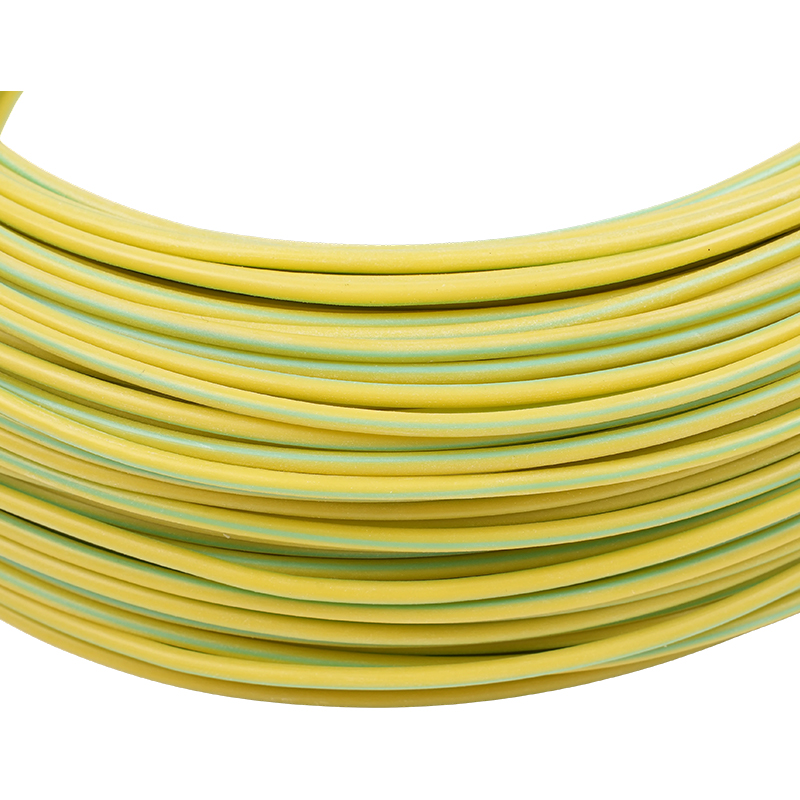

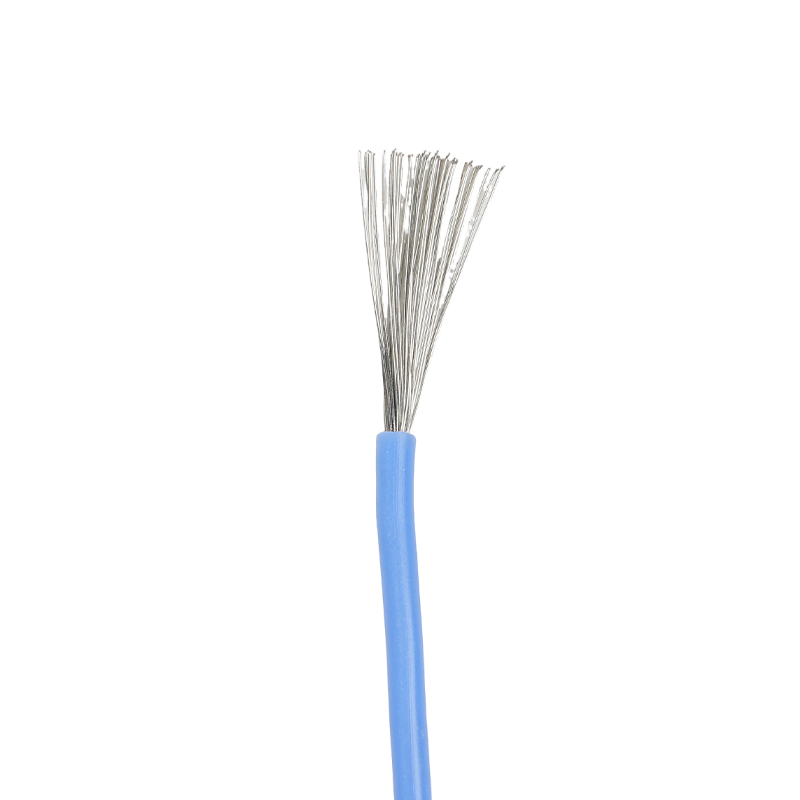

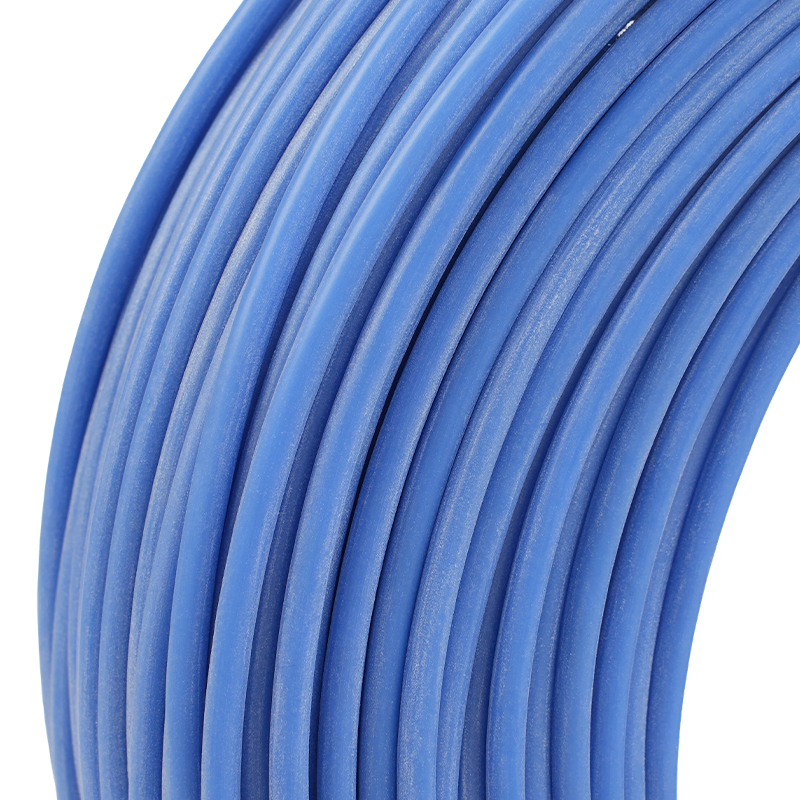

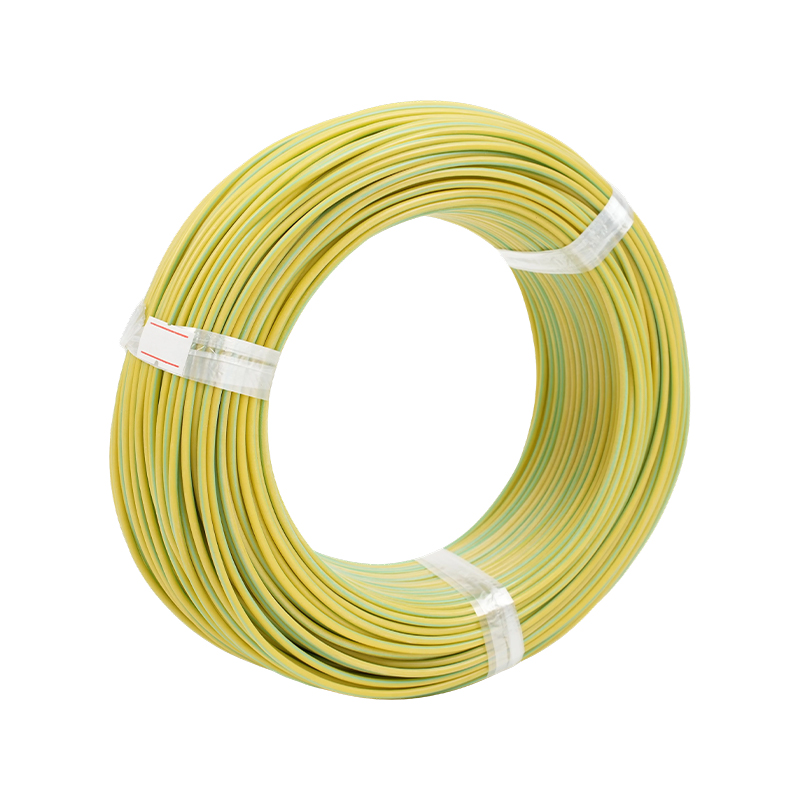

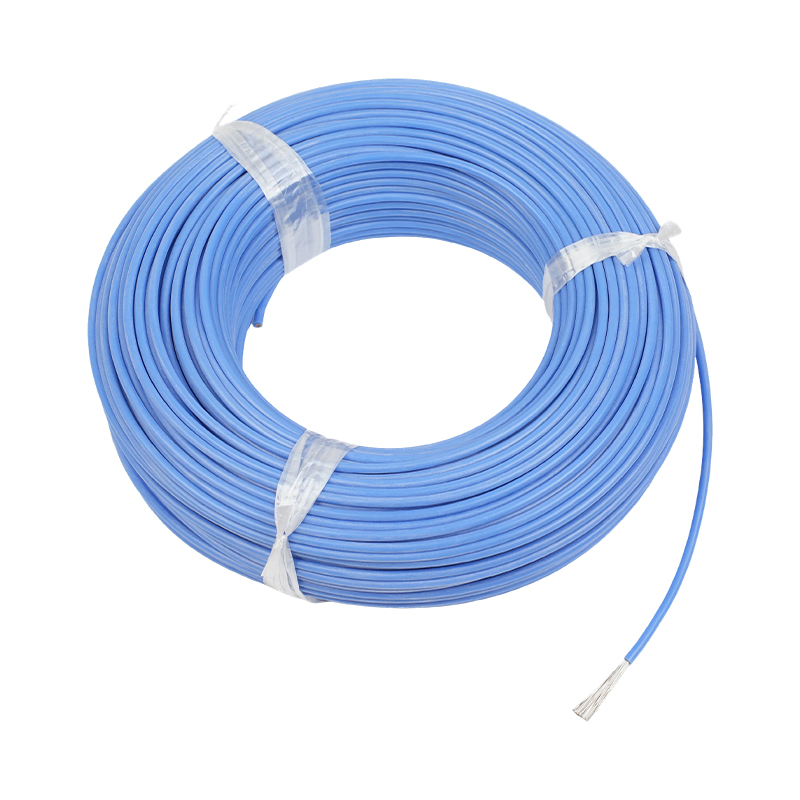

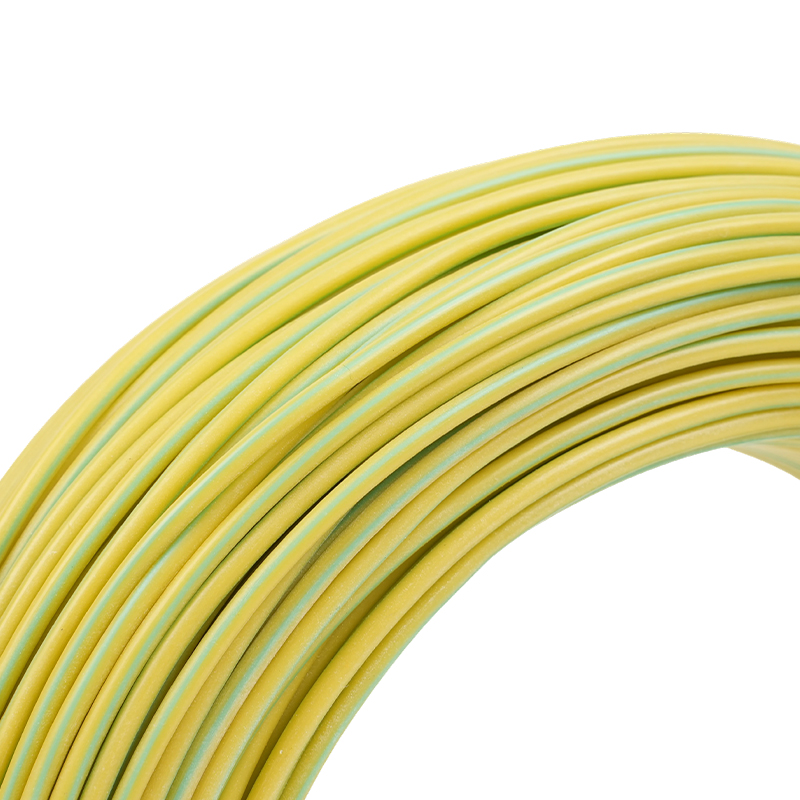

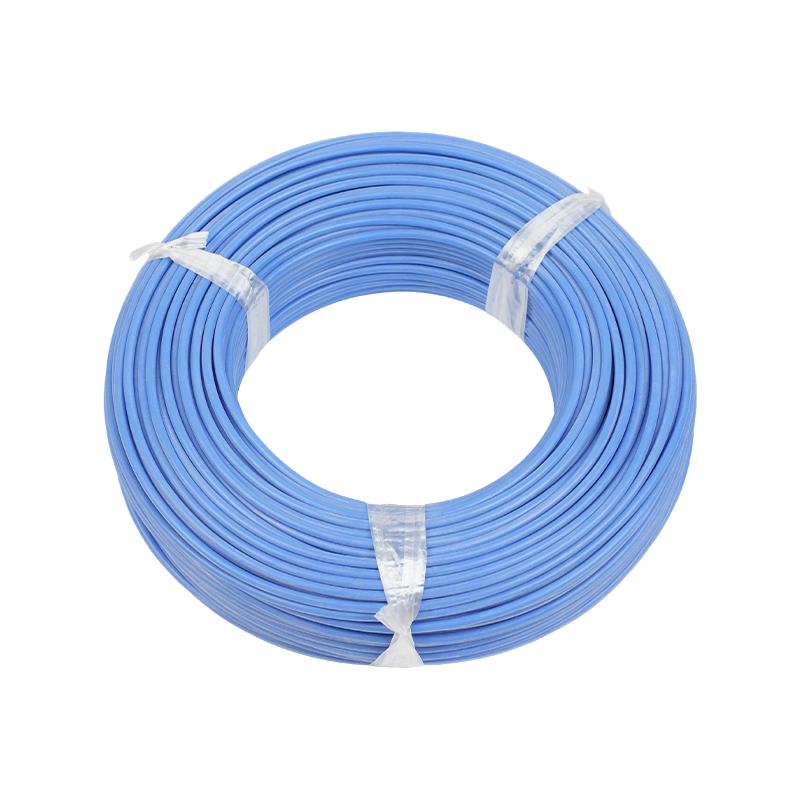

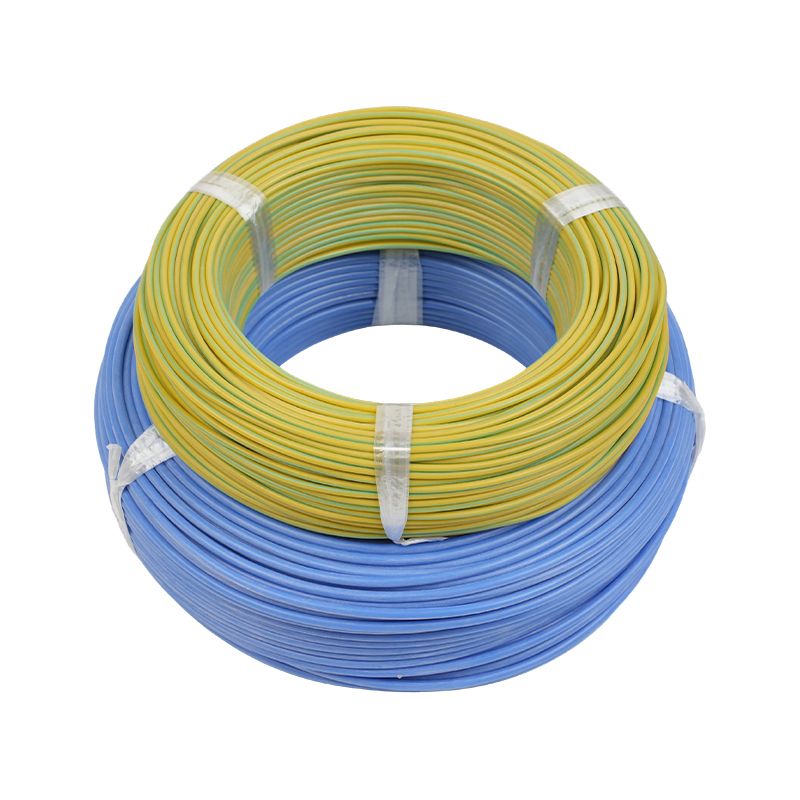

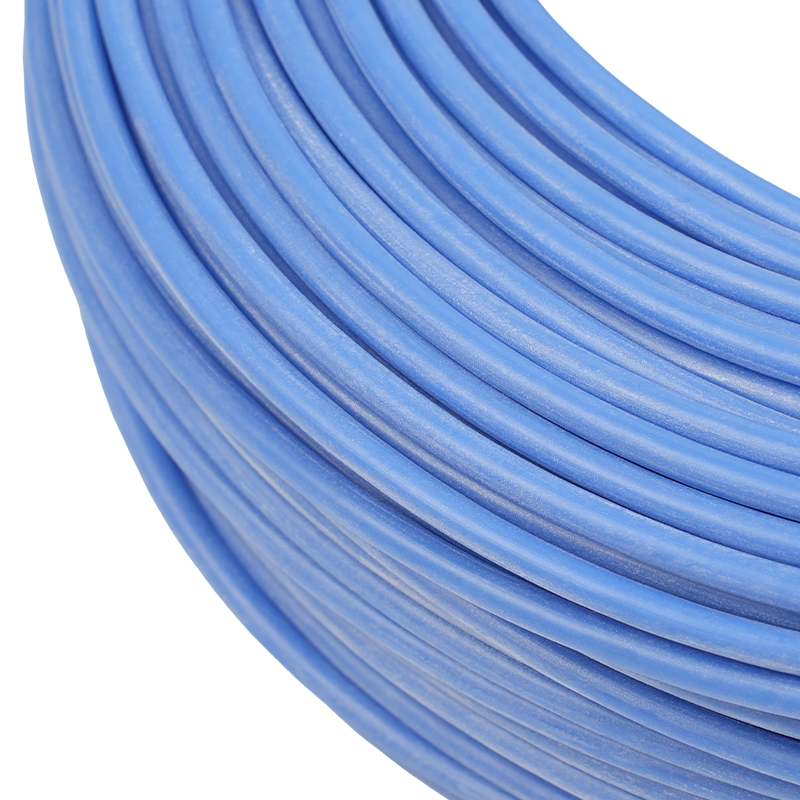

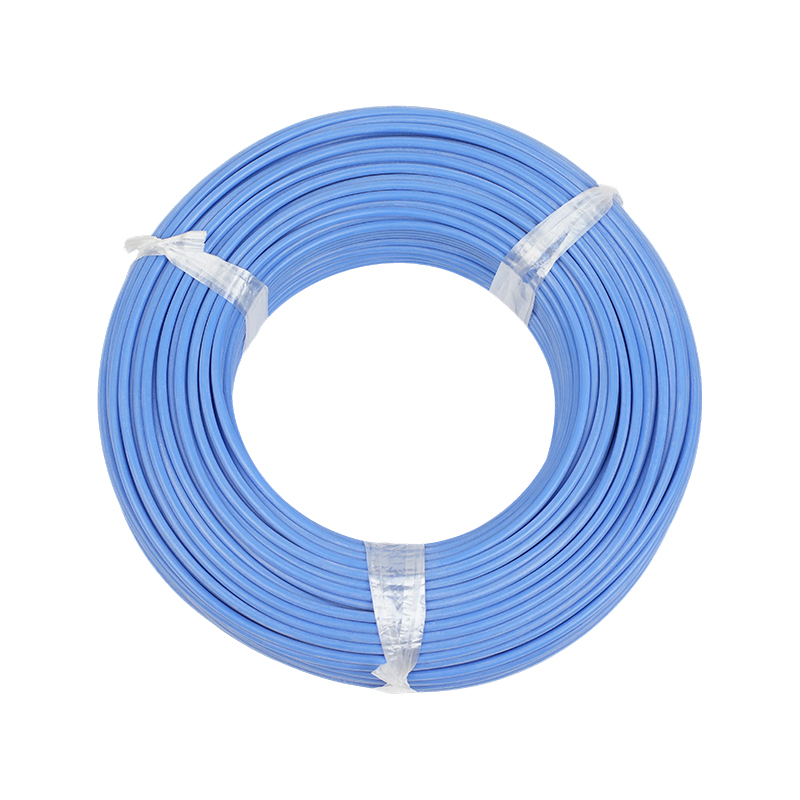

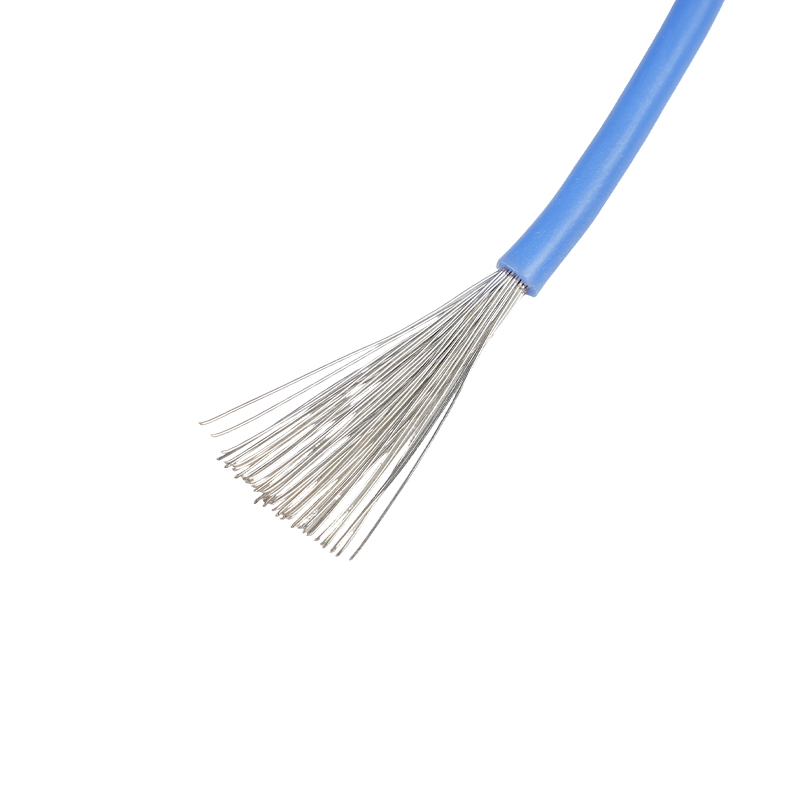

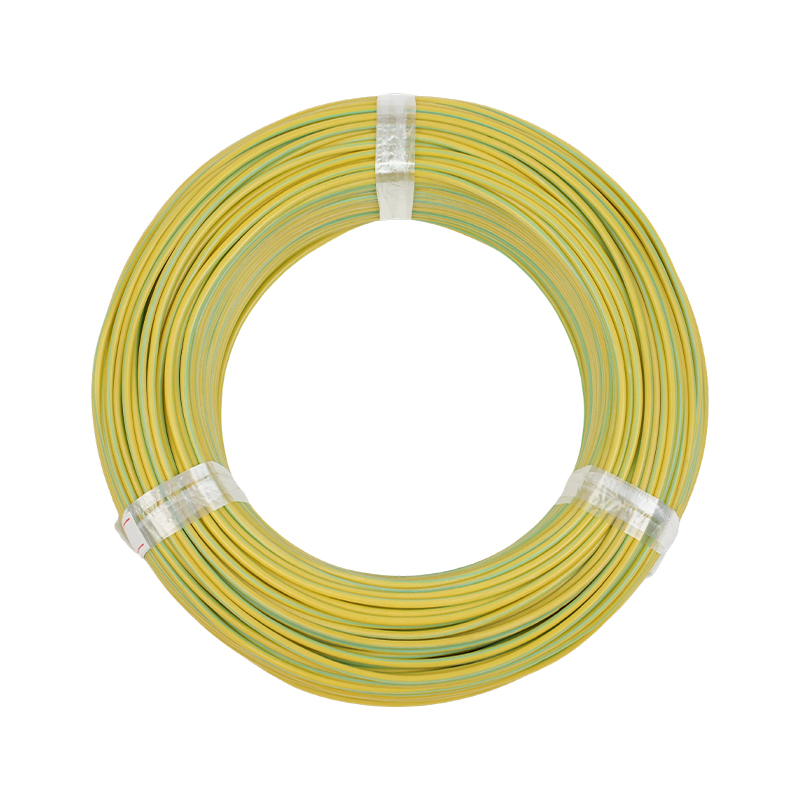

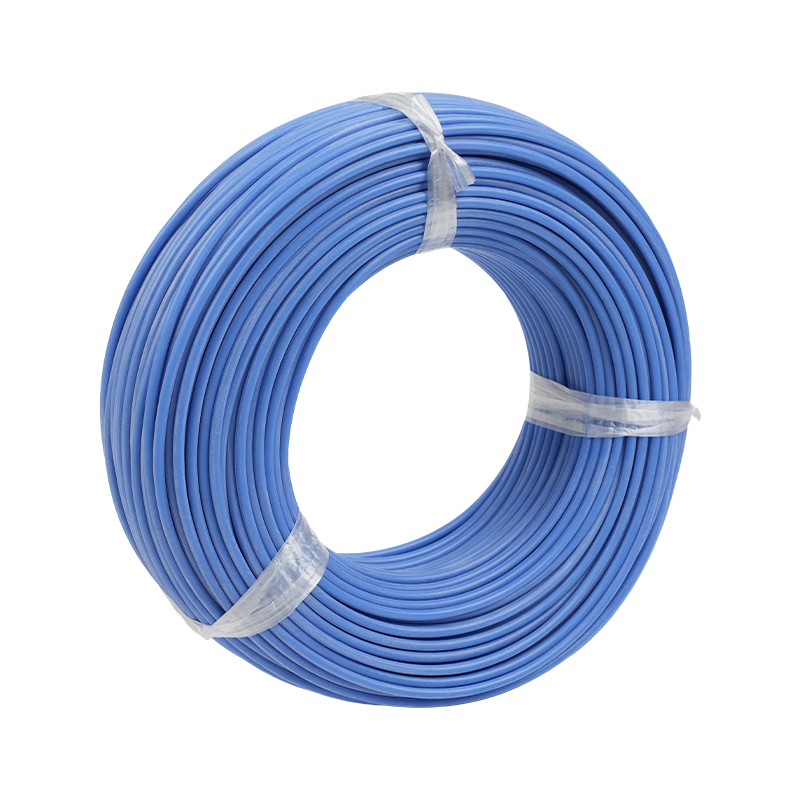

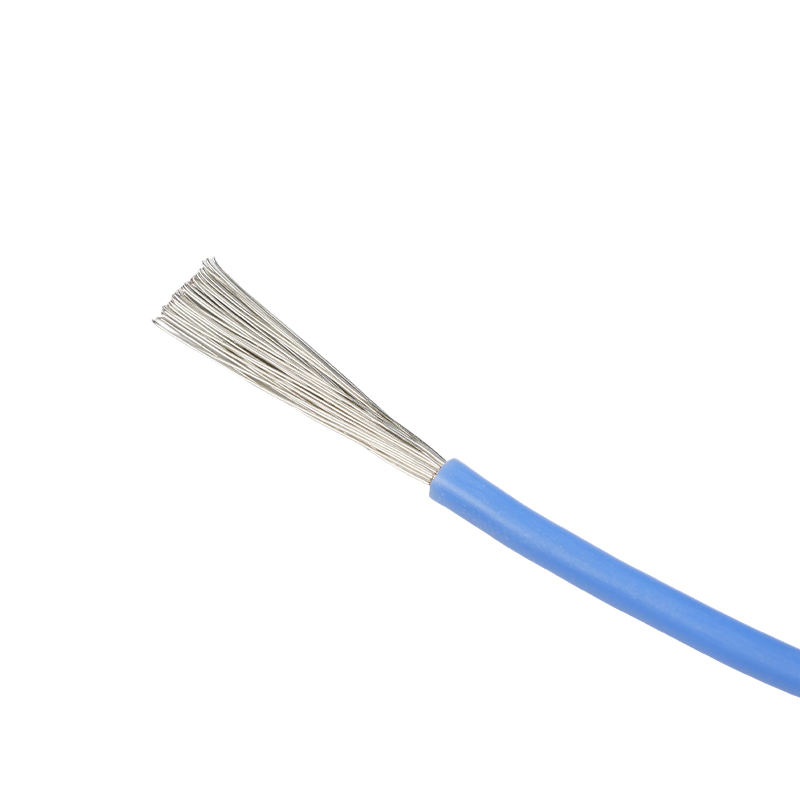

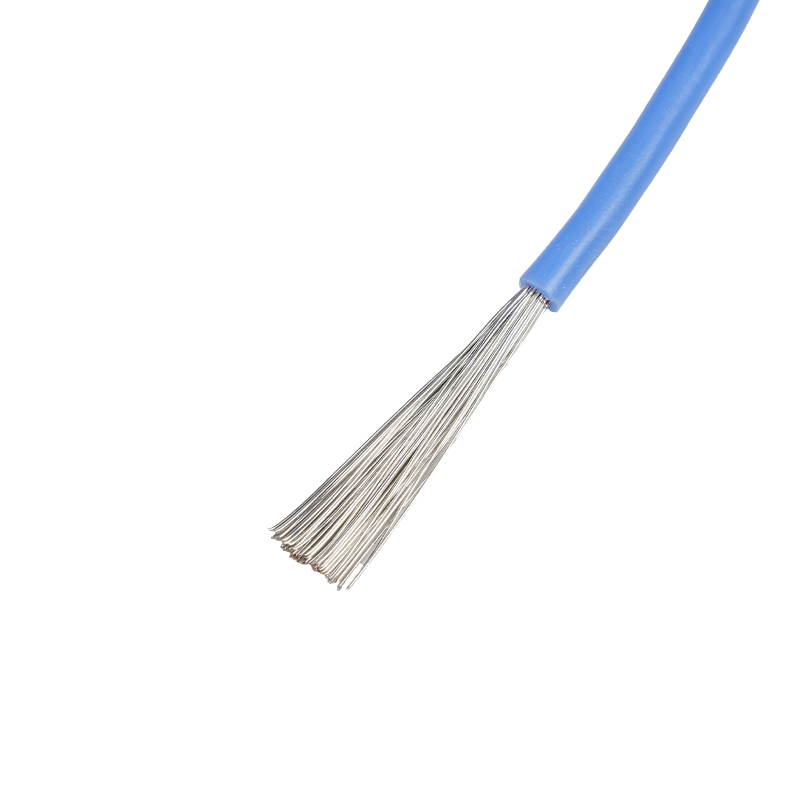

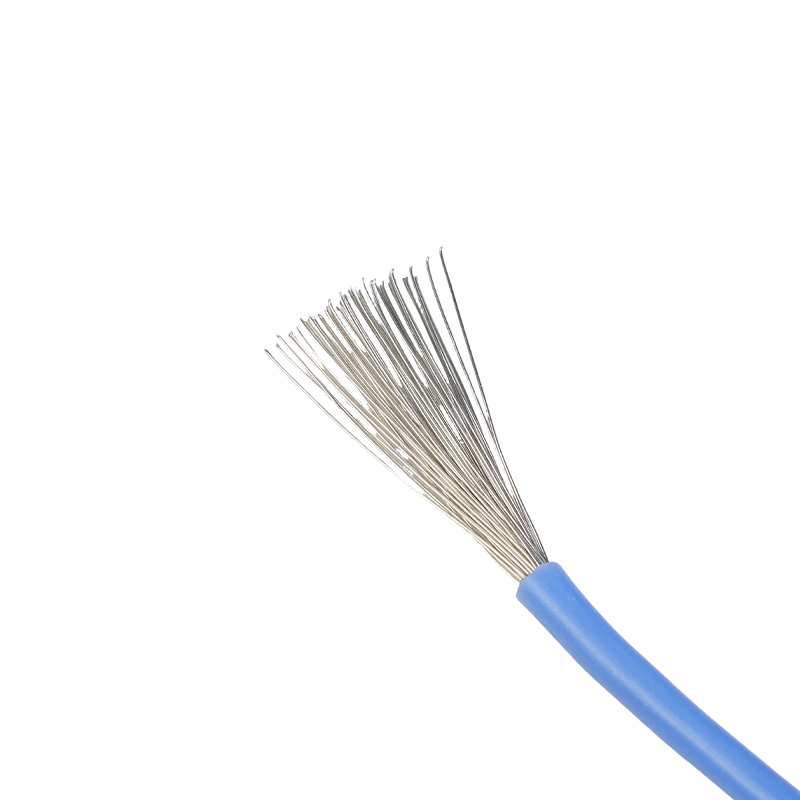

UL Silicone Rubber Insulated Wire

Product Features
Temperature Stability: Silicone rubber insulation provides excellent stability at both high and low temperatures, maintaining consistent mechanical properties within the range of -60°C to 180°C (up to 200°C for some models).
Electrical Performance: Possesses superior electrical insulation properties, high voltage resistance, and aging resistance.
Chemical and Physical Properties: The cable is flexible, bend-resistant, and tough, with strong chemical stability, capable of resisting corrosion from a variety of chemical substances.

Application

Motor Industry:
Internal connection wiring for various motors.
Electronic Components:
Wiring for electronic ceramics and various heating elements.
Lighting and Luminaires:
Automotive lamps, general lighting fixtures, and ballasts, etc.
General Appliance Wiring:
Due to its stability at high and low temperatures (-60°C to 180°C/200°C) and chemical stability, it is suitable for various complex industrial and civil wiring environments.

Inquiry Now

PREV: UL Silicone Rubber Insulated & Braided Wire And Fiber

NEXT: UL Teflon Insulated Wire

Description
Tell Us Your Message

Type / Standard	AWG Gauge	Conductor Construction (No. x Φ mm)	Conductor Diameter (mm)	Insulation Wall Thickness (mm)	Finished Outer Diameter (mm)	Max. Conductor DC Resistance @ 20°C (Ω/km)	Packing (m/coil)
UL3132	16	7x0.50	1.5	0.39	2.28	14.6	305
	17	32x0.20	1.34	0.39	2.12	18.3	305
	18	7x0.40	1.2	0.39	1.98	23.2	305
	20	7x0.32	0.96	0.39	1.74	36.7	305
	22	7x0.26	0.78	0.39	1.56	59.4	610
	24	7x0.20	0.6	0.39	1.38	94.2	610
	26	7x0.16	0.48	0.39	1.26	150	610
	28	7x0.12	0.36	0.39	1.14	239	610
UL3135	12	49x0.30	2.7	0.78	4.26	5.64	305
	14	40x0.26	1.9	0.78	3.46	8.96	305
	16	7x0.50	1.5	0.78	3.06	14.6	305
	17	32x0.20	1.34	0.78	2.9	18.3	305
	18	7x0.40	1.2	0.78	2.76	23.2	305
	20	7x0.32	0.96	0.78	2.52	36.7	305
	22	7x0.26	0.78	0.78	2.34	59.4	610
	24	7x0.20	0.6	0.78	2.16	94.2	610
	26	7x0.16	0.48	0.78	2.04	150	610
UL3140	20	7x0.32	0.96	1.59	4.14	36.7	305
	22	7x0.26	0.78	1.59	3.96	59.4	610
	24	7x0.20	0.6	1.59	3.78	94.2	610
	26	7x0.16	0.48	1.59	3.66	150	610
UL3142	12	49x0.30	2.7	1.59	5.88	5.64	305
	14	40x0.26	1.9	1.59	5.08	8.96	305
	16	7x0.50	1.5	1.59	4.68	14.6	305
	17	32x0.20	1.34	1.59	4.48	18.3	305
	18	7x0.40	1.2	1.59	4.38	23.2	305
	20	7x0.32	0.96	1.59	4.14	36.7	305
UL3529	12	49x0.30	2.7	0.78	4.26	5.64	305
	14	40x0.26	1.9	0.78	3.46	8.96	305
	16	7x0.50	1.5	0.78	3.06	14.6	305
	17	32x0.20	1.34	0.78	2.86	18.3	305
	18	7x0.40	1.2	0.78	2.76	23.2	305
	20	7x0.32	0.96	0.78	2.52	36.7	305
	22	7x0.26	0.78	0.78	2.34	59.4	610
	24	7x0.20	0.6	0.78	2.16	94.2	610
	26	7x0.16	0.48	0.78	2.04	150	610
	28	7x0.12	0.36	0.78	1.92	239	610
	30	7x0.10	0.3	0.78	1.86	381	610
UL3530	12	49x0.30	2.7	0.78	4.26	5.64	305
	14	40x0.26	1.9	0.78	3.46	8.96	305
	16	7x0.50	1.5	0.78	3.06	14.6	305
	17	32x0.20	1.34	0.78	2.86	18.3	305
	18	7x0.40	1.2	0.78	2.76	23.2	305
	20	7x0.32	0.96	0.78	2.52	36.7	305
	22	7x0.26	0.78	0.78	2.34	59.4	610
	24	7x0.20	0.6	0.78	2.16	94.2	610
	26	7x0.16	0.48	0.78	2.04	150	610
