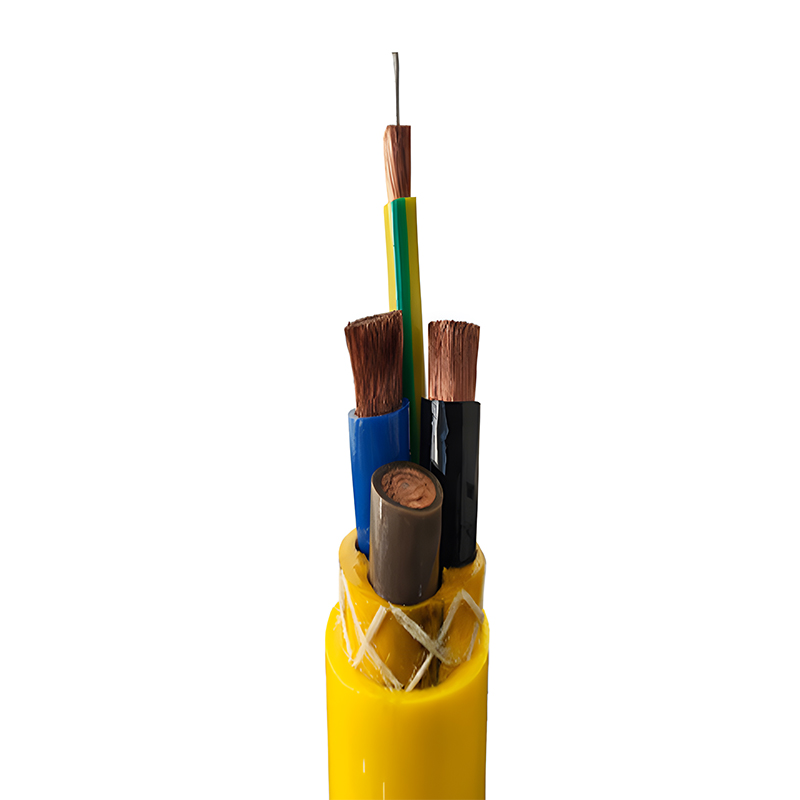

Parameter table of wires and cables for winches:
|
Model |
Specifications (Number of cores x cross-sectional area) |
Rated voltage |
Conductor materiaheavy-dutyl |
Insulation material |
Sheath materia |
Nominal cross-sectional area(mm²) |
Rated current (A) (ambient temperature 30°C) |
Minimum bending radius (times outer diameter) |
Operating temperature range |
Core wire color |
Applicable Scenarios |
Standards Compliance |
|
YC (heavy duty rubber sleeve) |
3×1.5+1×1.0 |
450/750V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
1.5/1.0 |
18(1.5mm²)/12(1.0mm²) |
6D (D is the outer diameter of the cable) |
-40℃~+60℃ |
Yellow, green, brown, blue |
Fixed installation or lightweight mobile winch |
GB/T 5013.4-2008 |
|
YC |
3×2.5+1×1.5 |
450/750V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
2.5/1.5 |
25(2.5mm²)/18(1.5mm²) |
6D |
-40℃~+60℃ |
Yellow, green, brown, blue |
Medium-sized winches (such as small tower cranes) |
GB/T 5013.4-2008 |
|
YC |
3×4+1×2.5 |
450/750V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
4/2.5 |
32(4mm²)/25(2.5mm²) |
6D |
-40℃~+60℃ |
Yellow, green, brown, blue |
Medium-sized mobile winches (such as lifting platforms) |
GB/T 5013.4-2008 |
|
YC |
3×6+1×4 |
450/750V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
6/4 |
40(6mm²)/32(4mm²) |
6D |
-40℃~+60℃ |
Yellow, green, brown, blue |
Heavy winches (such as port cranes) |
GB/T 5013.4-2008 |
|
YC |
3×10+1×6 |
450/750V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
10/6 |
60(10mm²)/45(6mm²) |
8D |
-40℃~+60℃ |
Yellow, green, brown, blue |
Extra heavy winches (such as mine hoisting) |
GB/T 5013.4-2008 |
|
YCW (outdoor heavy duty) |
3×16+1×10 |
450/750V |
Copper (T) |
Ethylene propylene rubber (EPR) |
Neoprene (CR) + UV protection agent |
16/10 |
80(16mm²)/60(10mm²) |
8D |
-40℃~+70℃ |
Yellow, green, brown, blue |
Outdoor open-air winches (such as construction sites) |
JB/T 8735.1-2016 (Outdoor type) |
|
YZ (medium rubber sleeve) |
3×2.5+1×1.5 |
300/500V |
Copper (T) |
Natural styrene-butadiene rubber (SBR) |
Neoprene (CR) |
2.5/1.5 |
25(2.5mm²)/18(1.5mm²) |
6D |
-40℃~+60℃ |
Yellow, green, brown, blue |
Light load mobile winch (such as small freight) |
GB/T 5013.4-2008 |
|
YH (welding machine cable) |
3×6+1×3 (multi-strand thin copper wire) |
600/1000V |
Copper (T) |
Polyvinyl chloride (PVC) |
Polyvinyl chloride (PVC) |
6/3 |
45(6mm²)/25(3mm²) |
10D |
-50℃~+70℃ |
Yellow, green, brown, blue (multi-strand soft wire) |
Highly flexible winch is required (such as precision lifting) |
GB/T 5013.6-2008 |
