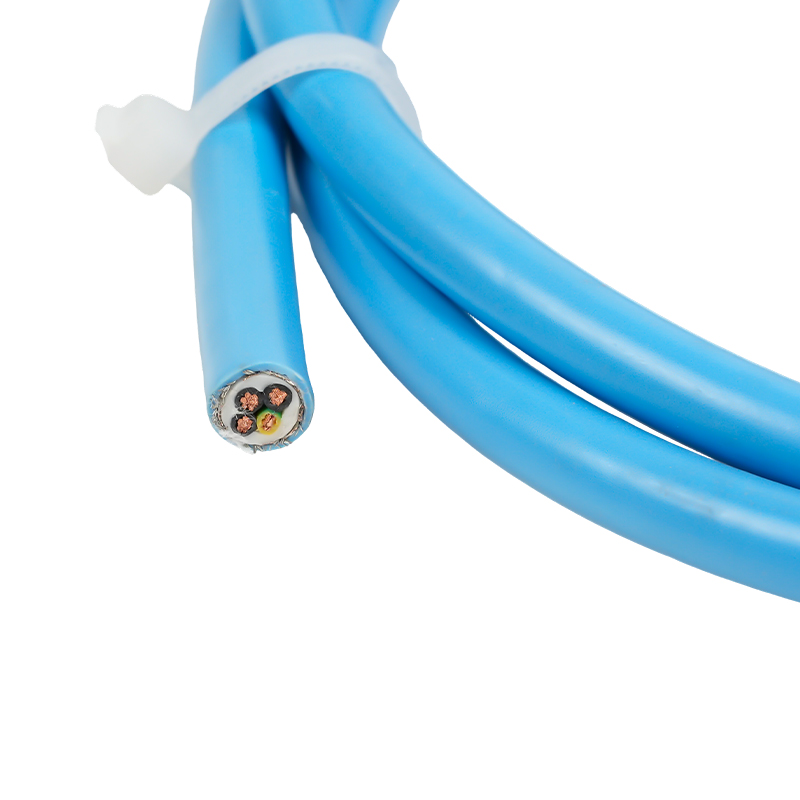

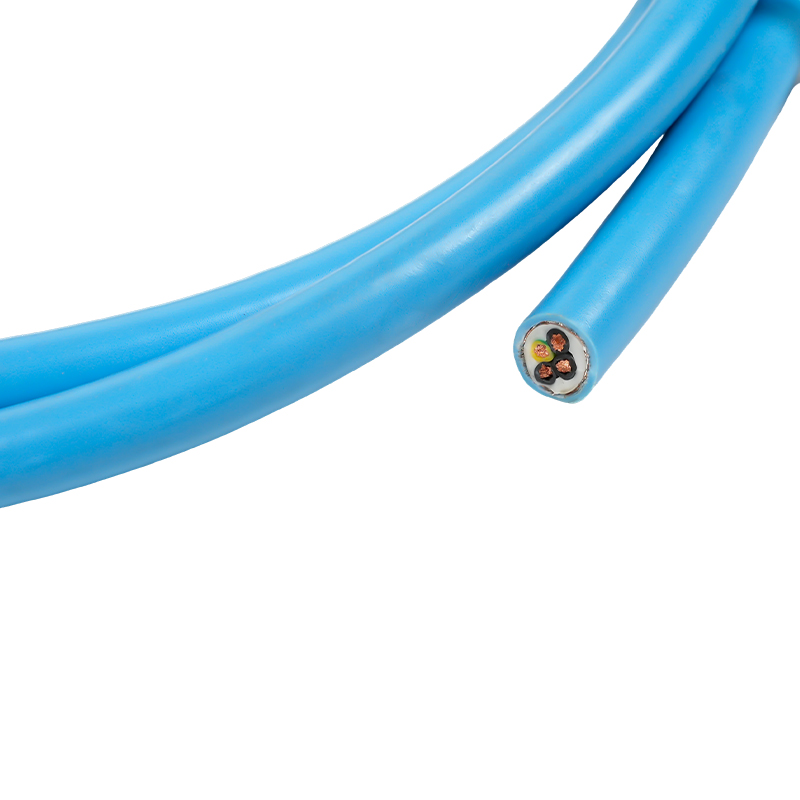

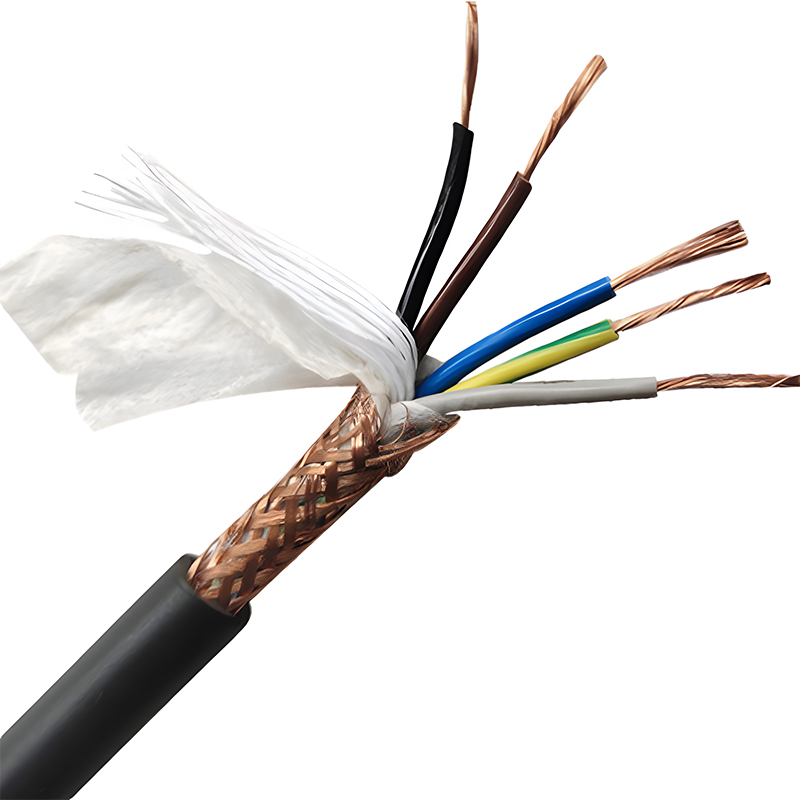

TRVVP high-performance multi-core dynamic drag chain cable


Manufacturing Process:
Rated Temperature: 105°C
Rated Voltage: 300V
Conductor Material: Stranded bare copper conductor
Insulation: 105°C special lead-free heat-resistant PVC blend
Shielding: Tinned copper wire braid
Outer Jacket: 105°C flexible lead-free heat-resistant PVC blend (matte finish)

Product Features:
Minimum Bend Radius: Mobile Installation: 7.5 x D (<4.0 mm²); 8 x D (<4.0 mm²)
Fixed Installation: 4 x D
Operating Temperature: Mobile Installation: -5°C to 105°C
Fixed Installation: -40°C to 105°C
Flame Retardant: VW-1 IEC60332-1
Hazardous Substance Free: ROHS
Drag chain lifespan >5 million cycles, drag and oil resistance, high flexibility, abrasion resistance, oil resistance, standard insulation thickness, easy cutting and stripping.

Applications:
Mainly used for power transmission cables in equipment such as machine tools, robotic system integration, and industrial automation, where they are subject to long-term reciprocating motion in drag chains.

Inquiry Now
  • Specifications, structure, and technical parameters:

    Cross-sectional area(mm²)

    Specification

    (No/mm)

    Core wire diameter

    (mm)

    Finished outer diameter

    (mm)

     2*0.5

    2*105/0.08

    1.70

    5.50

     3*0.5

    3*105/0.08

    1.70

    5.80

     4*0.5

    4*105/0.08

    1.70

    6.30

     2*0.75

    2*154/0.08

    1.90

    5.90

     3*0.75

    3*154/0.08

    1.90

    6.10

     4*0.75

    4*154/0.08

    1.90

    6.80

     2*1.0

    2*203/0.08

    2.10

    6.30

    3*1.0

    3*203/0.08

    2.10

    6.70

    4*1.0

    4*203/0.08

    2.10

    7.30

    2*1.5

    2*301/0.08

    2.40

    7.00

    3*1.5

    3*301/0.08

    2.40

    7.50

    4*1.5

    4*301/0.08

    2.40

    8.10

    2*2.5

    2*497/0.08

    3.20

    8.70

    3*2.5

    3*497/0.08

    3.20

    9.70

    4*2.5

    4*497/0.08

    3.20

    10.4

       Note: We can produce products of various specifications according to customer needs.
