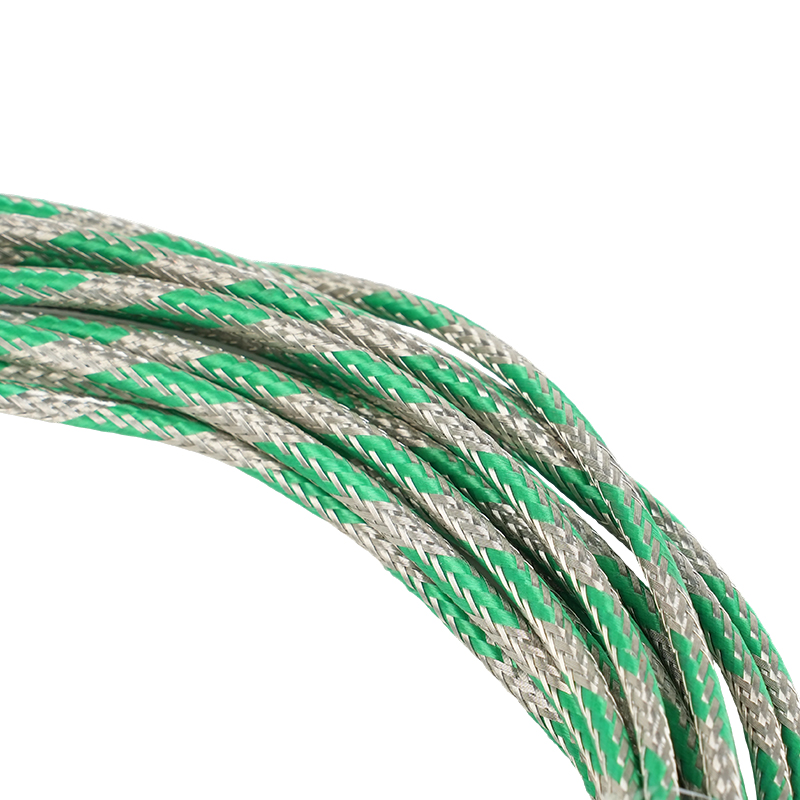

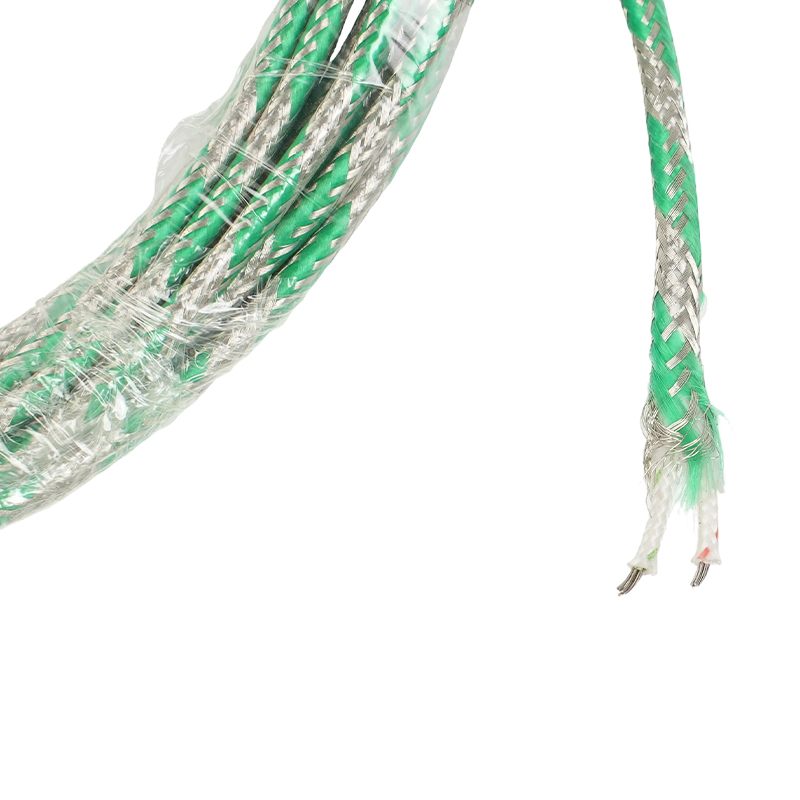

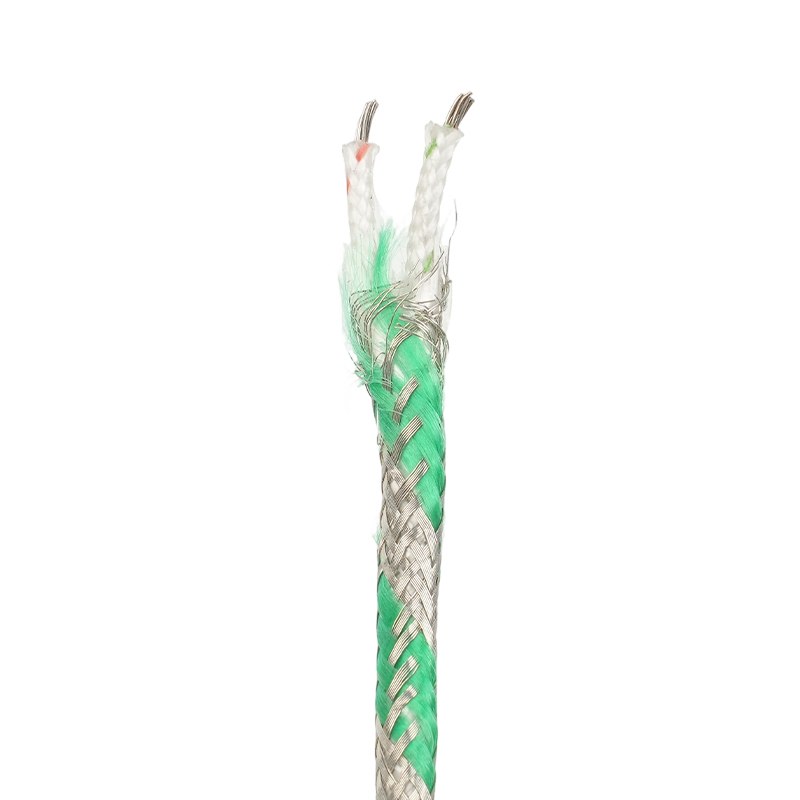

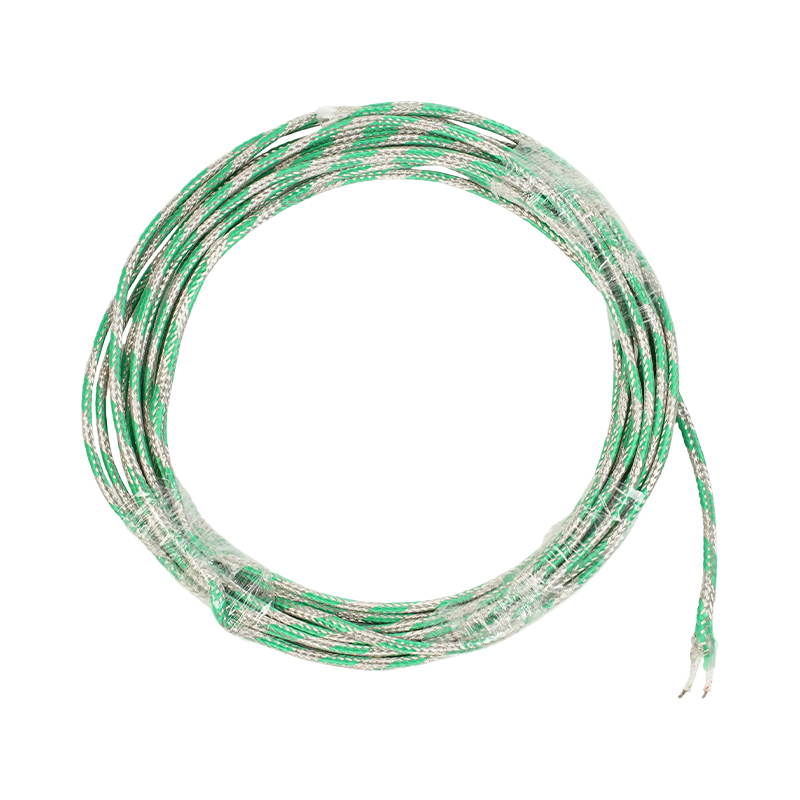

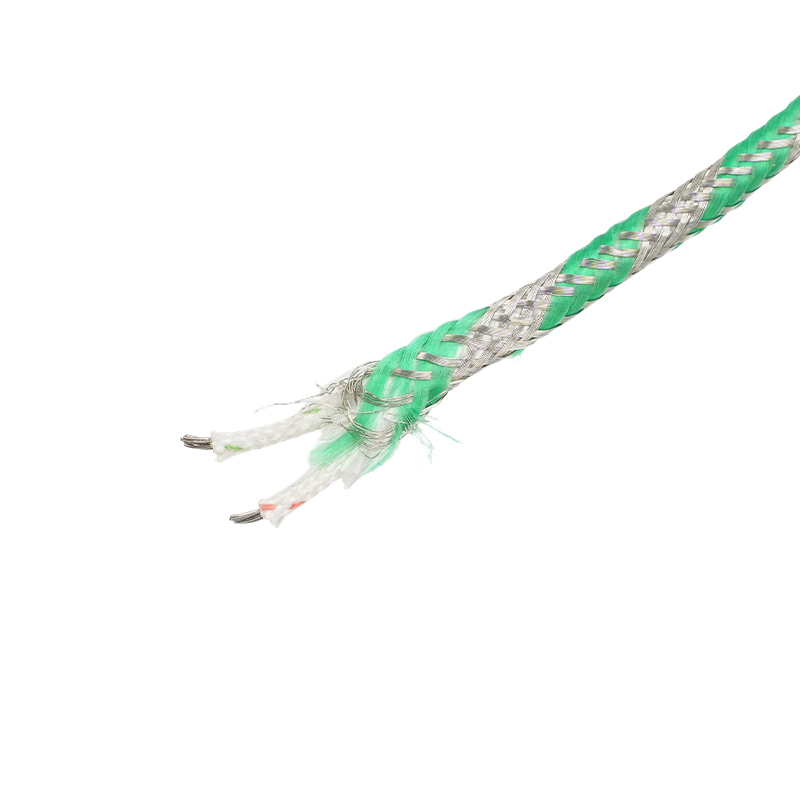

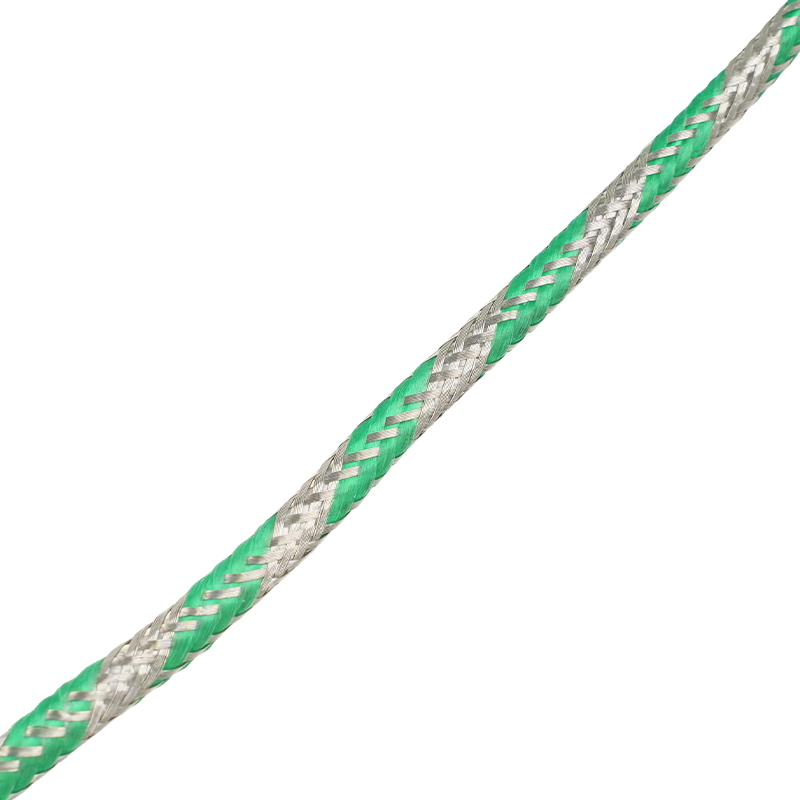

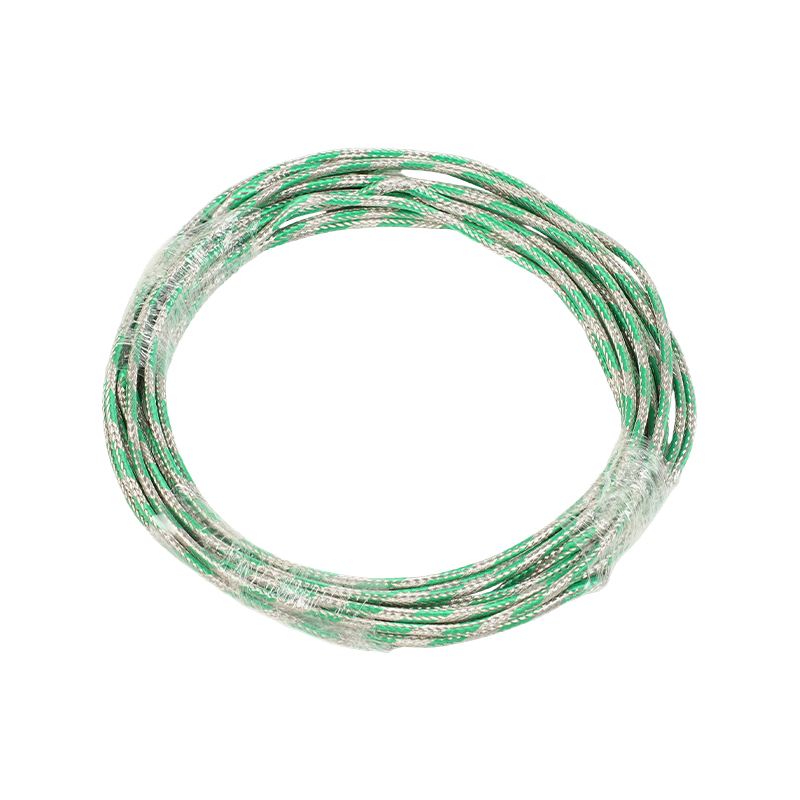

Single-core KC flat silicone insulated thermocouple wire


Production Process:
Rated Temperature: -65°C to +105°C, 180°C, 200°C, 350°C, 500°C, 1000°C
Conductor Material: Single or multi-strand twisted alloy wire
Rated Voltage: 300V/500V
Insulation Material: PVC, fluoroplastic, silicone rubber, glass fiber, quartz fiber, etc.
Color: Red, yellow, blue, white, black, green, brown, orange, purple, yellow-green, transparent, etc.
Shielding Material: Silver-plated copper wire, tinned copper wire, stainless steel wire
Sheath Material: PVC, fluoroplastic, silicone rubber, glass fiber, quartz fiber, etc.

Application:
Applicable to various temperature measurement devices in the petroleum, chemical, metallurgical, and power industries

Inquiry Now
  •  Specifications, structure and technical parameters:

    Model

    Graduation number of the thermocouple

    Compensation wire alloy wire

    Insulation coloring

    Positive Conductor

    Negative Conductor

    Positive Conductor

    Negative Conductor

    KC

    K(Copper-Constantan)

    KPC(Copper)

    KNC(Copper Nickel)

    Red

    Orchid



    Cross-sectional area

     (mm²)

    Single strand core

    Multi-strand wire core

    Insulation layer thickness(mm)

    Sheath thickness(mm)

    Wire core number(Piece)

    Single wire diameter(mm)

    Wire core number(Piece)

    Single wire diameter(mm)

    0.2

    1

    0.50

    7

    0.20

    0.40

    0.30

    0.5

    1

    0.80

    7

    0.30

    0.40

    0.30

    1.0

    1

    1.13

    7

    0.43

    0.40

    0.30

    1.5

    1

    1.37

    7

    0.52

    0.40

    0.30

    2.5

    1

    1.76

    19

    0.41

    0.40

    0.30
