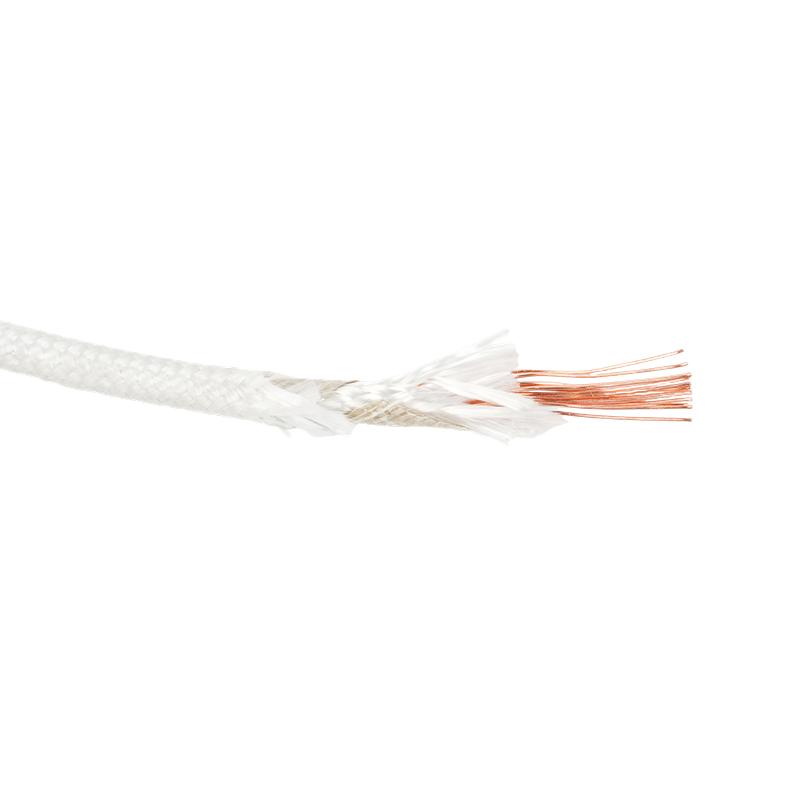

GN500-01 Stranded Bare Copper Wire, Mica Fire-Resistant Wire


Production Process:
Conductor: Stranded bare copper wire
Insulation: Glass fiber braid + fluorphlogopite tape + glass fiber braid
Temperature range: -60°C to +350°C, temporarily up to 500°C
Rated voltage: 500V
Color: White
Compliant standard: Q/IRMV5-2009

Features:
Fixed installation, flame-activated, no harmful or toxic gases.

Applications:
This product is suitable for use in various electrical installations requiring fire resistance in special environments such as metallurgy, thermal engineering, petroleum, chemical engineering, natural gas, and kerosene.

Delivery Requirements:
Short lengths of at least 10 meters are permitted, as agreed upon in the contract. The quantity should not exceed 10% of the total length delivered.

Inquiry Now
  • Specifications, Structure, and Technical Parameters:


    Nominal cross-section
    (mm2)

    Nominal cross-section
    Number of wires/wire diameter(mm)

    Insulation thickness
    (mm)

    Outer diameter control
    (mm)

    DC resistance of conductor at 20°C
    (Ω/km)

    Packaging length
    (m)

    0.5

    7 × 0.30

    0.5

    2.3 ± 0.3

    40.8

    200

    0.75

    11 × 0.30

    0.5

    2.5 ± 0.3

    24.3

    200

    1

    14 × 0.30

    0.5

    2.6 ± 0.3

    20.0

    200

    1.5

    21 × 0.30

    0.5

    2.9 ± 0.3

    12.6

    100

    2

    28 × 0.30

    0.6

    3.3 ± 0.5

    9.84

    100

    2.5

    35 × 0.30

    0.6

    3.6 ± 0.5

    7.37

    100

    4

    56 × 0.30

    0.8

    4.7 ± 0.5

    4.83

    100

    6

    84 × 0.30

    0.8

    5.5 ± 0.5

    3.26

    100

    10

    84 × 0.40

    0.8

    6.6 ± 0.5

    1.80

    100

    16

    228 × 0.30

    0.8

    7.8 ± 0.5

    1.31

    100

    126 × 0.40

    0.8

    7.8 ± 0.5

    1.31

    100

    25

    196 × 0.40

    0.8

    9.5 ± 0.5

    0.758

    100

    361 × 0.30

    0.8

    9.5 ± 0.5

    0.758

    100

    35

    494 × 0.30

    1.0

    11.2 ±1.0

    0.548

    100

    50

    396 × 0.40

    1.2

    13.2 ±1.0

    0.384

    100

    703 × 0.30

    1.2

    13.2 ±1.0

    0.384

    100

    70

    551 × 0.40

    1.2

    15.4 ±1.0

    0.289

    100

    988 × 0.30

    1.2

    15.4 ±1.0

    0.289

    100

    95

    760 × 0.40

    1.2

    17.4 ±1.0

    0.205

    100

    Note: Products of other specifications can be produced based on the agreement between the supplier and the buyer.
