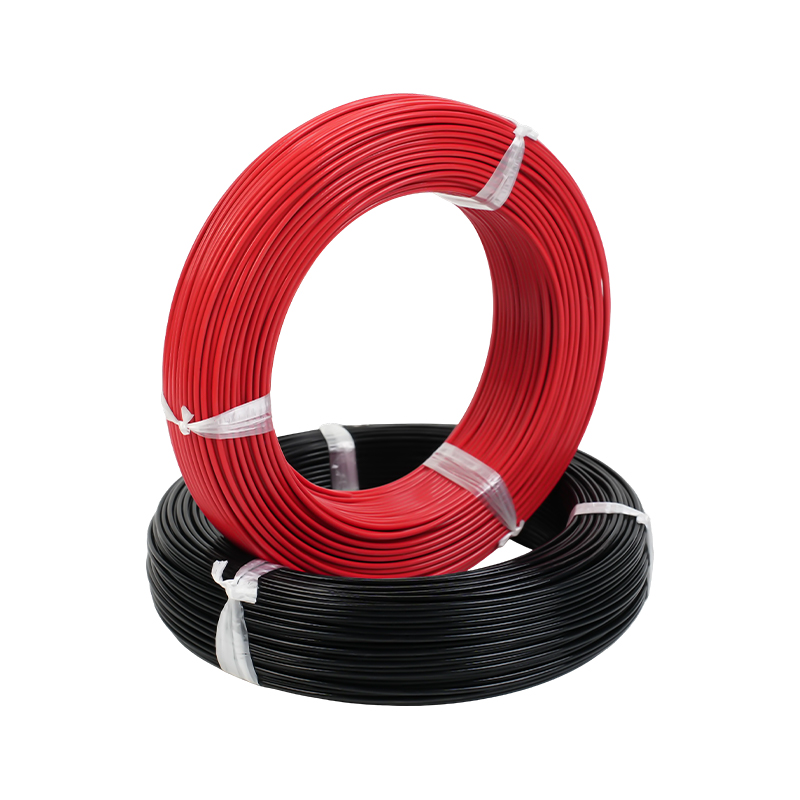

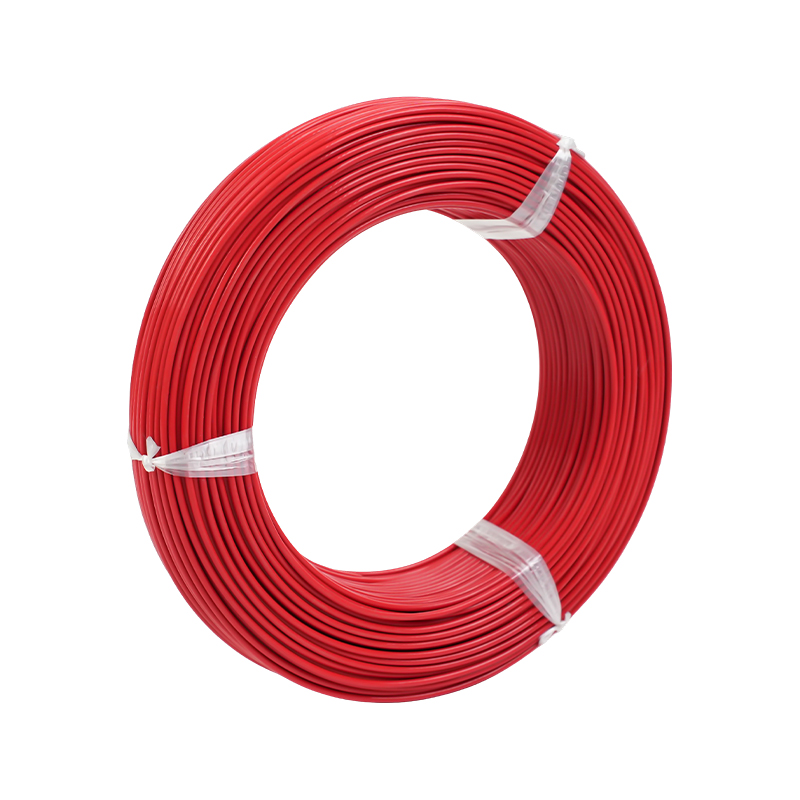

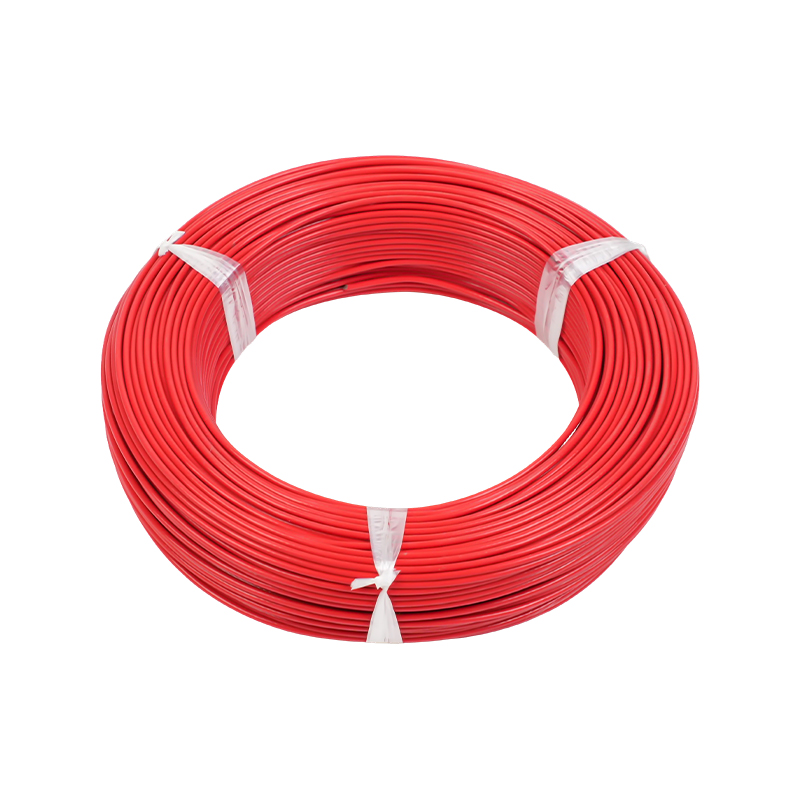

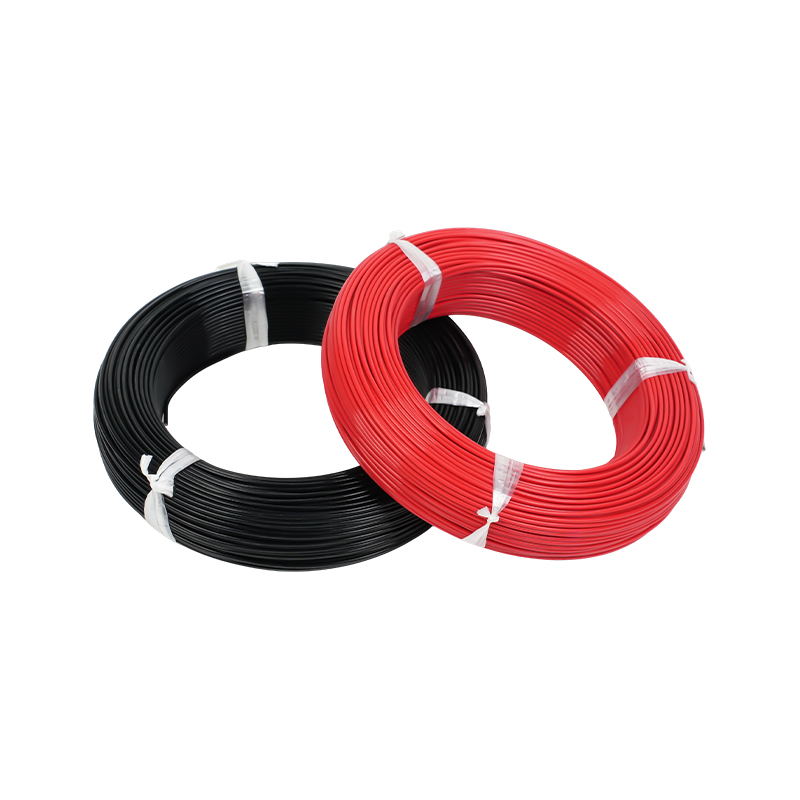

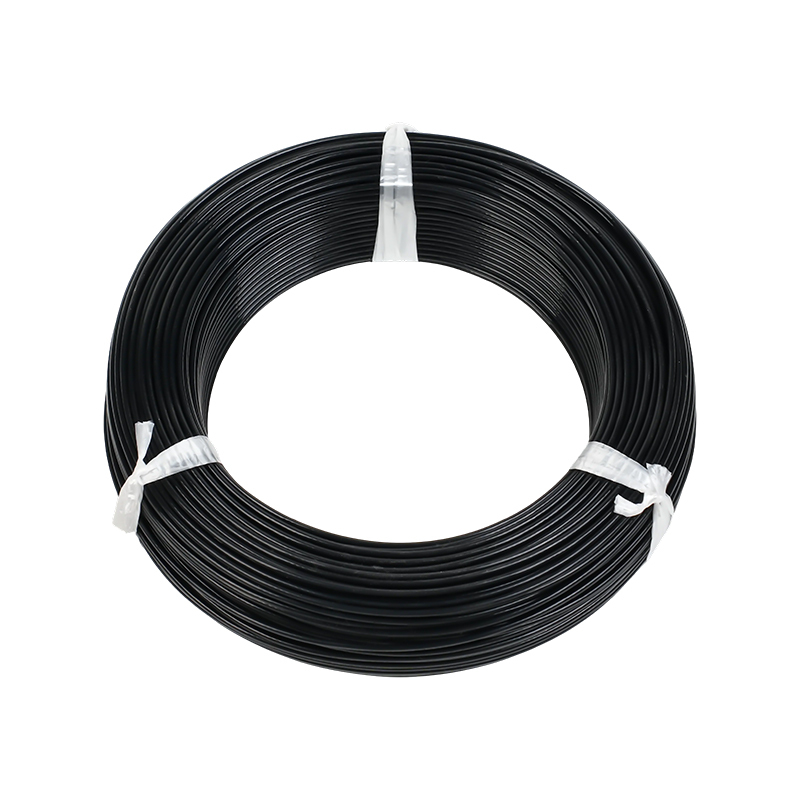

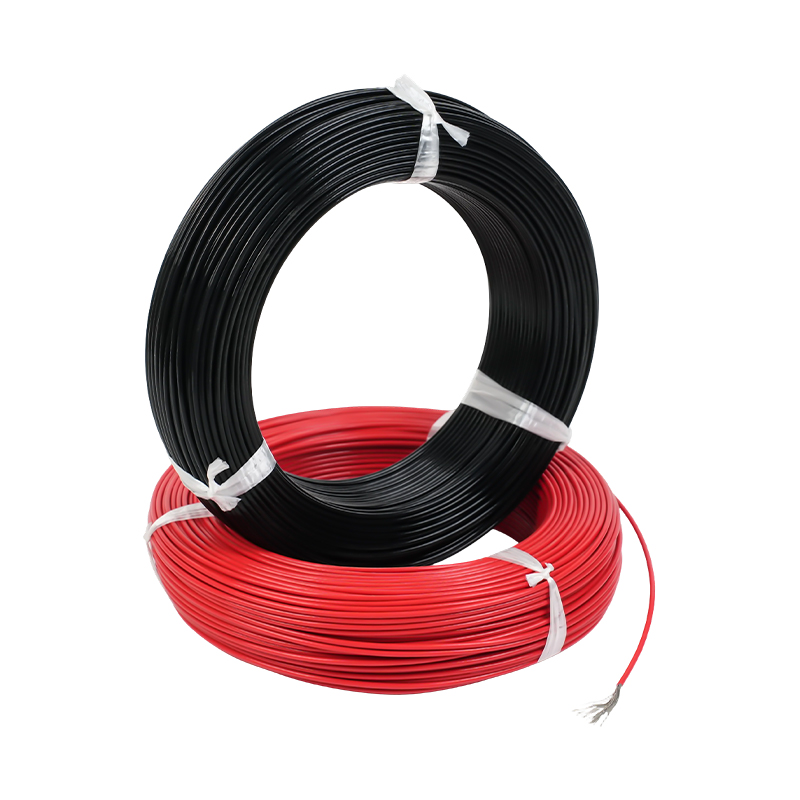

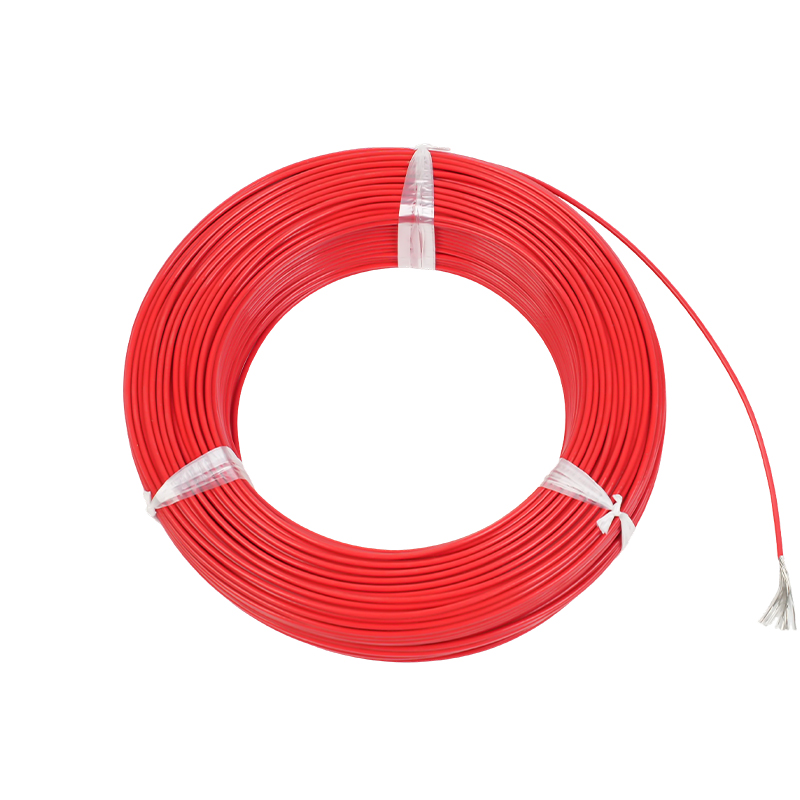

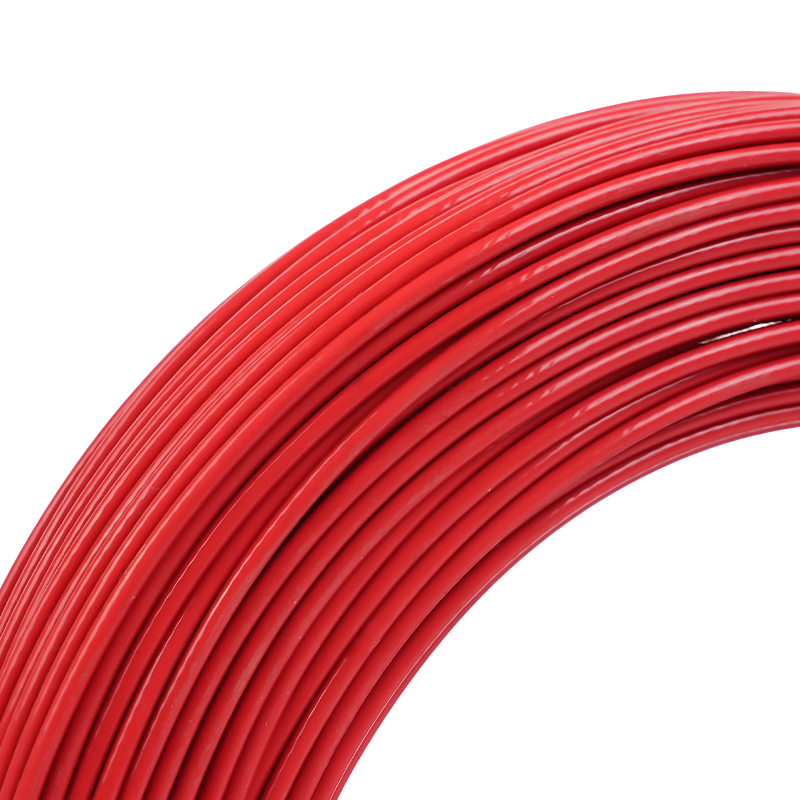

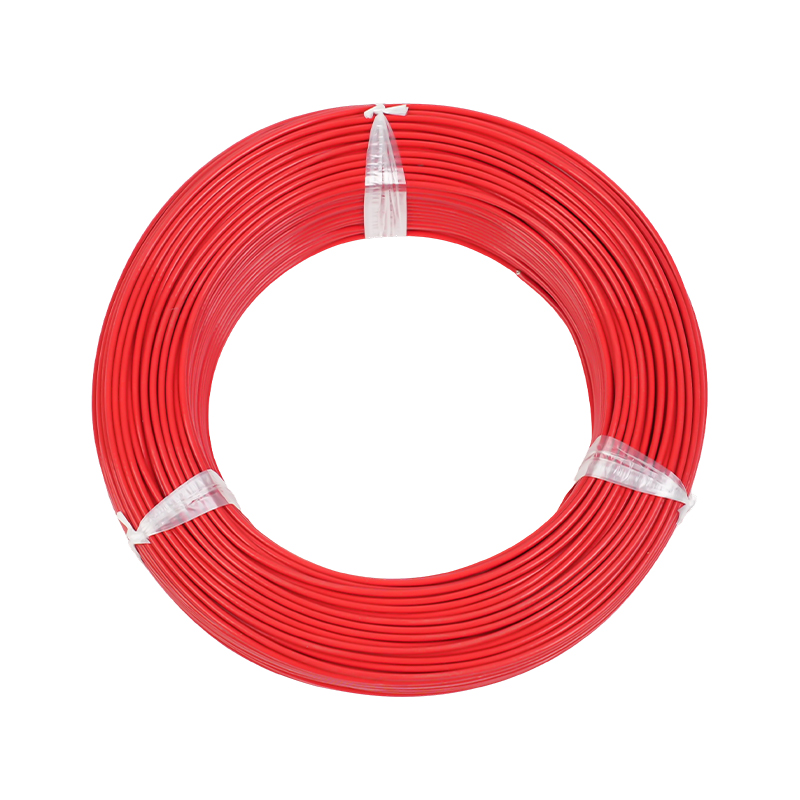

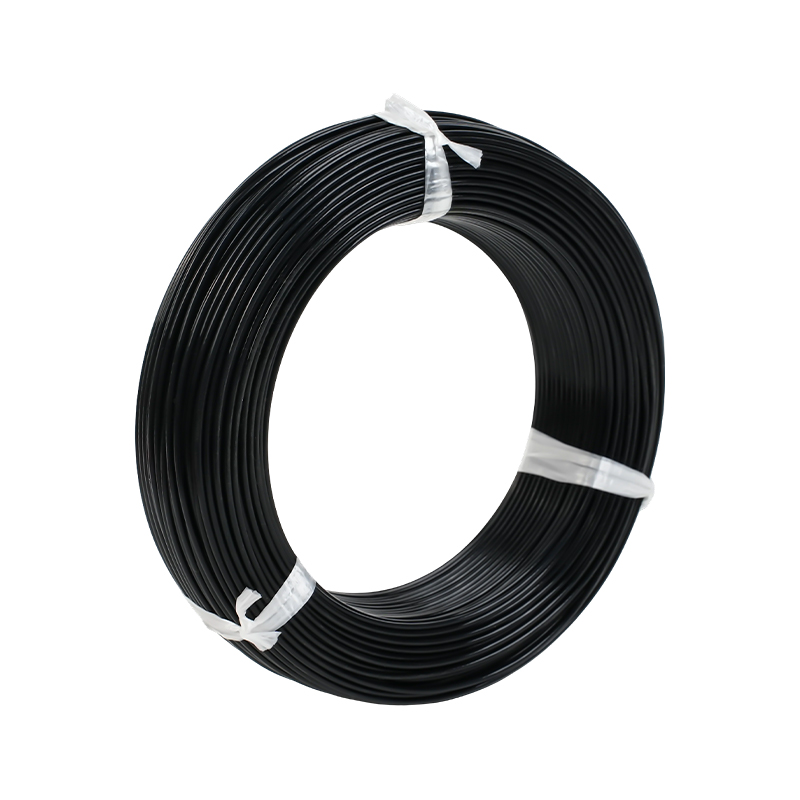

UL Teflon Insulated Wire

Product Features
Physical Properties: Rigid texture, non-adhesive, easy to shape, and easy to strip.
Resistance Properties: High resistance to high temperatures, flame, moisture, mildew, abrasion, acids, alkalis, and corrosion.

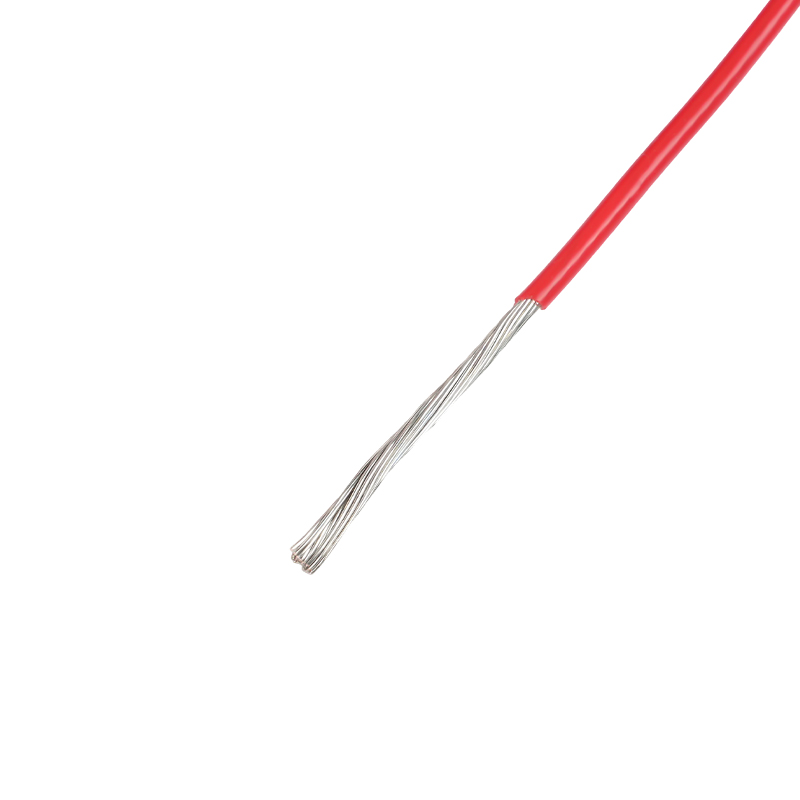

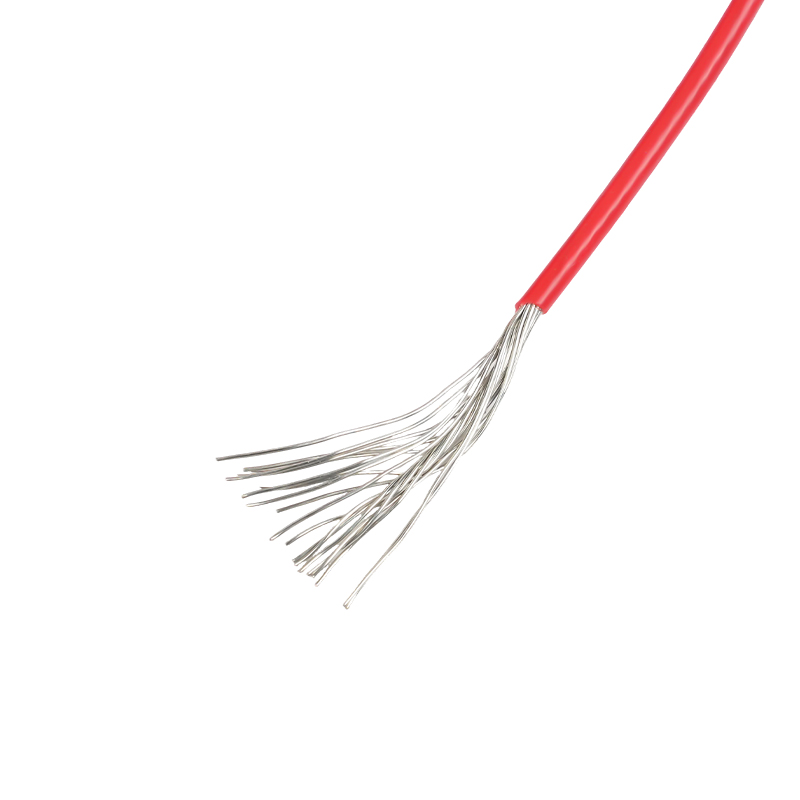

Electrical Performance: Utilizes high-quality tinned copper conductors; high load capacity ensures stable power transmission and long service life.

Application
These UL-certified Teflon cables are widely used in demanding environments:
Household Appliances: Various electric heating appliances.
Lighting Fixtures: Particularly cold light source luminaires.
Industrial Components: Small motors, electromagnetic coils.
Precision Sensing: Temperature sensors.
Transportation and Electronics: Internal automotive wiring, internal connections for electronic appliances, etc.

Technical Specifications Details
Color Options: Available in a variety of colors, including white, blue, red, black, brown, yellow, green, transparent, and yellow-green.
Conductor Construction: Available in wire gauges ranging from 30 AWG to 10 AWG to meet various current carrying capacity requirements.
Certification: The company obtained UL certification in 2013; products comply with relevant standards.

Inquiry Now

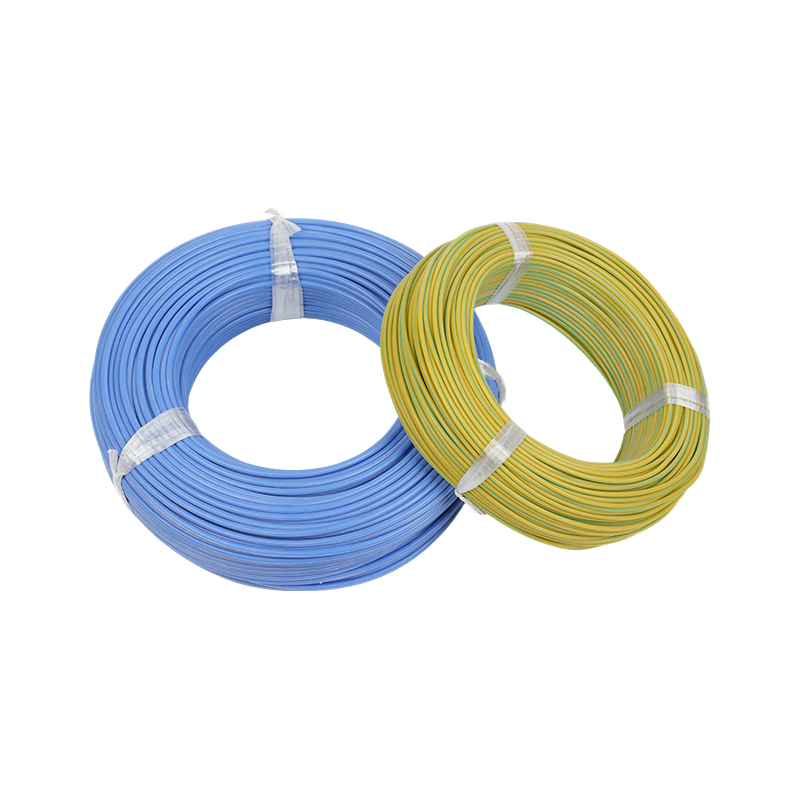

PREV: UL Silicone Rubber Insulated Wire

NEXT: No next article

Description
Tell Us Your Message

Type / Standard	AWG Gauge	Conductor Construction (No. x Φ mm)	Conductor Diameter (mm)	Insulation Wall Thickness (mm)	Finished Outer Diameter (mm)	Max. Conductor DC Resistance @ 20°C (Ω/km)	Packing (m/coil)
UL1330 / 1331	10	37x0.43	3.01	0.51	4.03	3.546	305
	12	19x0.49	2.45	0.51	3.47	5.64	305
	14	19x0.37	1.85	0.51	2.87	8.96	305
	16	19x0.30	1.5	0.51	2.52	14.6	305
	17	19x0.26	1.3	0.51	2.32	18.3	305
	18	19x0.23	1.15	0.51	2.17	23.2	305
	20	19x0.18	0.9	0.51	1.92	36.7	305
	20	1x0.80	0.8	0.51	1.82	35.2	305
	22	19x0.16	0.8	0.51	1.82	59.4	610
	22	1x0.65	0.65	0.51	1.67	56.4	610
	24	7x0.20	0.6	0.51	1.62	94.2	610
	24	1x0.50	0.5	0.51	1.52	89.3	610
	26	7x0.16	0.48	0.51	1.5	150	610
	26	1x0.40	0.4	0.51	1.42	143	610
	28	7x0.12	0.36	0.51	1.38	239	610
	28	1x0.32	0.32	0.51	1.34	227	610
	30	7x0.10	0.3	0.51	1.32	381	610
	30	1x0.254	0.254	0.51	1.274	361	610
UL1332 / 1333	10	37x0.43	3.01	0.33	3.67	3.546	305
	12	19x0.49	2.45	0.33	3.11	5.64	305
	14	19x0.37	1.85	0.33	2.51	8.96	305
	16	19x0.30	1.5	0.33	2.16	14.6	305
	17	19x0.26	1.3	0.33	1.96	18.3	305
	18	19x0.23	1.15	0.33	1.81	23.2	305
	20	19x0.18	0.9	0.33	1.56	36.7	305
	20	1x0.80	0.8	0.33	1.46	35.2	305
	22	19x0.16	0.8	0.33	1.46	59.4	610
	22	1x0.65	0.65	0.33	1.31	56.4	610
	24	7x0.20	0.6	0.33	1.26	94.2	610
	24	1x0.50	0.5	0.33	1.16	89.3	610
	26	7x0.16	0.48	0.33	1.14	150	610
	26	1x0.40	0.4	0.33	1.06	143	610
	28	7x0.12	0.36	0.33	1.02	239	610
	28	1x0.32	0.32	0.33	0.98	227	610
	30	7x0.10	0.3	0.33	0.96	381	610
	30	1x0.254	0.254	0.33	0.914	361	610
UL1577	10	37x0.43	3.01	0.33	3.67	3.546	305
	12	19x0.49	2.45	0.33	3.11	5.64	305
	14	19x0.37	1.85	0.33	2.51	8.96	305
	16	19x0.30	1.5	0.33	2.16	14.6	305
	17	19x0.26	1.3	0.33	1.96	18.3	305
	18	19x0.23	1.15	0.33	1.81	23.2	305
	20	19x0.18	0.9	0.33	1.56	36.7	305
	20	1x0.80	0.8	0.33	1.46	35.2	305
	22	19x0.16	0.8	0.33	1.46	59.4	610
	22	1x0.65	0.65	0.33	1.31	56.4	610
	24	7x0.20	0.6	0.33	1.26	94.2	610
	24	1x0.50	0.5	0.33	1.16	89.3	610
	26	7x0.16	0.48	0.33	1.14	150	610
	26	1x0.40	0.4	0.33	1.06	143	610
	28	7x0.12	0.36	0.33	1.02	239	610
	28	1x0.32	0.32	0.33	0.98	227	610
	30	7x0.10	0.3	0.33	0.96	381	610
	30	1x0.254	0.254	0.33	0.914	361	610
UL1591 / 1592	16	19x0.30	1.5	0.41	2.32	14.6	305
	17	19x0.26	1.3	0.41	2.12	18.3	305
	18	19x0.23	1.15	0.41	1.97	23.2	305
	20	19x0.18	0.9	0.41	1.72	36.7	305
	20	1x0.80	0.8	0.41	1.62	35.2	305
	22	19x0.16	0.8	0.41	1.62	59.4	610
	22	1x0.65	0.65	0.41	1.47	56.4	610
	24	7x0.20	0.6	0.41	1.42	94.2	610
	24	1x0.50	0.5	0.41	1.32	89.3	610
	26	7x0.16	0.48	0.41	1.3	150	610
	26	1x0.40	0.4	0.41	1.22	143	610
	28	7x0.12	0.36	0.41	1.18	239	610
	28	1x0.32	0.32	0.41	1.14	227	610
	30	7x0.10	0.3	0.41	1.12	381	610
	30	1x0.254	0.254	0.41	1.074	361	610
	32	7x0.08	0.24	0.41	1.06	664.8	610
	32	1x0.20	0.2	0.41	1.02	588.3	610
UL1723	16	19x0.30	1.5	0.26	2.02	14.6	305
	17	19x0.26	1.3	0.26	1.82	18.3	305
	18	19x0.23	1.15	0.26	1.67	23.2	305
	20	19x0.18	0.9	0.26	1.42	36.7	305
	20	1x0.80	0.8	0.26	1.32	35.2	305
	22	19x0.16	0.8	0.26	1.32	59.4	610
	22	1x0.65	0.65	0.26	1.17	56.4	610
	24	7x0.20	0.6	0.26	1.12	94.2	610
	24	1x0.50	0.5	0.26	1.02	89.3	610
	26	7x0.16	0.48	0.26	1	150	610
	26	1x0.40	0.4	0.26	0.92	143	610
	28	7x0.12	0.36	0.26	0.88	239	610
	28	1x0.32	0.32	0.26	0.84	227	610
	30	7x0.10	0.3	0.26	0.82	381	610
	30	1x0.254	0.254	0.26	0.774	361	610
	32	7x0.08	0.24	0.26	0.76	664.8	610
	32	1x0.20	0.2	0.26	0.72	588.3	610
UL1901	10	37x0.43	3.01	0.36	3.73	3.546	305
	12	19x0.49	2.45	0.36	3.17	5.64	305
	14	19x0.37	1.85	0.36	2.57	8.96	305
	16	19x0.30	1.5	0.36	2.22	14.6	305
	17	19x0.26	1.3	0.36	2.02	18.3	305
	18	19x0.23	1.15	0.36	1.87	23.2	305
	20	19x0.18	0.9	0.36	1.62	37.7	305
		1x0.80	0.8	0.36	1.52	35.2	305
	22	19x0.16	0.8	0.36	1.52	59.4	610
		1x0.65	0.65	0.36	1.37	56.4	610
	24	7x0.20	0.6	0.36	1.32	94.2	610
		1x0.50	0.5	0.36	1.22	89.3	610
	26	7x0.16	0.48	0.36	1.2	150	610
		1x0.40	0.4	0.36	1.12	143	610
	28	7x0.12	0.36	0.36	1.08	239	610
		1x0.32	0.32	0.36	1.04	227	610
	30	7x0.10	0.3	0.36	1.02	381	610
		1x0.254	0.254	0.36	0.974	361	610
