German Standard Automotive Cable--FHL2GBC2G Custom
  • German Standard Automotive Cable--FHL2GBC2G
  • German Standard Automotive Cable--FHL2GBC2G

German Standard Automotive Cable--FHL2GBC2G

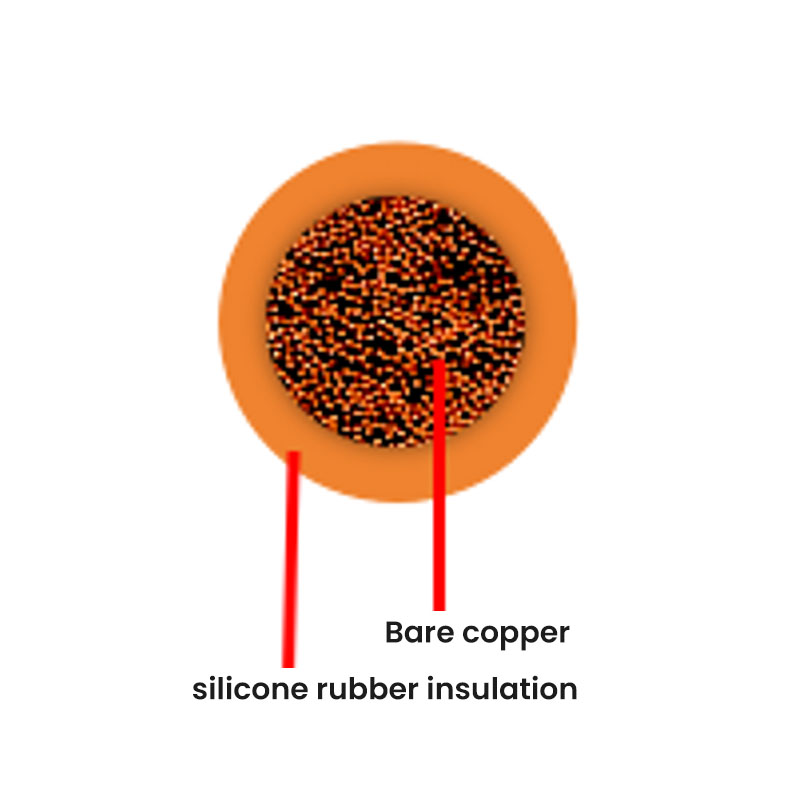

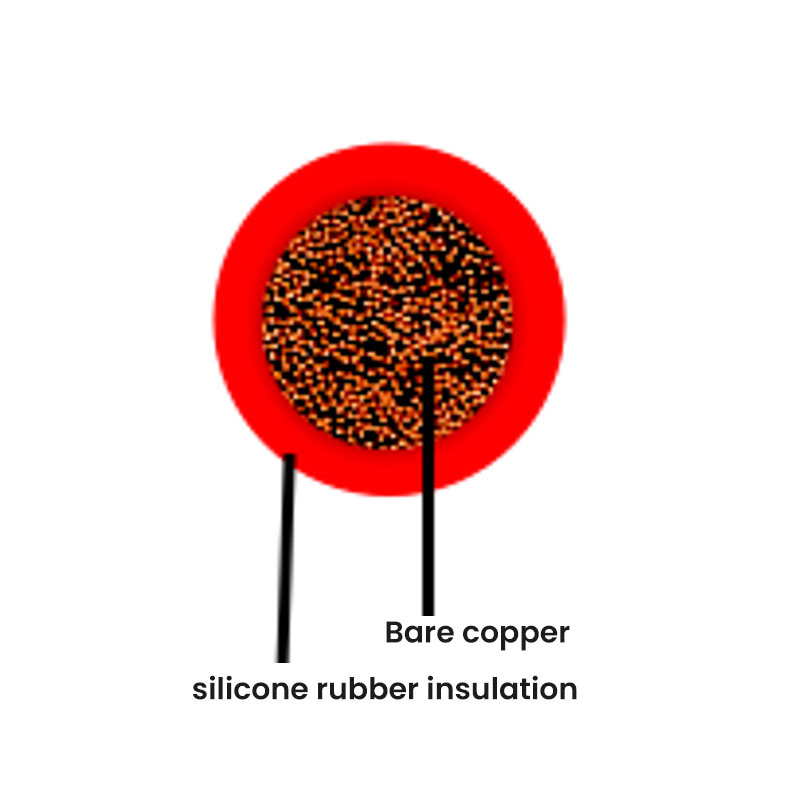

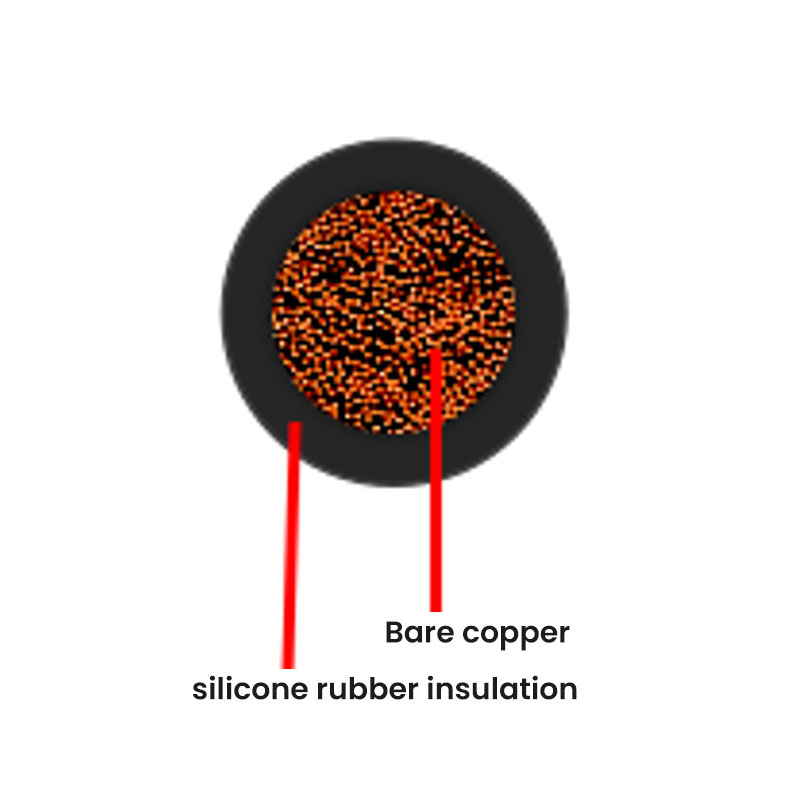

Manufacturing Process:
Conductor: Bare copper wire, tinned copper wire
Insulation: Silicone Rubber Insulation
Shield: Tinned copper wire braid
Wrapping: Aluminum-plastic tape
Jacket: Silicone rubber jacket
Temperature Range:–40°C ~ +200°C
Standard: ISO 19642 Class F
Rated Voltage: AC 1000V / DC 1500V
Environmental Requirements: Compliant with RoHS and REACH
Reference Standard: ISO 19642、LV216

Applications:
Highly flexible, resistant to high and low temperatures, flame retardant and safe. Suitable for EV high-temperature enclosures and high-current high-voltage connection wiring.

Inquiry Now
  • Model Spec. (mm²) No. of Cores Conductor Structure (mm) Insulation Min. Thickness (mm) Conductor Outer Diameter (mm) Insulation Range (mm) - Min Insulation Range (mm) - Max Tinned Copper Braid Max Diameter (mm) Sheath Design Thickness (mm) Sheath Range (mm) - Min Sheath Range (mm) - Max 20°C Conductor DC Resistance Max (Ω/km) - Bare Copper 20°C Conductor DC Resistance Max (Ω/km) - Tinned Copper 20°C Conductor DC Resistance Max (Ω/km) - Nickel-Plated Copper
    FHL2X/91X 1.5 1 30/0.25 0.48 2.89 2.7 3 0.13 0.9 4.9 5.3 12.7 13 13.2
    FHL2X/91X 2 1 40/0.25 0.48 3.18 3 3.3 0.13 0.9 5.2 5.6 9.42 9.69 9.82
    FHL2X/91X 2.5 1 50/0.25 0.56 3.54 3.3 3.6 0.13 1 5.5 6.1 7.6 7.82 7.92
    FHL2X/91X 3 1 44/0.30 0.56 3.89 3.8 4.1 0.16 1 6.1 6.7 6.15 6.39 6.41
    FHL2X/91X 4 1 56/0.30 0.64 4.39 4 4.4 0.16 1.1 6.6 7.2 4.71 4.85 4.91
    FHL2X/91X 5 1 70/0.30 0.64 4.69 4.5 4.9 0.16 1.1 7.1 7.7 3.94 4.02 4.11
    FHL2X/91X 6 1 84/0.30 0.64 4.97 4.6 5 0.16 1.1 7.2 7.8 3.14 3.23 3.27
    FHL2X/91X 8 1 112/0.30 0.8 6.02 5 5.9 0.19 1.2 8.5 9.1 2.38 2.52 2.6
    FHL2X/91X 10 1 322/0.20 0.8 6.46 5.9 6.5 0.19 1.2 9.1 9.7 1.82 1.85 1.9
    FHL2X/91X 12 1 385/0.20 0.8 7.12 6.6 7.4 0.19 1.3 10.2 10.8 1.52 1.6 1.66
    FHL2X/91X 16 1 511/0.20 0.88 8.04 7.7 8.3 0.19 1.3 11.1 11.7 1.16 1.18 1.21
    FHL2X/91X 20 1 646/0.20 1.04 9.16 8.1 9.1 0.19 1.4 12.1 12.7 0.955 0.999 1.03
    FHL2X/91X 25 1 798/0.20 1.04 9.85 9.4 10.4 0.21 1.4 13.4 14 0.743 0.757 0.774
    FHL2X/91X 30 1 950/0.20 1.04 10.5 9.7 10.9 0.21 1.5 14.1 14.7 0.647 0.684 0.706
    FHL2X/91X 35 1 1121/0.20 1.12 11.34 9.6 11.6 0.21 1.5 14.8 15.4 0.527 0.538 0.549
    FHL2X/91X 40 1 1273/0.20 1.2 12.09 11.2 12.4 0.21 1.5 15.6 16.2 0.473 0.5 0.516
    FHL2X/91X 50 1 1596/0.20 1.2 13.15 11.5 13.5 0.21 1.6 16.7 17.5 0.368 0.375 0.383
    FHL2X/91X 60 1 1924/0.20 1.2 14.06 13.4 14.6 0.21 1.6 17.8 18.6 0.315 0.333 0.344
    FHL2X/91X 70 1 2220/0.20 1.28 15.08 13.5 15.5 0.21 1.6 18.9 19.7 0.259 0.264 0.27
    FHL2X/91X 85 1 2701/0.20 1.28 16.41 14.8 16.8 0.26 1.7 20.4 21.2 0.219 0.225 0.228
    FHL2X/91X 95 1 3034/0.20 1.28 17.17 16 18 0.26 1.7 21.6 22.4 0.196 0.2 0.204
    FHL2X/91X 120 1 3811/0.20 1.28 19.06 17.7 19.7 0.26 1.7 23.3 24.1 0.153 0.156 0.159
